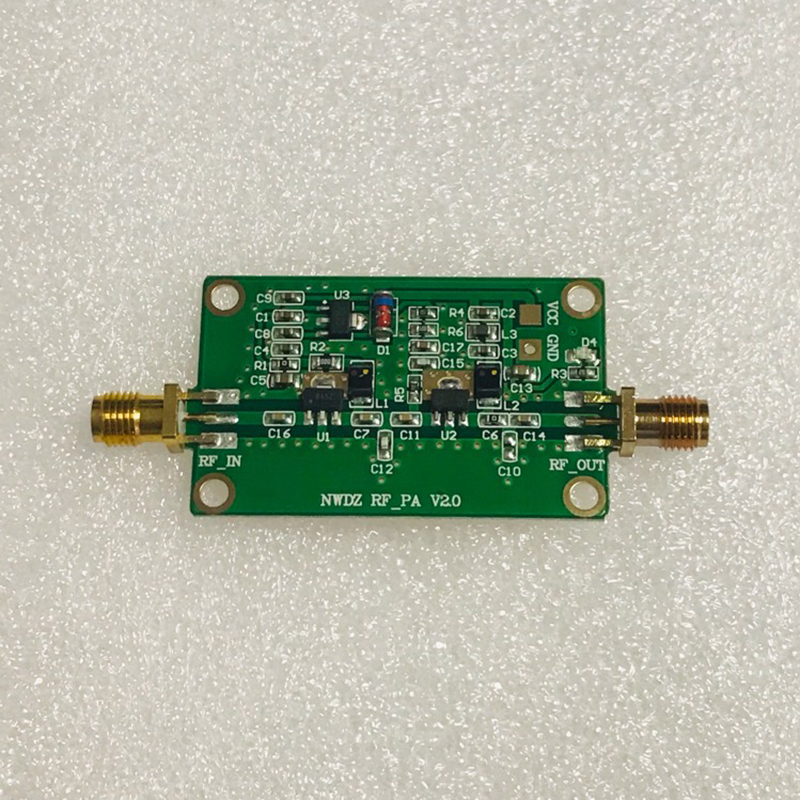

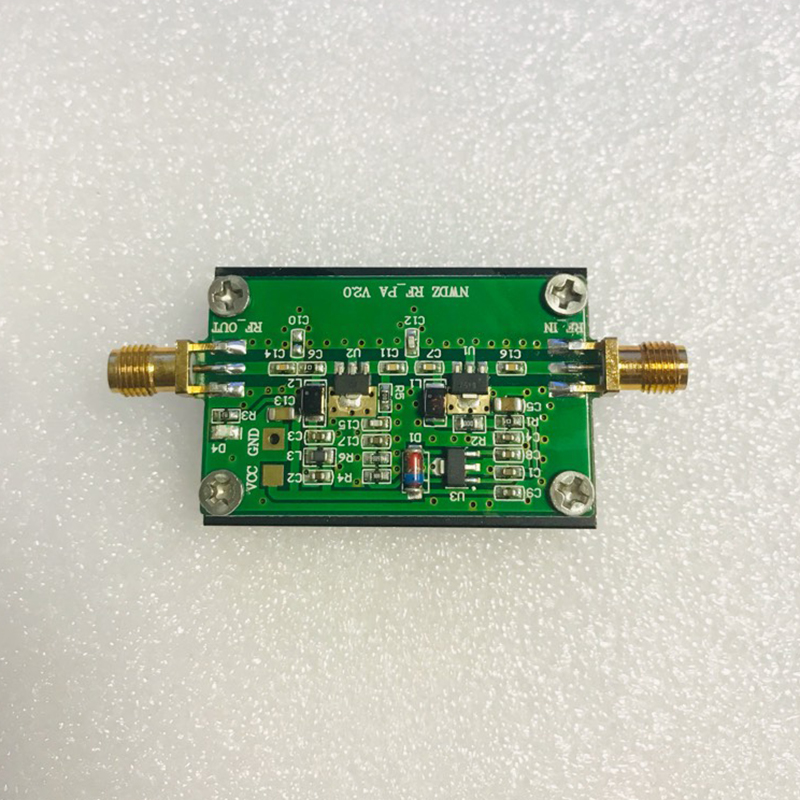

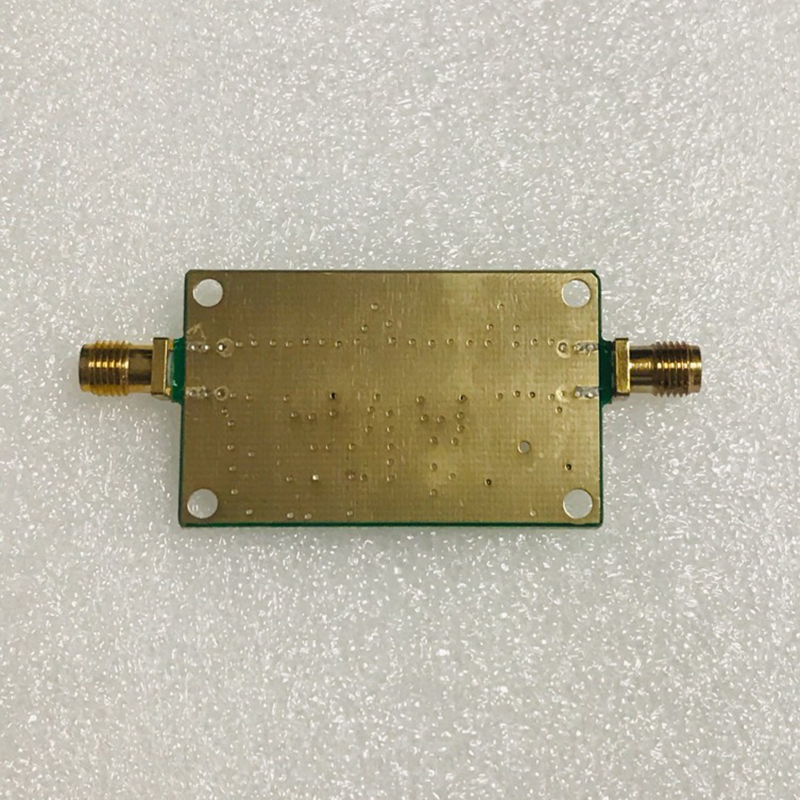

RF AmplifierBoard 2MHz-700MHZ Broadband 3W HF VHF UHF FM Transmitter RF Power Amplifier broadband amplifier For Radio

1、 Product application:

Broadband RF power amplification, suitable for various radio applications such as HF FM VHF UHF frequency modulation transmission, shortwave frequency modulation remote control toy wireless walkie talkies, data transmission radios, etc. It can output a maximum of 3 watts, powered by 15V voltage, and can operate in the frequency range of 2MHz to 700MHz.



2、 Technical indicators

1. Power supply voltage: DC+12-15V (typical 15V @ 0.3-0.5A) solder pad interface



2. Working frequency Freq: 2MHZ-700MHz, input/output impedance: SMA@50 Ohms;



3. Maximum output power: 34.8dbm (3W)



4. Typical power gain Gain: 35 dB (>300M gain slightly decreases)



5. Maximum input power:<+10dBm



6. Module size: length * width * height 46 * 32 * 15mm

3、 Actual power indicators

2-300M+34dBm maximum 3W

300-500M>+32dBm



Attention: RF power amplifiers are vulnerable components, so be sure to connect the input and output properly and pay attention to impedance matching before conducting a power on test



Weight: 50 grams
