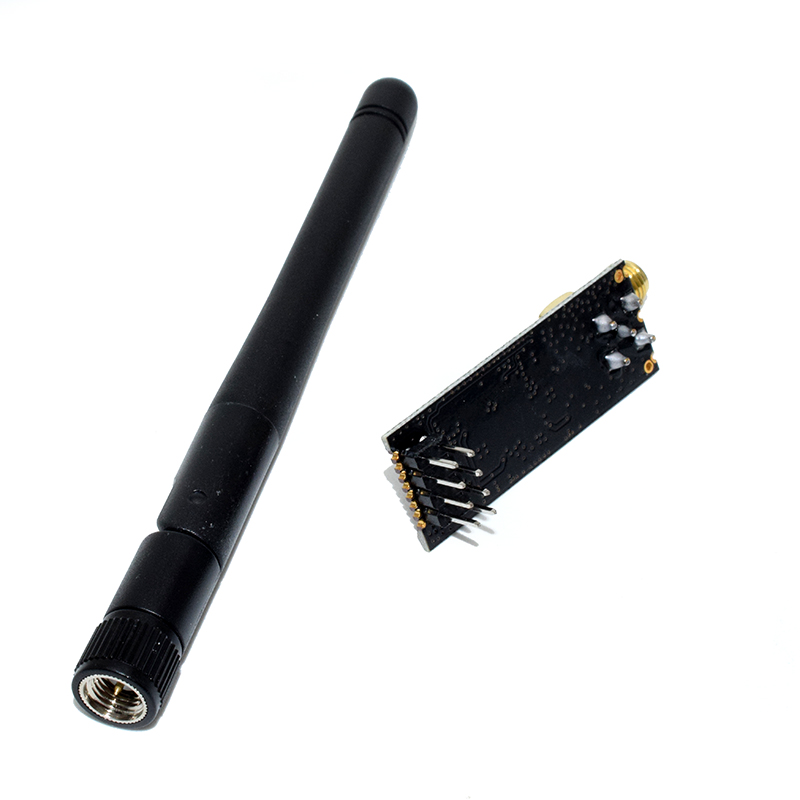

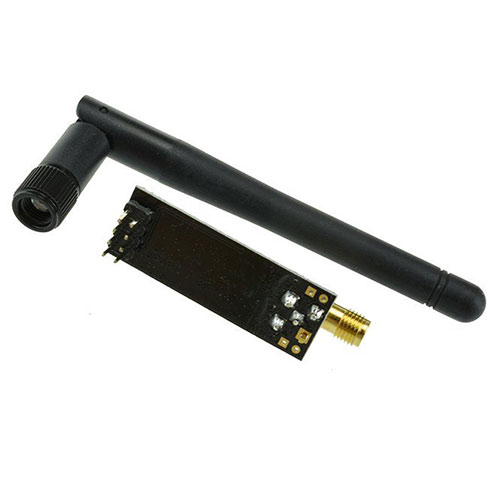

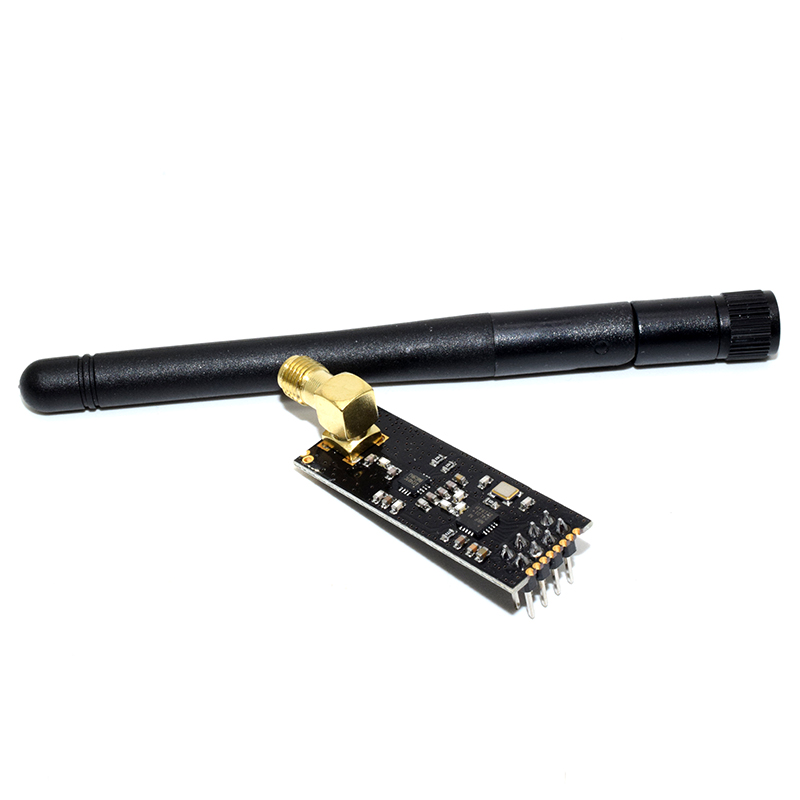

Description: NRF24L01P + PA + LNA Division I for the ultra-long-distance data transmission specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free,can be point-to-point applications, can also be composed of a star network, NRF24L01P + PA + LNA wireless module core latest high-performance wireless Digital transmission chip NRF24L01 +, with the Professional Design full two-way RF power amplifier, high power PA and LNA chip, RF switches, bandpass filters, etc., makes effective communication distance greatly increased. After lot of optimization matching debugging, the emission efficiency can achieve the highest harmonic minimum. As a result NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches a minimum, while not susceptible to interference from other devices. NRF24L01P + PA + LNA wireless module integration is extremely high, the size of only 41 * 15.5 mm , convenient for embedded applications. In any tight space products, customers can add an MCU through the SPI port to control NRF24L01P + PA + LNA. Wireless module to complete the design of ultra-long-range wireless data transmission system completely eliminates the need for the RF part of the R & D.
