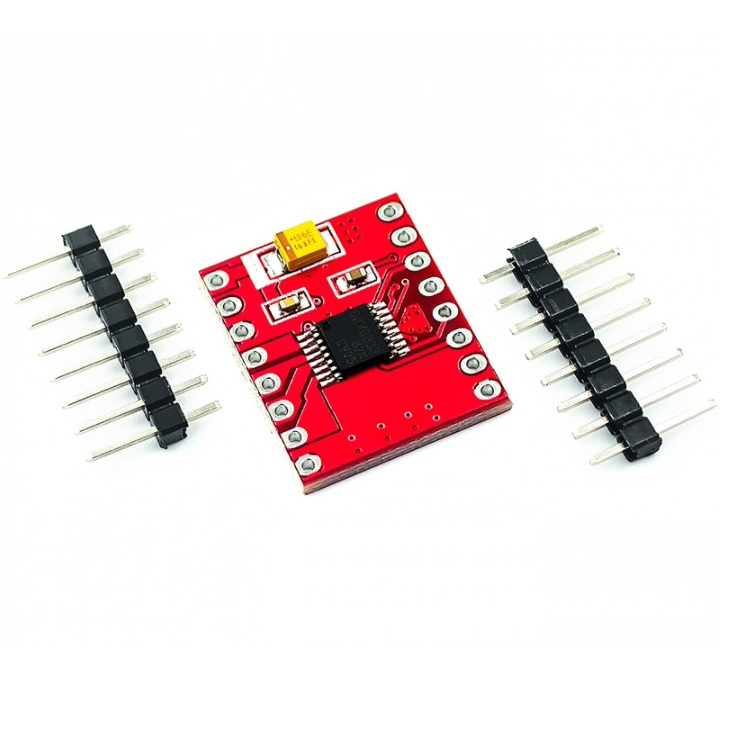

1A DRV8833 Dual Motor Driver Module Full-bridge Driver

product description
The motor driver can control up to two DC motors at a constant current of 1.0A (4A peak). Two input signals (IN1 and IN2) can be used to control one of the four functional modes of the motor - clockwise, counterclockwise, short-time braking and stopping. The two motor outputs (A and B) can be individually controlled, and the speed of each motor is controlled by the PWM input signal at frequencies up to 100kHz
Features: Driver IC: DRV8833 Supply Voltage: VM = 2.7-10.8V Output Current: Iout = 1.0A (Average) / 4A (Peak) Standby Control Power Saving CW / CCW / Short Circuit Brake / Stop Motor Control Mode Built-in Thermal Shutdown Circuit And Low-Voltage Detector All pins on the DRV8833 can be separated into 2.54mm pitch pins and can be inserted into breadboards. Filter capacitors on both power lines for DIY and smart car projects

Size and weight
Size: 0.71 inches x 0.59 inches x 0.16 inches
Weight: 0.04 oz
