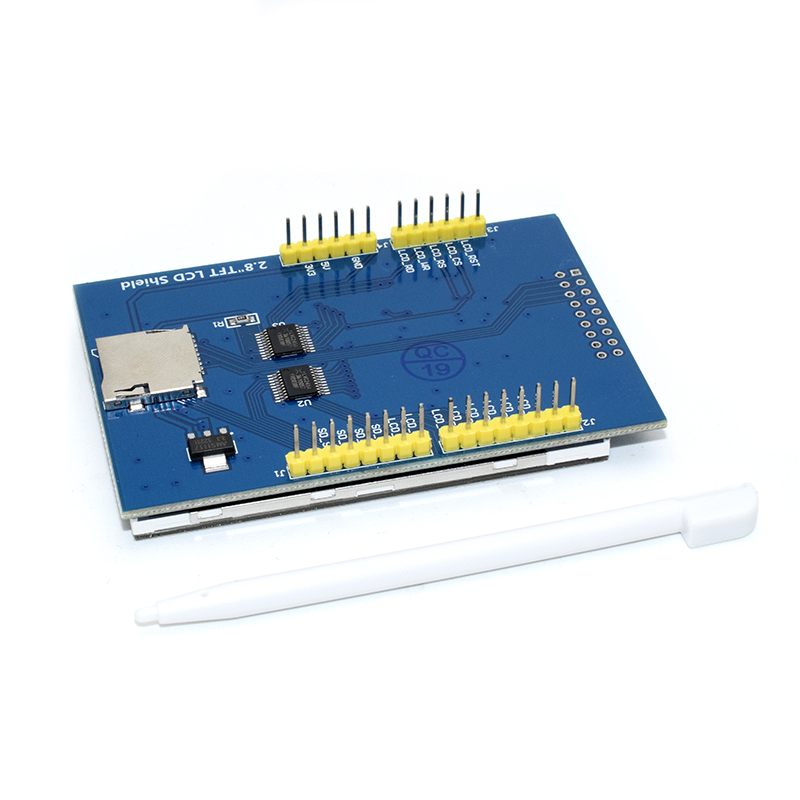

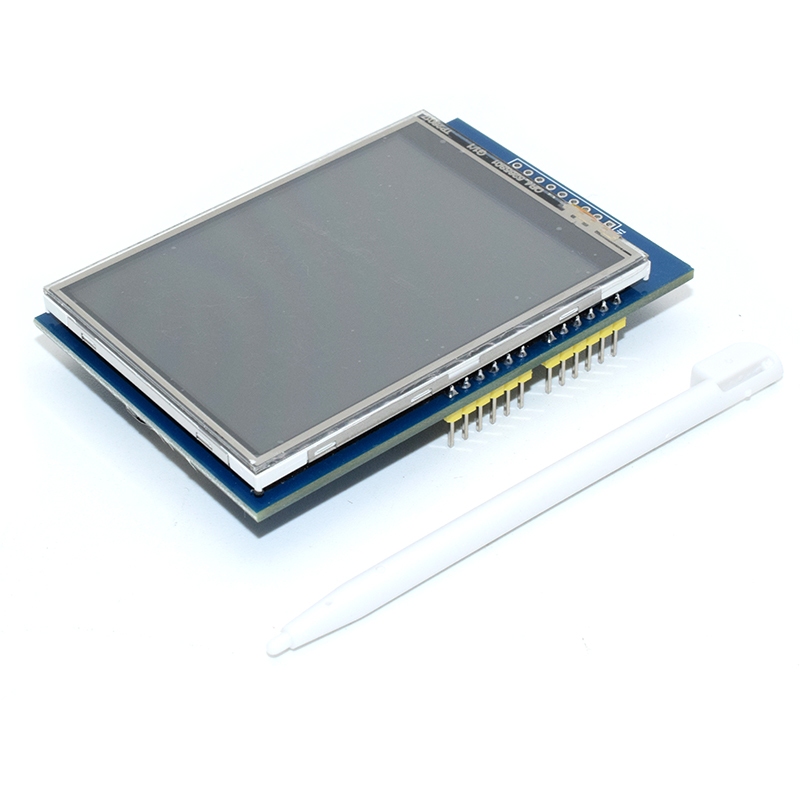

2.8 Inch TFT LCD Shield Touch Display Module For Arduino UNO

1199:viewed

US$5.40

(9990 Pieces available)

Hot Products

Product Description

Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
320X240 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support

Name	Parameter
Display Color	RGB 65K color
SKU	MAR2808
Screen Size	2.8(inch)
Type	TFT
Driver IC	ILI9341
Resolution	320*240 (Pixel)
Module Interface	8-bit parallel interface
Active Area	43.2*57.6(mm)
Module PCB Size	52.70*78.22(mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Product Weight(Package containing)	44(g)

Number	Pin Label	Pin Description
1	LCD_RST	LCD bus reset signal, low level reset
2	LCD_CS	LCD bus chip select signal, low level enable
3	LCD_RS	LCD bus command / data selection signal, low level: command, high level: data
4	LCD_WR	LCD bus write signal
5	LCD_RD	LCD bus read signal
6	GND	Power ground
7	5V	5V power input
8	3V3	3.3V power input, this pin can be disconnected
9	LCD_D0	LCD 8-bit data Bit0
10	LCD_D1	LCD 8-bit data Bit1
11	LCD_D2	LCD 8-bit data Bit2
12	LCD_D3	LCD 8-bit data Bit3
13	LCD_D4	LCD 8-bit data Bit4
14	LCD_D5	LCD 8-bit data Bit5
15	LCD_D6	LCD 8-bit data Bit6
16	LCD_D7	LCD 8-bit data Bit7
17	SD_SS	SD card SPI bus chip select signal, low level enable
18	SD_DI	SD card SPI bus MOSI signal
19	SD_DO	SD card SPI bus MISO signal
20	SD_SCK	SD card SPI bus clock signal
