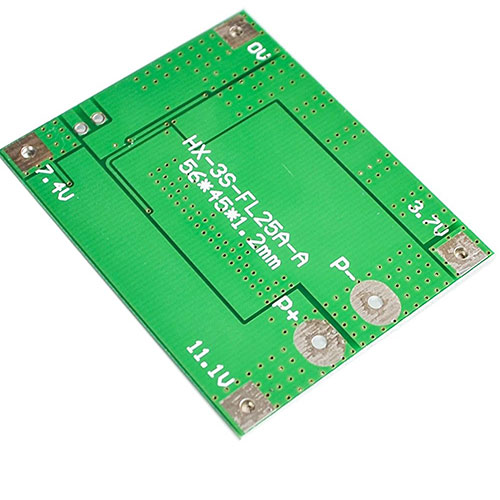

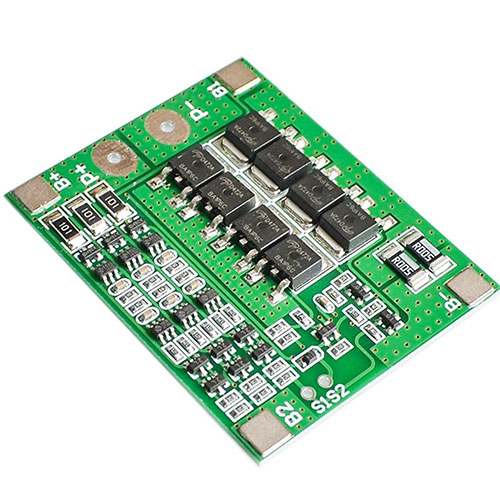

Size: about 56mm*45mm*1.2mm Over voltage range: 4.25-4.35v±0.05v Over discharge voltage range: 2.3-3.0v±0.05v Maximum operating current: 0-25A Maximum transient current: 34-40A Quiescent current: less than 30uA Internal resistance: less than 100mΩ Working temperature: -40~+50°C Storage condition: -40~ +80°C Effective life: more than30000h Short circuit protection: Yes, delayed self recovery Note: Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully. Please allow 1-5mm differs due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same Package Included: 1Pcs X PCB Protection Board
