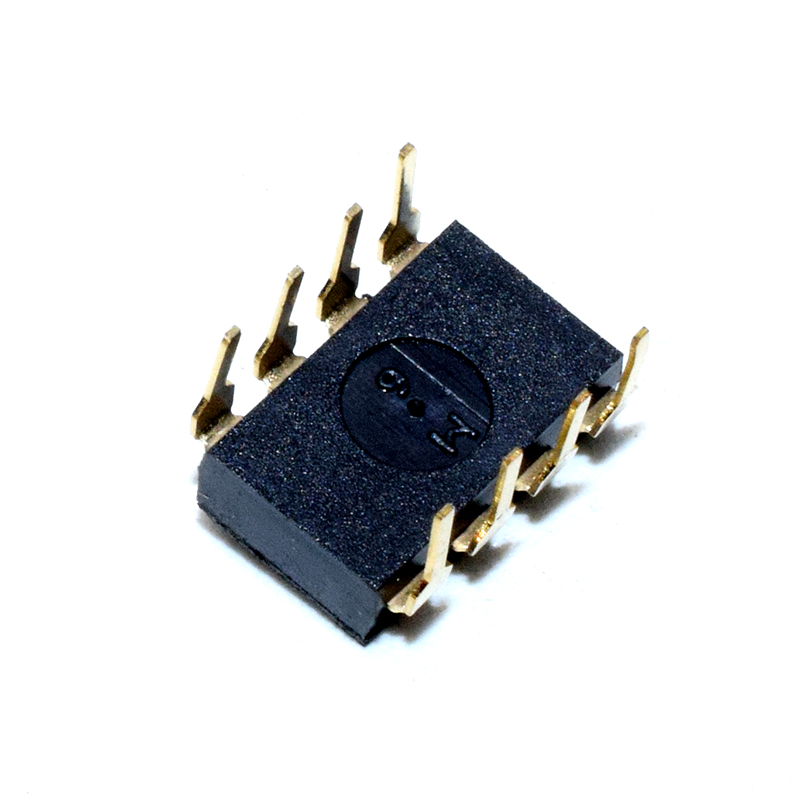

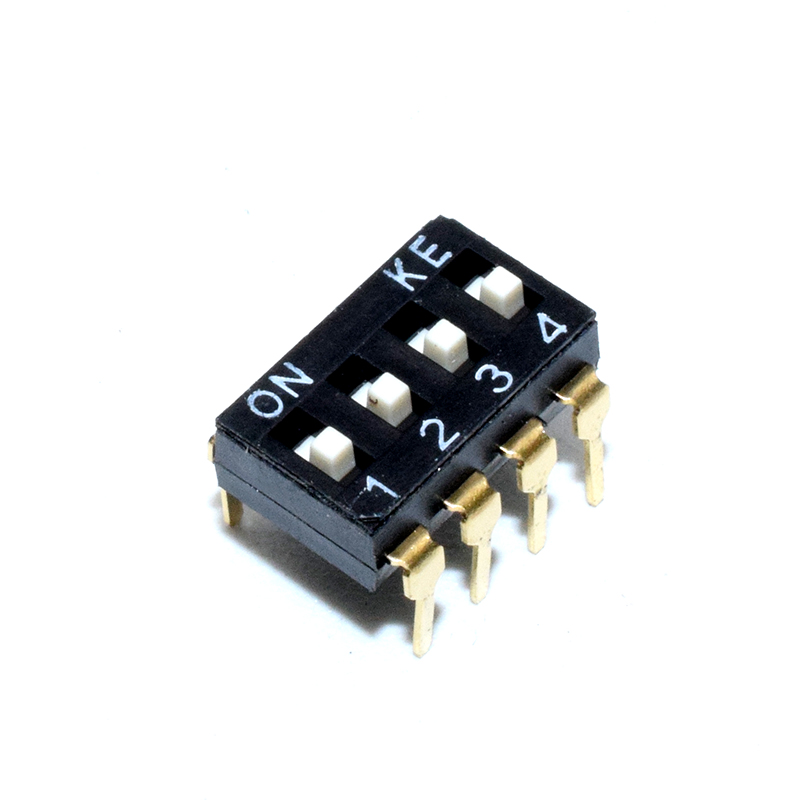

4 Position Code Switch

product information
Mechanical behavior
1, operating force: one-touch switch ≤ 8N2
, Mechanical life: ≥2000 operation
3, dial itinerary: 1mm
4. Vibration: Every GJB360A-96
5, the working temperature: -25 ℃ ~ +70 ℃
6, storage temperature: -40 ℃ ~ +85 ℃
7, solderability: the flux 230 ± 5 ℃ 5 ± 0.5 seconds, 95% coverage
8, resistance to welding heat: 260 ± 5 ℃, sustained 5 ± 1 seconds
Electrical characteristics
1, the switch (usually switch): 25 mA 24VDC
2, the switch (switch rarely switch): 100mA 50VDC
3, contact resistance (initial value): ≤ 50mΩ
4, contact resistance (after testing): ≤ 100mΩ5
, Insulation resistance: 500VDC ≥ 1000MΩ6
, Compressive strength: 500VDC 60 seconds
1mA 7, the use of capacitor electrodes: ≤ 5pF
