503 3590S-2-503L 50K Precision Multi-turn Wirewound Potentiometer 3590S 503 Adjustable Resistor

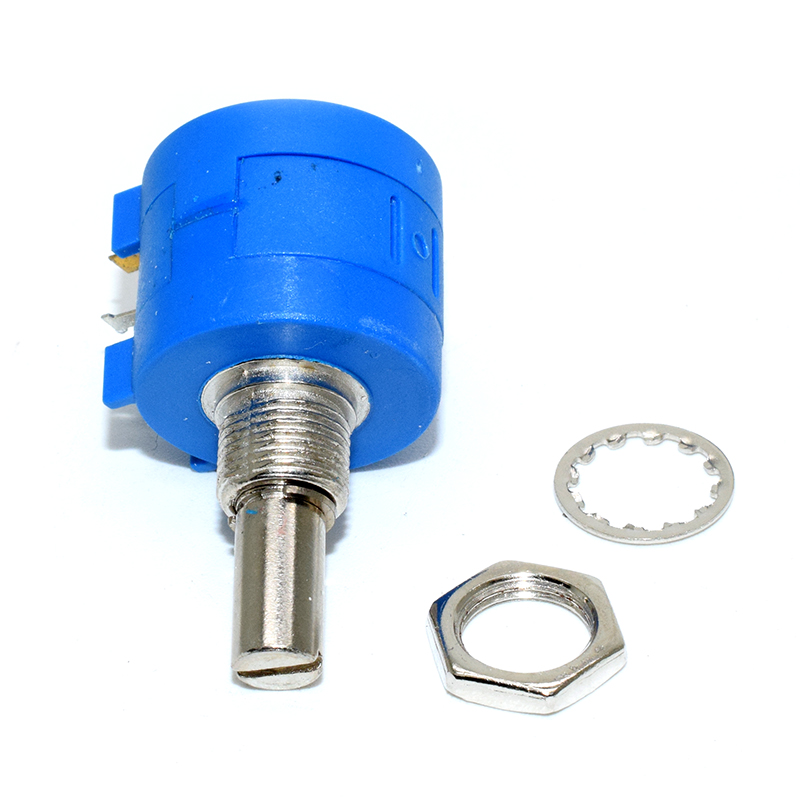

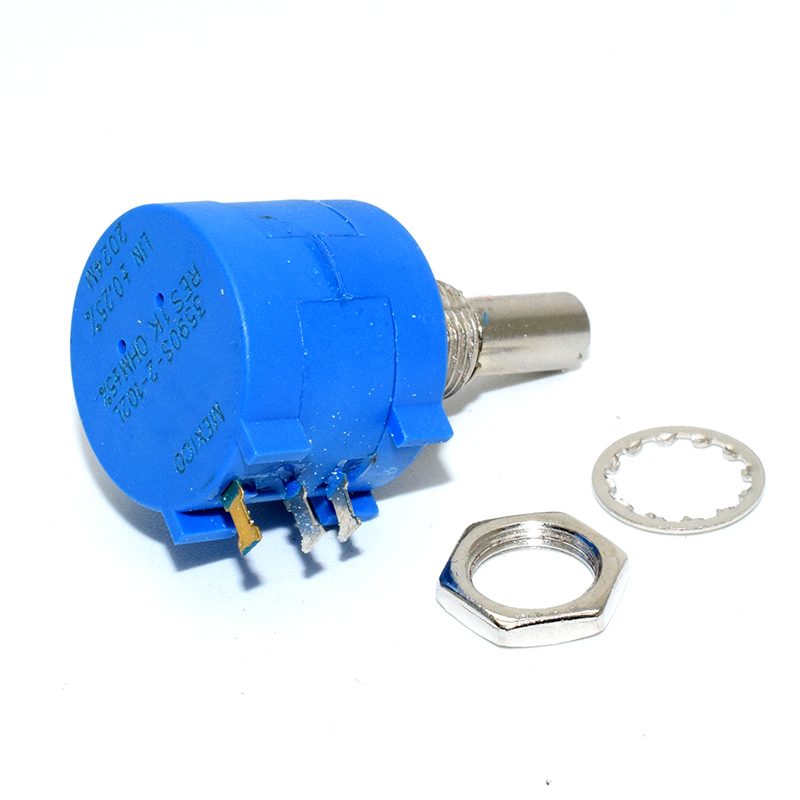

3590S-2-503L 50K Ohm Rotary Precision Multi Turn Potentiometer
Feature:
Model:3590S-2-503L
Standard resistance range:50K ohm.
Resistance Tolerance: ± 5%.
Independent Linearity: ± 0.25%
Power: 2W
Effective electronic angle: 3600 ° + 10 ° -0 °
Operating temperature range: + 1 ℃ ----- + 125 ℃,
Storage temperature: -55 ℃ ----- + 125 ℃
Rotational Life: 1,000,000 turn;
Load Life: 1000 hours
Size:
Total Length: 39mm
Body Length: 18.7mm
Diameter: 21.8mm
Diameter of axle: 6.2mm
