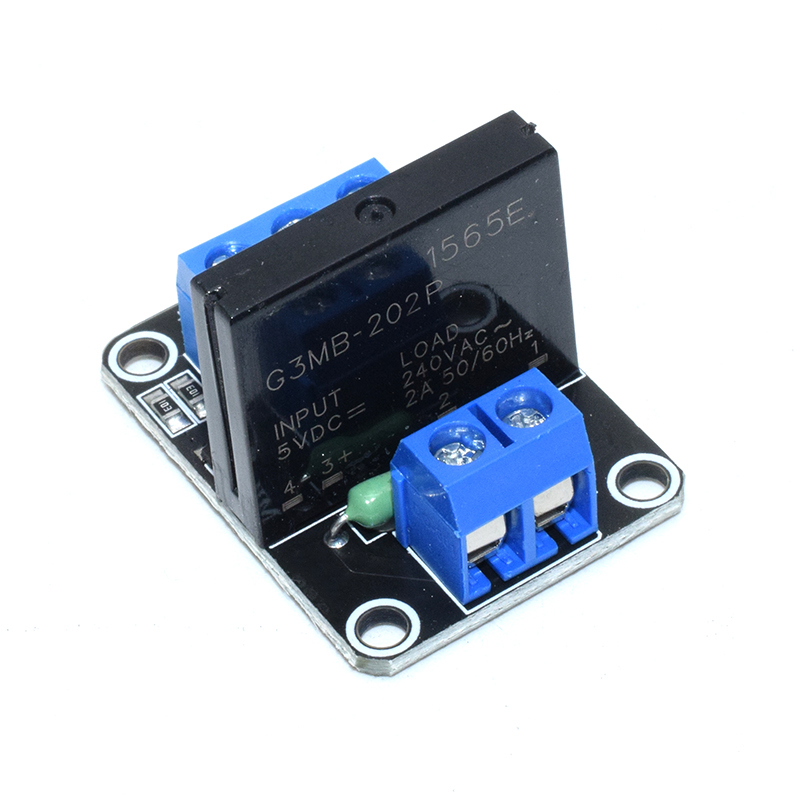

5V 1 Channel SSR Solid-State Relay Low Level Trigger With fuse Stable 240V 2A

product description 5V Low Level Triggered Solid State Relays with Resistor Fuses Output (240V 2A) This is a 1-channel solid state relay board that can be used with Arduino, AVR, PIC, ARM, PLC, etc. A variety of microcontrollers to control. With blue KF301 terminal, more convenient control line Standard interface can be connected with the microcontroller Solid State Relay Module Product Description 1-way solid state relay board can be directly controlled by Arduino, AVR, PIC, ARM, PLC and other microcontrollers. Features: 5V low trigger solid state relay, with resistance fuses (240V 2A). It is a single-channel solid state relay board that can be controlled by a variety of microcontrollers such as Arduino, AVR, PIC, ARM, PLC. The standard interface can be connected with the microcontroller. specification: Working voltage: 5V DC (160mA) Channel: 1 channel Size: approx. 25 * 34 * 25mm / 1.0 * 1.3 * 1.0in Weight: Approx.13g / 0.5oz Input control signal voltage: (0-1.5V state low relay ON) (2.5-5V state high relay OFF) Voltage and current: 12.5mA Trigger voltage: 0-1.5V Trigger current: 2mA Quiescent current: 0mA Module Interface: DC +: Connected to the positive supply (powered by relay voltage) DC-: Connect to a negative power supply CH: Relay Module Signal Trigger End (Active Low) Note: The power supply must be DC voltage and the voltage must be the same as the relay voltage. product information Package size 3.5 × 2.9 × 1 inch Product weight 0.64 ounces
