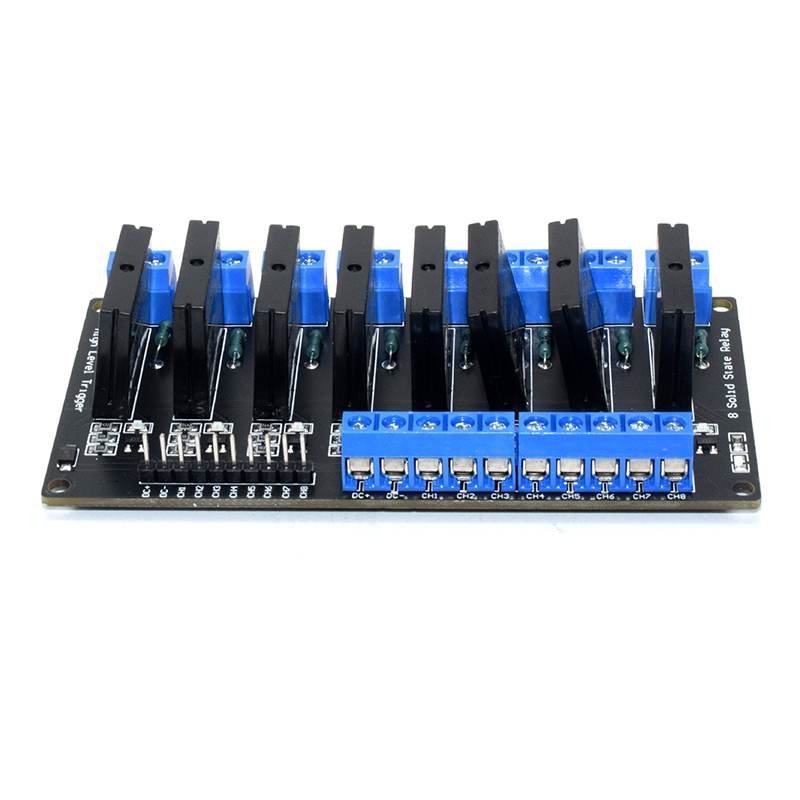

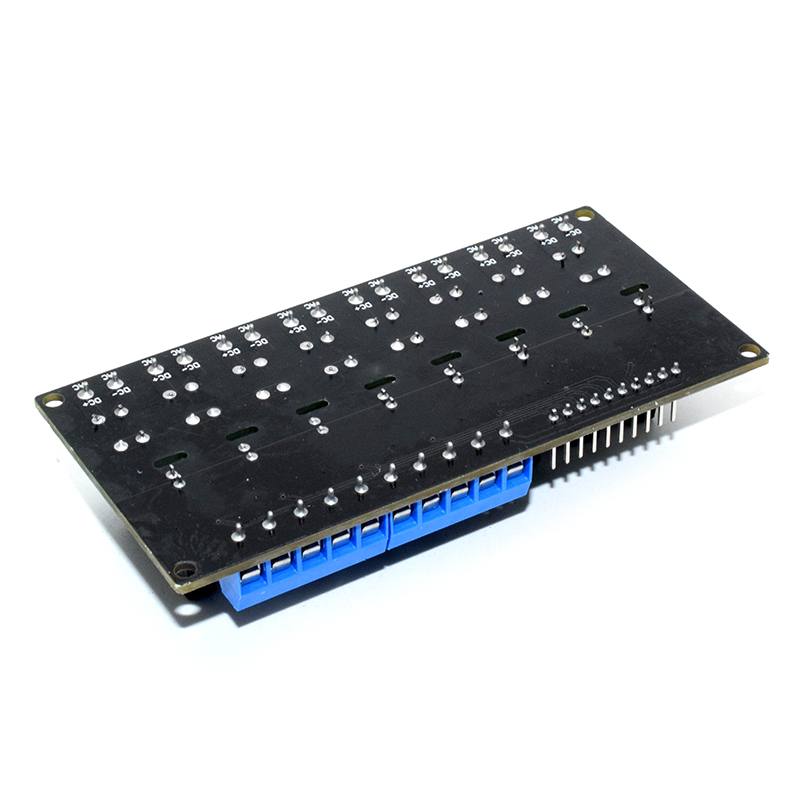

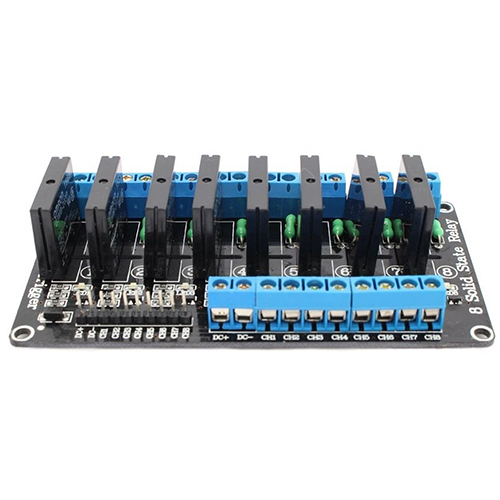

5V 8 Channel SSR Solid-State Relay Low Level Trigger With fuse Stable 240V 2A

Product features 5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A. Size: 106 * 56 * 25 (L * W * H) The input power supply: 5V DC (160MA) The input control signal voltage: Led indicator for each relay Description: 1. 5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A. 2. Size: 106 * 56 * 25 (L * W * H) 3, the input power supply: 5V DC (160MA) 4, the input control signal voltage: 5, 2.54CM pin and blue KF301 terminals connected to the control line is more convenient. Module interface: Input section: DC +: positive power supply (by relay voltage power supply) DC-: connect power negative CH1: 1 signal to trigger the end of the relay module (high level trigger valid) CH2: 2-way relay module signal triggering end (high level trigger valid) CH3: 3 relay module signal triggering end (high level trigger valid) CH4: 4-channel relay module signal triggering end (high level trigger valid) CH5: 5-way relay module signal triggering end (high level trigger valid) CH6: 6-way relay module signal triggering end (high level trigger valid) CH7: 7-way relay module signal triggering end (high level trigger valid) CH8: 8-channel relay module signal triggering end (high level trigger valid) Voltage version quiescent current working current trigger voltage trigger current 1 channel 5V 0mA 13.8mA 2.5-5V 2mA 2-way 5V 0mA 26.8mA 2.5-5V 2mA 3-way 5V 0mA 37mA 2.5-5V 2mA 4 5V 0mA 48mA 2.5-5V 2mA 5-way 5V 0mA 59mA 2.5-5V 2mA 6-way 5V 0mA 70mA 2.5-5V 2mA 7 Road 5V 0mA 81mA 2.5-5V 2mA 8 5V 0mA 90mA 2.5-5V 2mA Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
