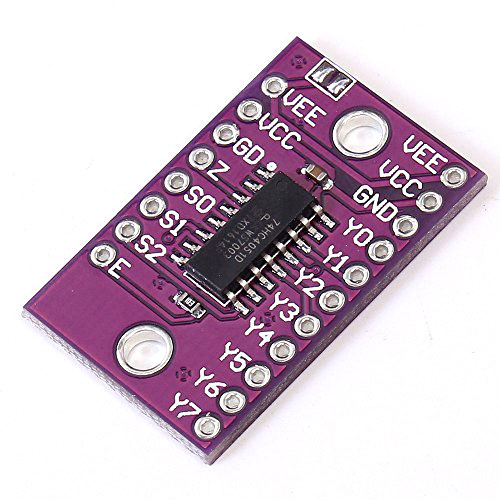

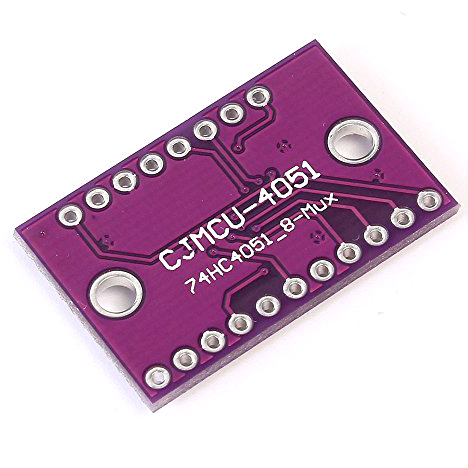

8 Channel Analog Multiplexer Module 4051 74HC4051

product description description: The 74HCT4051 is a SPDT analog switch (SP8T) suitable for use For analog or digital 8: 1 multiplexer / demultiplexer applications. The switch has Three digital selection inputs (S0, S1 and S2), eight independent input / output (Yn), one Public Input / Output (Z) and a digital enable input (E). When E is high, the switch shut down. Input includes clamp diode. This enables the use of current limiting resistors To connect the input interface to voltages in excess of VCC. characteristic: -5 V to +5 V wide analog input voltage range Meet the JEDEC standard number. 7A Low on-resistance: VCC = VEE = 4.5 V. (Typ) 70Ω (Typ) at VCC = VEE = 6.0 V 60 ohms at VCC (typical) - VEE = 9.0 V. Logic Level Translation: Enables 5 V logic to communicate with ± 5 V analog signals Typical "before break" built-in ESD protection: HBM JESD22-A114F exceeds 2000V MM JESD22 -A115-A exceeds 200 V CDM JESD22-C101E over 1000V A variety of package options -40 ° C to + 85 ° C and -40 ° C to + 125 ° C Package includes: 1 4051 74HC4051 8-channel analog multiplexer module
