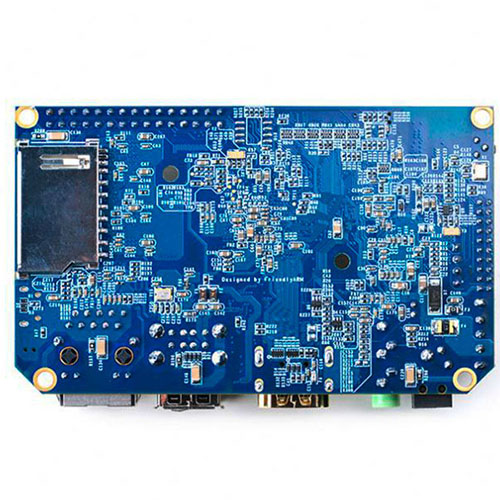

A9 quad-core PC card NanoPC-T2 onboard WiFi Bluetooth 4418 Ubuntu development board Andrews 5

Introduction Power Management Unit: AXP228 PMU, supports software shutdown and wake-up. System memory: 1GB 32bit DDR3 RAM eMMC: 8GB Storage: 1 SD card slot Ethernet: Gbps Ethernet port (RTL8211E) with a unique MAC WiFi: 802.11b / g / n Bluetooth: 4.0 dual mode Antenna: porcelain antenna IPX interface Video Input: DVP Camera / MIPI-CSI (two camera interfaces) Video Output: HDMI Type-A / LVDS / LCD / MIPI DSI (Quad Video Output Interface) Audio: 3.5 mm audio jack / via HDMI Microphone: 1 x onboard microphone USB: 4 x USB 2.0 host, two standard Type A ports and two 2.54 mm pitch needles MicroUSB: 1 MicroUSB 2.0 client, Type A. LCD Interface: 0.5mm pitch 45-pin FPC Block, full-color RGB 8-8-8 HDMI: 1.4A Type A, 1080P DVP camera: 0.5mm pitch 24-pin FPC holder GPIO: 2.54mm pitch 30-pin Serial debug port: 2.54 mm pitch 4pin plug Indicators: 1 power indicator, 2 GPIO indicator User keys: 1 K1 (power), 1 reset Other Resources: 1 on-board thermistor RTC Battery: RTC Seat Foot Power: DC 5V / 2A Heatsink: 1 x heat sink with mounting holes PCB: six layers, ENIG PCB size: 100 mm x 60 mm Operating System / Software: u-boot, Android 4.4, Android 5.1 and Debian 8
