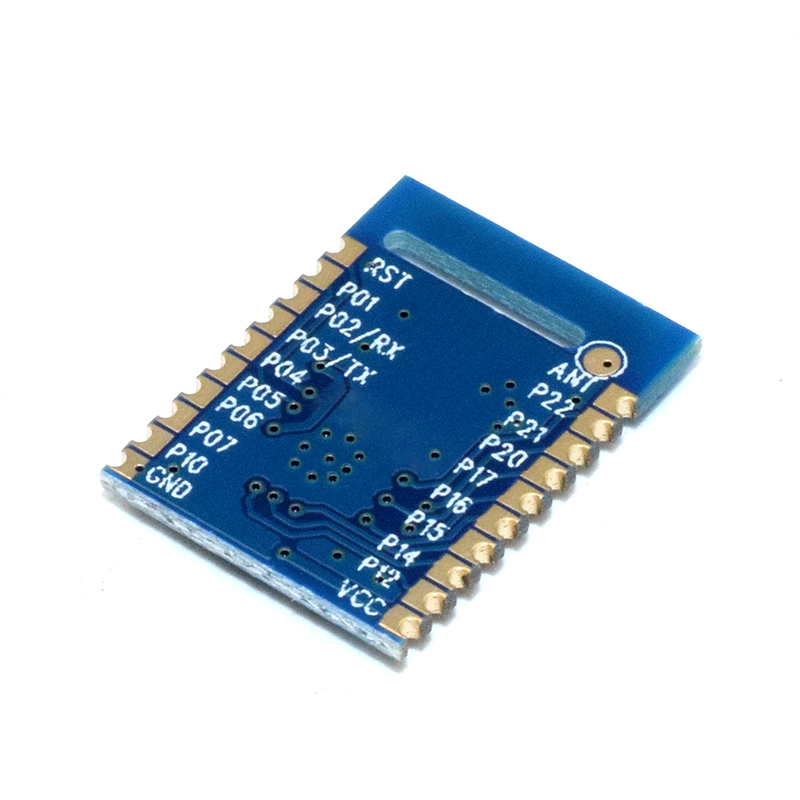

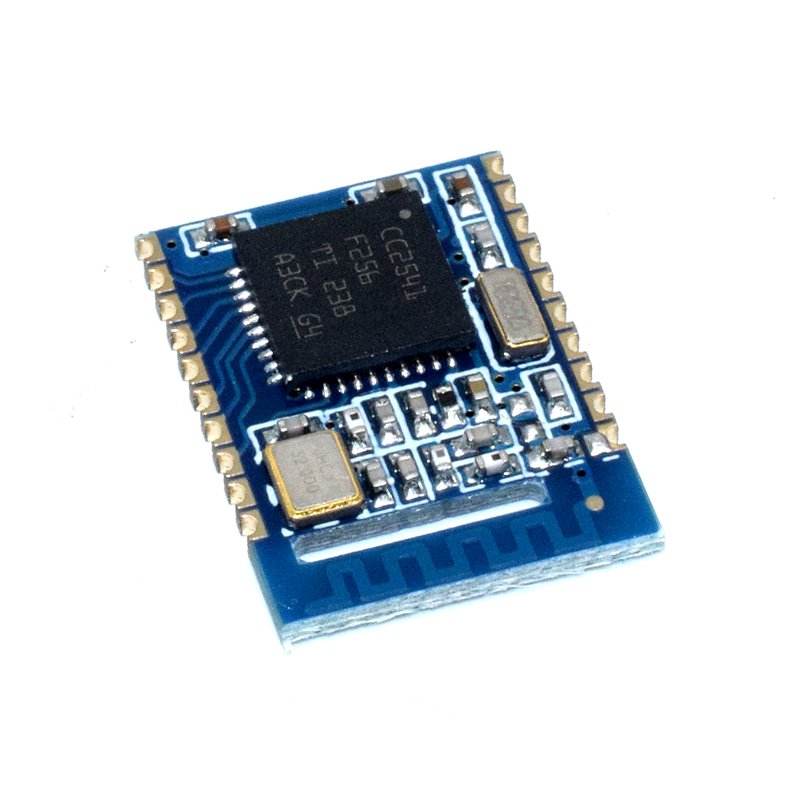

Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm
  • Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm
  • Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm
  • Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm

Bluetooth 4.0 BLE Low Energy/Power RF Master-Slave SOC Smart Hardware Serial Transceiver Module 2.4GHz Bridge/Direct-driven Mode - CC2540 iBeacon - 15.1*11.2*2.5mm

  • SKU: 13D011
  • Shipping Weight: 1.8g
828:viewed
US$3.60
  (9980 Pieces available)
Add to Wishlist
Hot Products
ETH01-EVO onboard ESP32-C3 development board with Ethernet WIFI Bluetooth three in one IoT gateway
BT-24 Bluetooth 5.0 module / BLE5.0 high-speed transparent serial wireless module/low power consumption instead of CC2541
Wireless Bluetooth 5.0 Receiver Transmitter Adapter 3.5mm Jack For Car Music Audio Aux A2dp Headphone Reciever Handsfree
DX-WF20-A with Base Plate
  • Description
  • Customer Reviews
  • Payment & Shipping
Parameter item Parameter details
Frequency Band 2400~2483.5MHz,Adjustable
Frequency Error ±50KHz
PCB 4-layer,Impedance-matching, lead-free
Operation Range 80m,Open area; +4dBm;Height: 2m; Baud rate: 9600bps
Baud rate 6 level,4800bps, 9600bps, 19200bps,38400bps,57600bps,115200bps
Shutdown current 0.5uA,MCU in sleep,wireless closed,VCC=3.3V
Transmitting current 24mA@-6dBm
Receiving current 19.6mA,3.3V
Communication interface IO
Transmitting length 20 bytes,BLE
Receiving length 20 bytes,BLE
RSSI support Available
Operating temperature -20 ~ +60℃,Industrial-grade
Operating humidity 10% ~ 90%,Relative humidity, without condensation
Storage temperature -55 ~ +85℃,Industrial-grade
Sensitivity -93dBm@+4dBm
