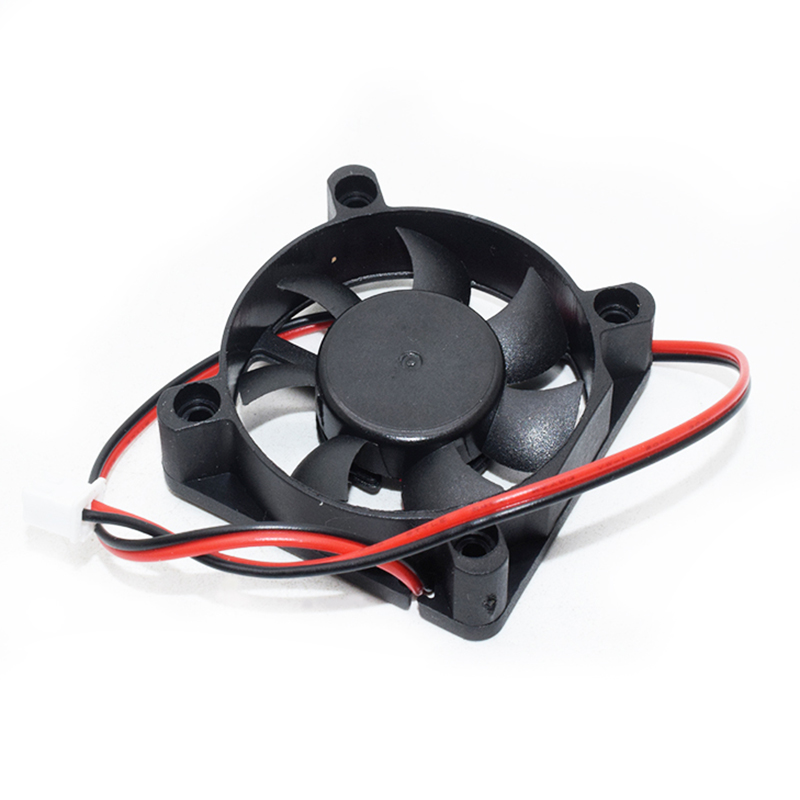

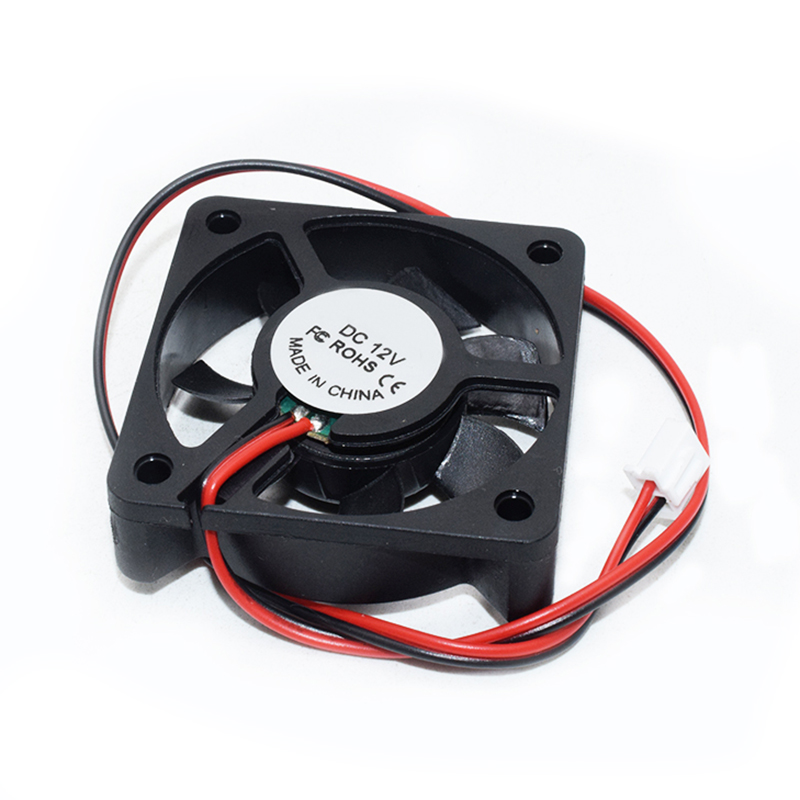

Brushless DC Cooling Fan 12V 0.18A size:5010 [11b103]

Choose a ranking for this item. 1 star is the worst and 5 stars is the best.

Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product.

E-mail:
*

NOTE: HTML tags are not allowed.
NOTE: Reviews require prior approval before they will be displayed

New Products For March

Home / 3D Printer / Heat Pipe & Fan & Fan cover / Brushless DC Cooling Fan 12V 0.18A size:5010 Brushless DC Cooling Fan 12V 0.18A size:5010 SKU: 11b103 Shipping Weight: 18g 887:viewed US$0.50 (10000 Pieces available) Send Email Chat Online Call on Whatsapp Add to Wishlist Hot Products 4010 Variable Dual Fan 5V US$0.86 6045 Heatsink US$1.02 Brushless DC Cooling Fan 9 Blade 12V 0.06A 40x40x10mm 4010S US$0.60 X241 80 200 * 30mm Aluminum Heatsink radiators extruded profiles US$4.05 Description Customer Reviews Payment & Shipping
Electric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation Resistance	10M ohm between lead wire and frame(DC 500V)
Life Expectancy(Ball bearing)	50000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life Expectancy(Hydraulic bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life Expectancy(Fluid Dynamic bearing)	>60000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation Temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification
Storage Temperature	Storage Temperature: -40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic Material	Black PBT(UL94V-0)
