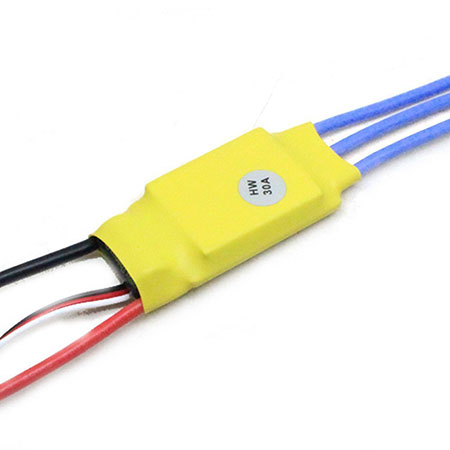

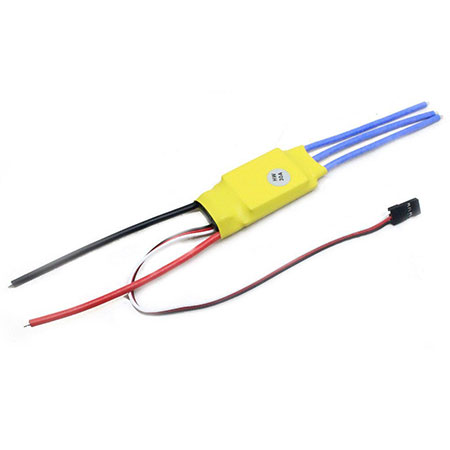

Brushless ESC HW30A 30A

Features:
good welding plug (recommended)
weld plug more convenient.
Connect the motor end of the welding head is three 3.5mm female banana.
Connect the battery terminal is welded T plug male.
Limit use:
Continuous current 30A, instant 35A, 40A for 10 seconds.
Performance description:
Upper limit speed of up to 300 000 within two-pole transfer switch, 12 poles outside turn 50000 rpm, 14-pole outside turn 42,000 rpm.
8KHz PWM control, using speed control curves.
Autothrottle adapt, fit more remote devices.
BEC, MCU separate power supply, work more stable.
2-3LIPO (4LIPO not allowed BEC output)
BEC Output:
Continuous 2A, (instant 3A)
2LIPO 4-5 micro servos
3LIPO 3-4 micro servos

Specifications:
Number of Batteries:4-12NIMH
Voltage range: 4V-16V
Color: yellow
Dimensions: 68 x 25 x 7 (mm)
Net Weight: 32 g
