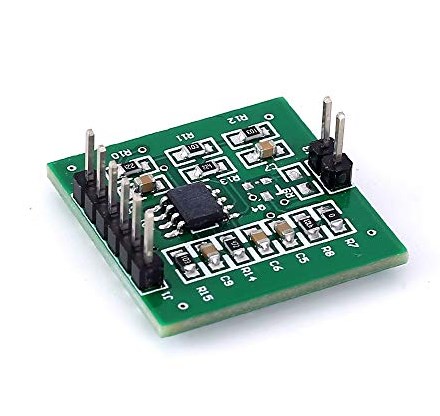

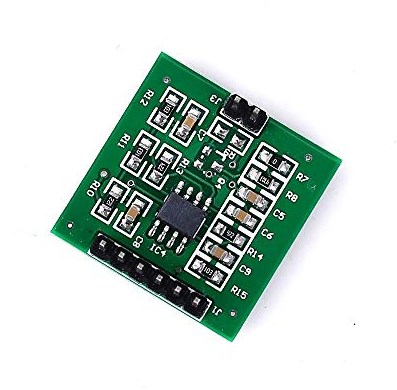

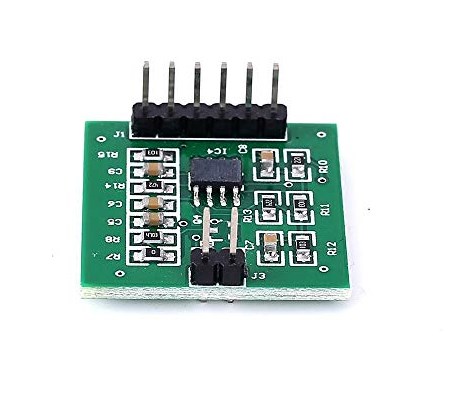

Card Reader Module, RFID Reader Wireless Module 134.2KHZ FDX-B EM4305 Card Reader UART Contactless Controller with Antenna

Card Reader Module, RFID Reader Wireless Module 134.2KHZ FDX-B EM4305 Card Reader UART Contactless Controller with Antenna

• The reading frequency of the card reader module is 134.2KHZ (error 1KHZ).
• Module working voltage: 5V, current less than 50MA.
• The card reader module reads a tag that conforms to the ISO 11784/85 FDX-B format or its compatible RFID card.
• Card reading distance: ear tag is 6CM, foot ring, etc. 4CM

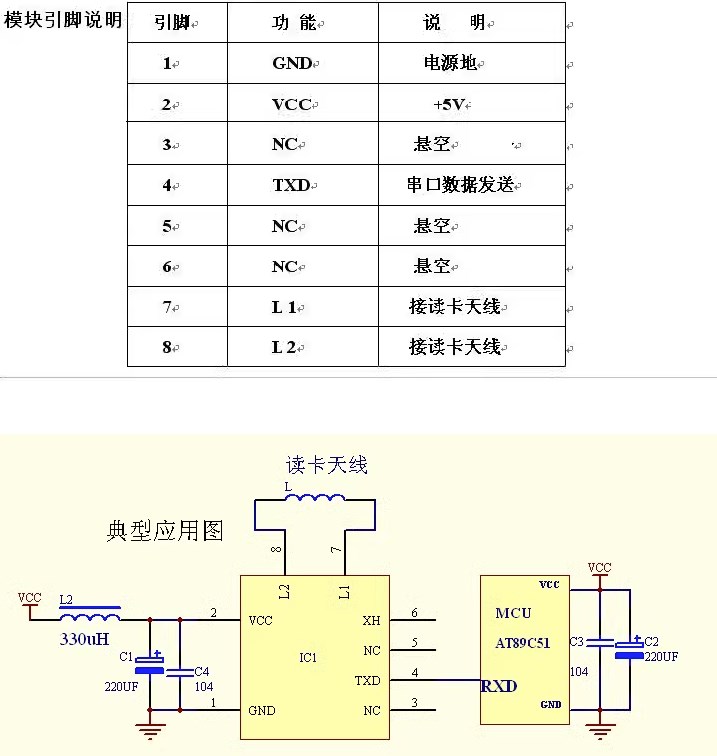

• The card reading module is a TTL level serial port output, which can be directly connected to the serial port of the target microcontroller. The baud rate is 9600.
