CP2102 USB UART Board (mini) Data Transfer Convertor Communication Module Development Board

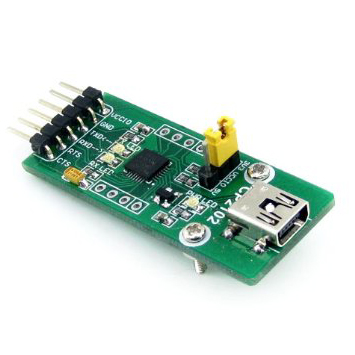

product description CP2102 USB to UART module, USB miniature connector Overview CP2102 USB UART board (Mini) is an on-board single-chip USB to CP2102 UART bridge attachment board .CP2102 features: Single-chip USB to UART data transfer No external resistor required, no external crystal required On-chip power-on reset circuit and voltage regulator Integrated 1024 bytes EEPROM USB function controller Complies with USB Specification 2.0; full speed (12 Mbps) USB suspend status is supported by the SUSPEND pin UART All handshaking and modem interface signals Supported data formats: Data bits: 5, 6, 7 and 8 Stop bits: 1, 1.5 and 2 Parity: odd, even, no parity Baud rate: 300 bps to 1 Mbits 576 bytes receive buffer; 640 bytes send buffer Support hardware or X-On / X-Off handshake Event character support Virtual COM port device driver Windows 8/7 / Vista / Server 2003 / XP / 2000 MAC OS-X / OS-9 Linux 2.40 or later USBXpress direct driver support Windows 7 / Vista / Server 2003 / XP / 2000 Windows CE temperature range -40 ° C to + 85 ° C feature Support Windows 8 Voltage output support: 5V or 3.3V Integrated USB protection: SP0503 3 LEDs: TXD LED, RXD LED, power LED Pins can be used on pinheaders: TXD, RXD, RTS, CTS Other pins can be accessed through the hole for easy connection to the user application system (separate pins available) Sample application Upgrade RS-232 legacy devices to USB USB to RS-232 serial adapter product information Product size 7.1 x 3.9 x 3.5 inches Product weight 0.64 ounces
