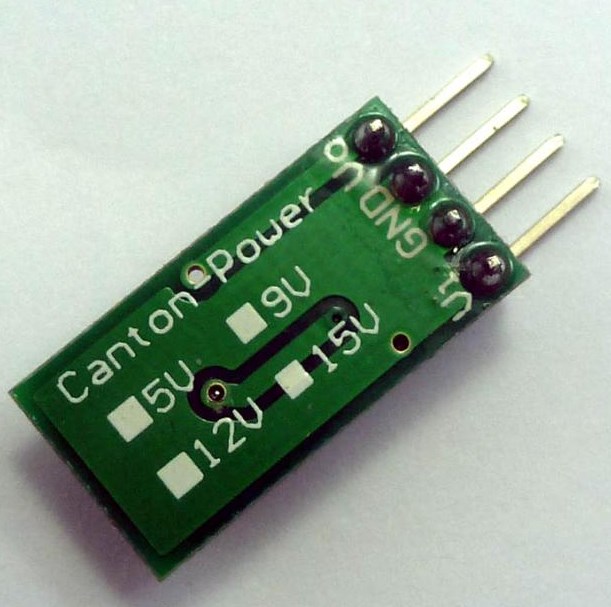

DC 3.3 V 3.7 V 5 V to 6 V 9 V 12 V Adjustable Step-Up Boost Voltage Regulator of Power Supply Module

product description Description: Input voltage 2.6 ~ 6V, output 3 ~ 15V adjustable The maximum input current: 1.4A Long-term working current: 1.2A Conversion efficiency: 79-90% DC-DC boost module operating frequency 1.0MHZ. Working environment temperature: -40 ~ +85 degrees Celsius FPGA / CPLD AVR development board friendly. Size 20mm x 10.16mm x 5.6mm (very small) Weight: about 1.2g (very light) application MCU development board, FPGA / CPLD UNO MEGA2560 DUE 8051 AVR C8051 and so on PLC RS485 Modbus RTU 9-12V network equipment / router Temperature and humidity sensor LED lighting Instrumentation 5V 6V 9V 12V relay board Wireless communication equipment 315M 433M wireless remote control note: This is a DC-DC voltage conversion module, use must pay attention to: 1 The input voltage can not exceed the maximum input range 2 output power can not be greater than the maximum load for a long time 3 The input power must be greater than the output power because of the power consumption of the module itself product information Product dimensions 20 x 10.1 x 5.6 inches Product weight 0.16 oz
