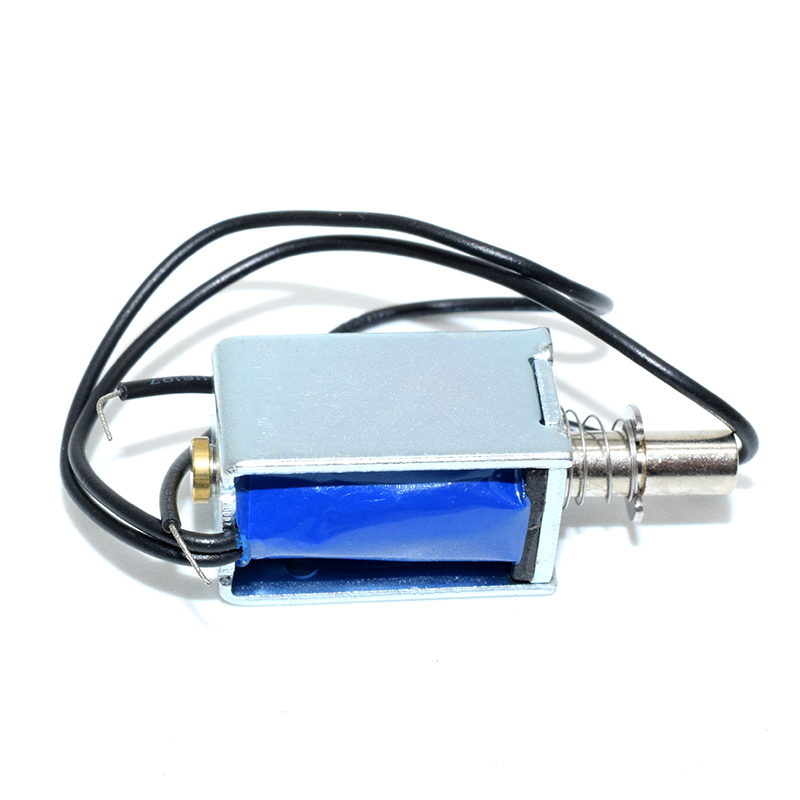

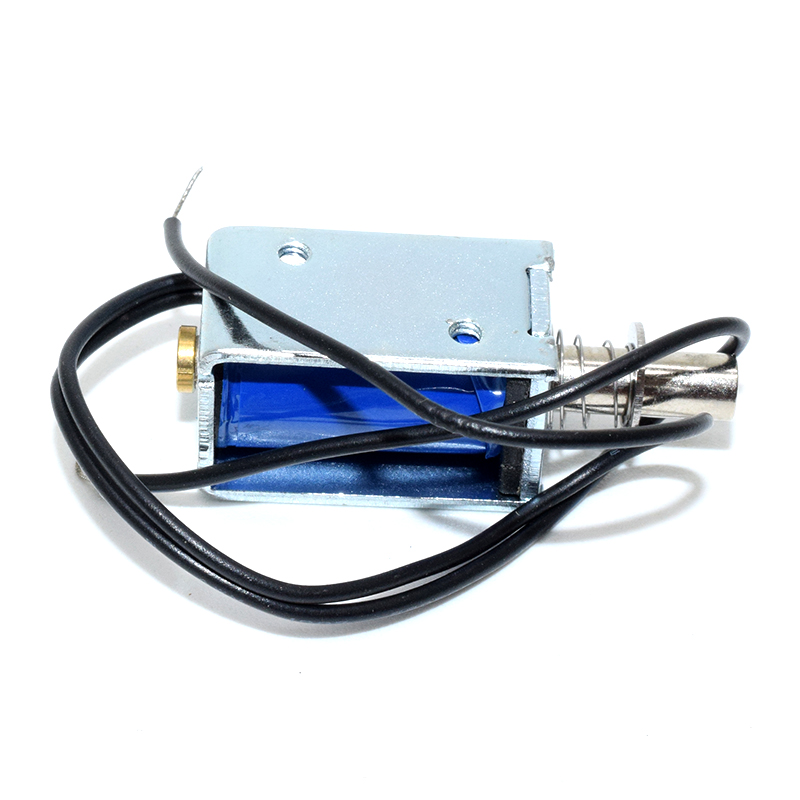

DC 5V Solenoid Electromagnet Pull Type Linear Solenoid
Description:
DC 5V 5N/10mm Push-Pull Open Frame Mini Valve Solenoid Actuator Electromagnet
Specifications:
Model: JF-0530B
Material: Metal, Electronic Parts
Rated voltage: DC5v
Rated current: 0.7A REF
Mass resistance: 7.1 Ω
Withstand voltage: AC500V/0.5mA, 1 minute or AC600V/0.5mA, 1 second
Attraction: Connect DC5V power supply, stroke 3mm, attractive force above 40 gf. (Initial value)
The highest temperature rise: the coil surface temperature is below 80 °C (energization frequency ≤ 50%)
Lifetime: 200,000 times or more under normal use. (Power-on frequency ≤ 50%)
Features:
1.Pull push type, linear motion, plunger return, DC solenoid electronmagnet.
2.When energized, doing work through pulling pushing in plunger joined object.
3.Solenoids of this category work externally through pulling pushing in plunger.
4.DC Solenoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
