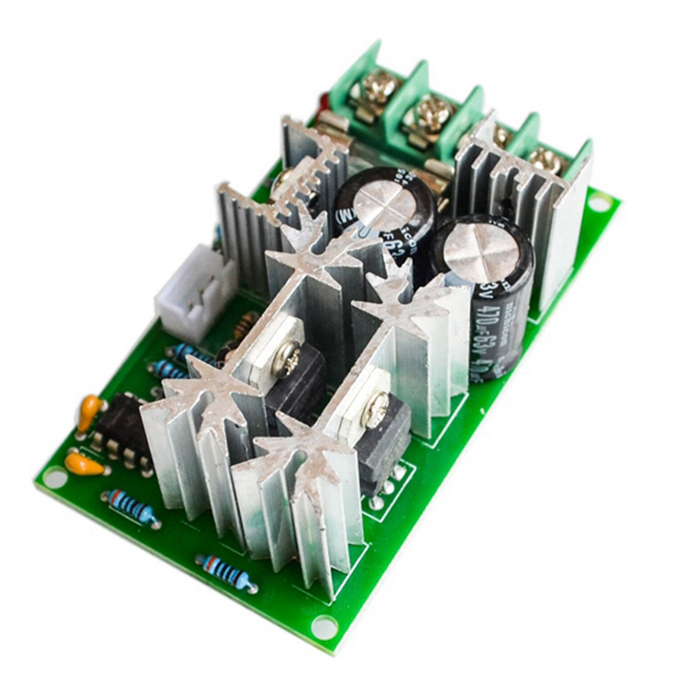

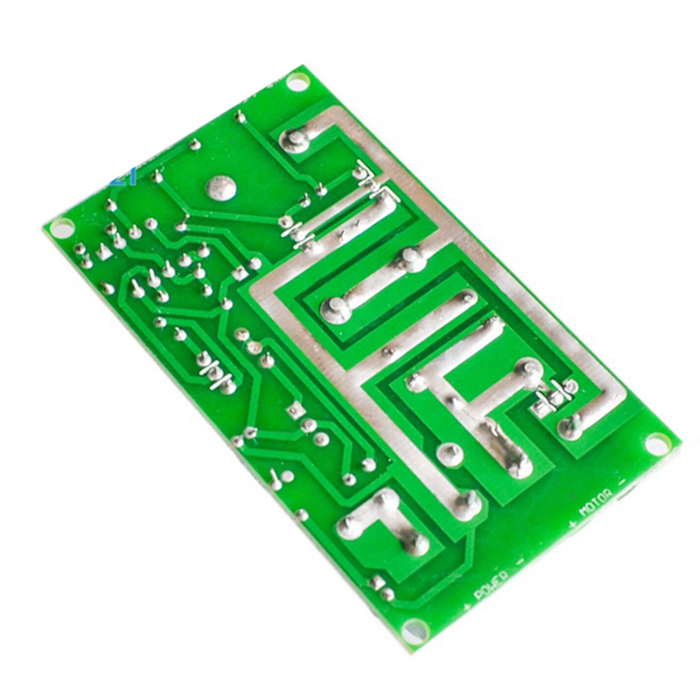

DC Motor Speed Regulator 12V 24V 36V 48V High Power Drive Module PWM Motor Speed Controller

Technical indicators

?
Input voltage: DC10-60V Output voltage: linear under load
?
Output limit current: 20A (10A, 450W for long time use, pay attention to keep the module cool and cool)
Ultimate power: 1200W
?
Speed ??regulation type: current regulation speed regulation mode: potentiometer (linear)
?
Speed ??regulation duty range: 0——100% Control frequency: 25KHZ
?
Wiring type: fence terminal block knob line length: 20CM
?
Module size: length * width * height 77MM * 45MM * 28MM product net: 73 grams
?
Motherboard mounting size: length * width 73MM * 40MM potentiometer according to the installation opening: 7MM
?
?Wiring diagram
Make sure that the positive and negative connections are correct before powering on. Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor.
?Input is 9-60V DC
Power: POWER+ POWRE-
Motor: MOTOR+ MOTOR-
Please note:

1. This governor is used for DC brushed motors.


2, not suitable for DC brushless motor speed; can not be used as a regulator or regulator!
