Technical Data:

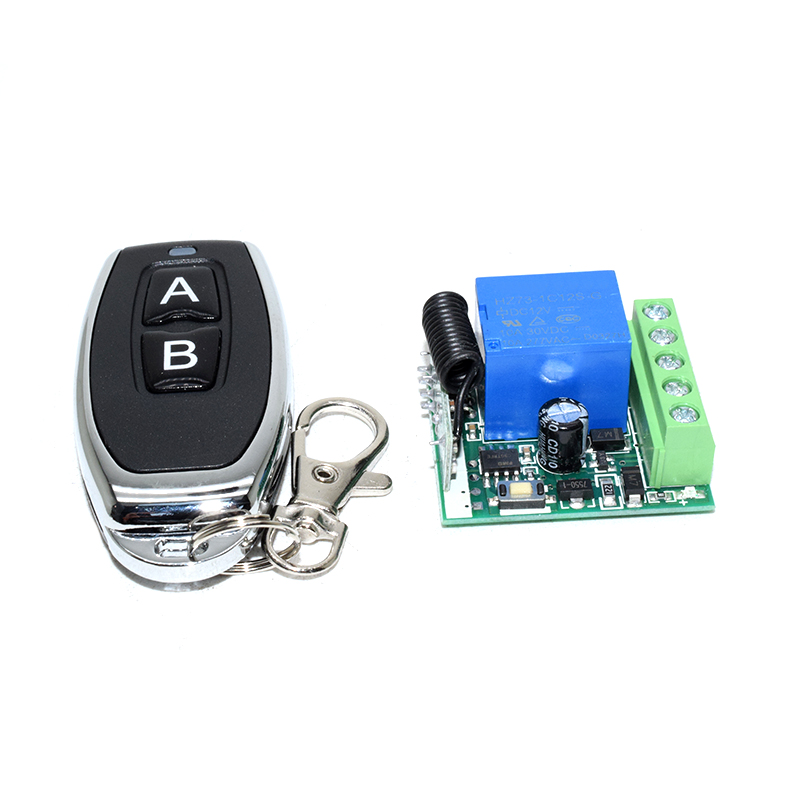

Product Instruction

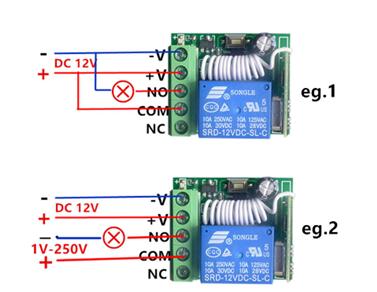

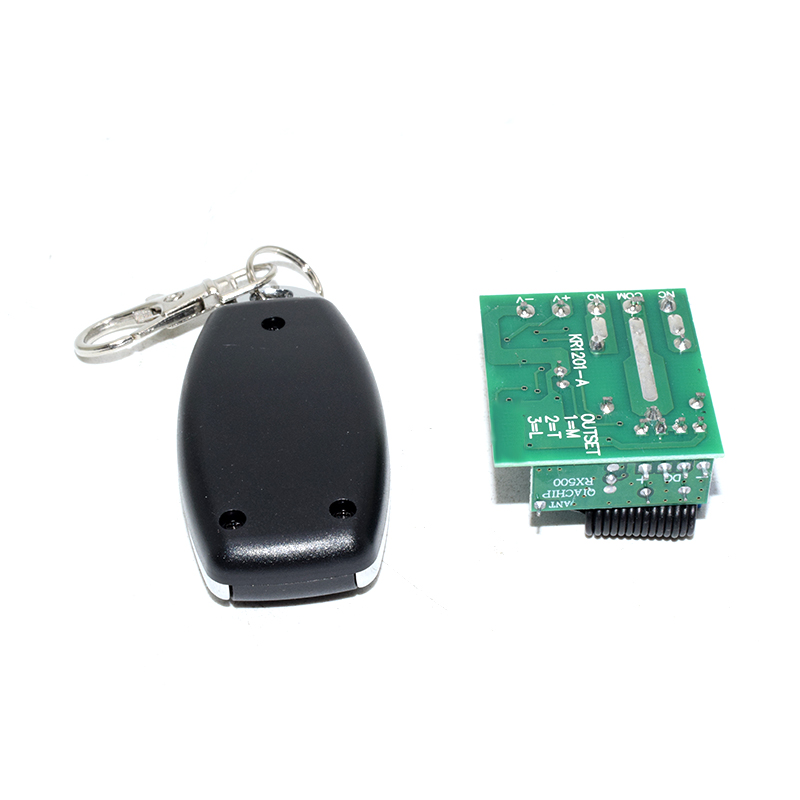

·Signal Instruction：

NO              ---- Often start

COM    ---- Common Port

NC        ---- Normally Closed End

N           ---- Zero Line

L            ---- Fire Line

       LED             ---- Pilot Lamp

Learning button   ----- Learning

Instruction

Clearing All Stored Transmitters:

Push the learning button on the receiver  8 times , and the codes will be cleared .

**Note**

After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.

1. Learning the transmitter :(momentary Mode)

 Press the learning key on the receiver 1 times,  Wait for a moment , the LED will be off , it comes into learning state .

Press the remote button , LED indicator on the receiver board will flash then come off .After 3 seconds, the LED indicator will be on again , learning successfully .

2.Learning the transmitter : ( Toggle Mode )

Press the learning key on the receiver 2 times,  Wait for a moment , the LED will be off , it comes into learning state .

Press the remote button , LED indicator on the receiver board will flash then come off .

After 3 seconds, the LED indicator will be on again , learning successfully .

3.Learning the transmitter : ( Latched Mode )

Note: When you choose for Interlocking mode , in order to learn more remote control , you need to learn two different button , the first time learn is for “ON”, the second time learnt for “OFF”.

For example : button A = ON , button B = OFF

Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.

A = ON , B = OFF .
