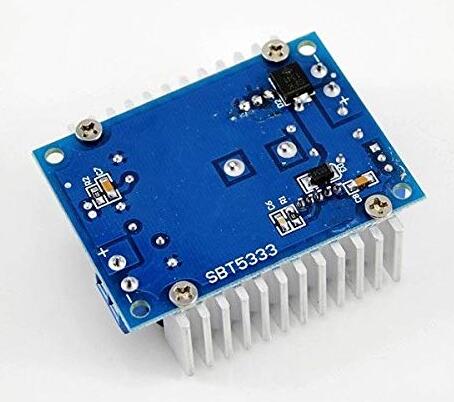

DC-DC Power Module 12A Adjustable Buck 95% Efficient Vehicle Power Supply Low Ripple

product description Module parameters: Input voltage: DC5-30V Input Current: 8A (MAX) Peak 10A (6A working hours long) Quiescent current: 4mA (working voltage is not the same there will be errors) Output voltage: 1.25-30V continuously adjustable Output current: 10A (MAX) (5A natural long internal heat) Output current range: 0.2-10A Operating temperature: -40 to +85 degrees Working frequency: 150KHz Conversion efficiency: a typical 91% (12V to 12V5A) up to 93% Output current adjustment method: 1. CV potentiometer adjustment, according to your load requirements, the output voltage is set to the voltage you need. 2, CC Potentiometer counterclockwise at about 30 laps (ie, the output current is set to minimum), connected to the LED, potentiometer CC adjusted to the desired current. After charging the battery, the battery is fully discharged and then output to the desired current CC (must be used to fully discharge the battery before it is allowed to be transferred because of how much battery power is left and the charge current is low). Do not use the short-circuit current transmission mode, the circuit structure of the module can not be short-circuit transmission. Package Included: An automatic boost step-down adjustable power module product information Package dimensions 6.2 x 5.5 x 1.4 inches Product weight 0.64 ounces
