Electronical Parameter Tester 33V 3A 0.96inch OLED

product description
Technical Parameters:
Voltage measurement range: DC 0.00-33.00V
Current measurement range: DC 0.000-3.000A
Time measurement range: 0-99h59min
Power measurement range: 0-99.00W
Temperature measurement range: -15 ° C ~ 60 ° C
Capacity measurement range: 0-99.999Ah
Energy measurement range: 0-999.99Wh
Voltage measurement accuracy: ± (0.3% + 2)
Current measurement accuracy: ± (0.8% + 3)

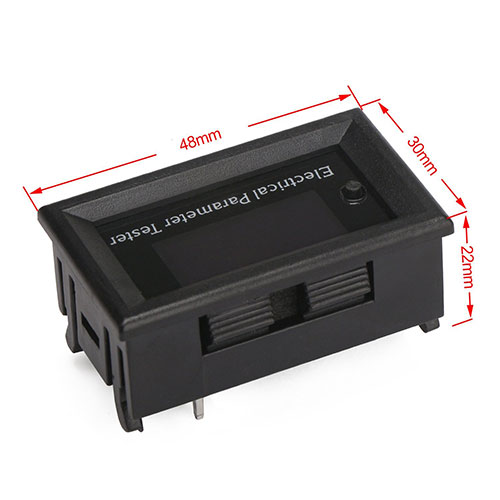

Product Size: 48 × 29 × 22mm

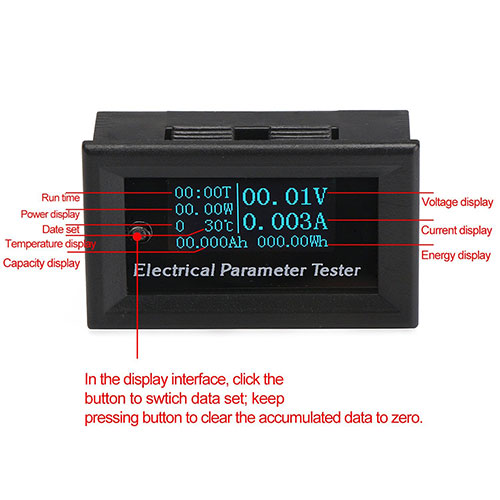

Key function description
In the display interface, press the button to switch the data set; press the button to clear the accumulated data to zero.

note:
1. Component aging and temperature changes after prolonged use Small errors may occur when measuring small currents. To avoid this error, you can unplug the current electrical outlet and press and hold the button to power on until the display shows "AAA" and release the button.
2. Please strictly follow the wiring diagram to ensure that the wiring is correct.

Package Included:
1 x OLED multimeter
Product weight 1.6 ounces
Package size 4.9 × 3.5 × 2.3 inches
