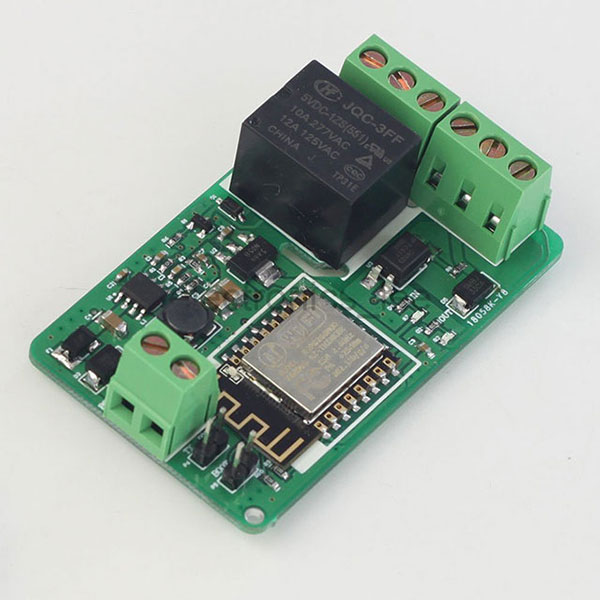

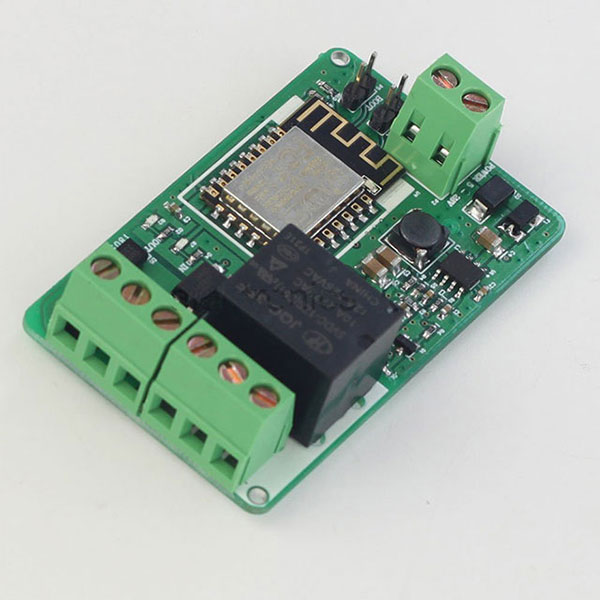

ESP8266 WIFI network relay relay

ESP8266 WIFI network relay relay

Product Features
Relay safer PCB pins anti-climb design. Adopt ESP8266 Wifi transceiver module, 802.11b / g / n standard.
An output status indicator, an input status indicator. 220V 10A relay, one normally open, one normally closed.
Single optocoupler isolated input, TVS input protection. Input overvoltage
Protection, built-in TVS (transient voltage suppressor), when the voltage reaches 33V, the protection will run automatically.
Access control server via TCP CLIENT mode Control via HTTP protocol.

product description:
Using ESP8266 Wifi module, 4-layer board design.
Input over-voltage protection, with TVS input, when the voltage exceeds 33V, automatic protection action.
Input overcurrent protection.
220V 10A Relay, 125V 12A One normally open, one normally closed.
Single optocoupler isolated input, TVS input protection.
High current terminal.
An output status indicator, an input status indicator.
Relay safer PCB pin-up design.
Access the control server through TCP CLIENT mode
Through the HTTP protocol control

Product Specifications:
Input voltage: DC 7-30V

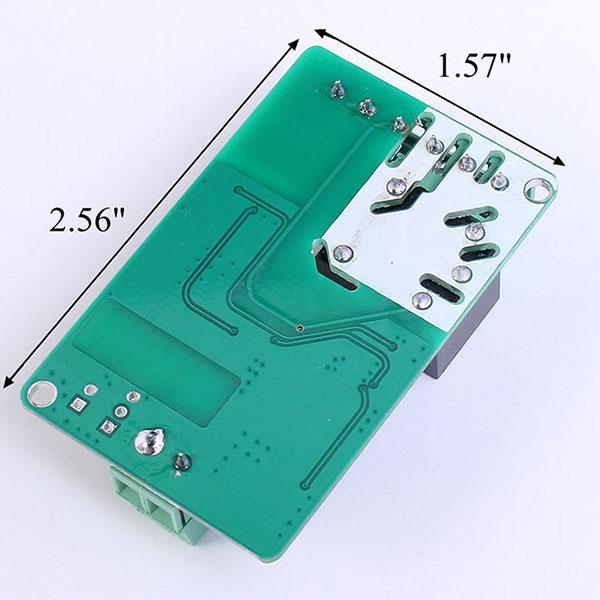

Plate size: 65mm × 40mm × 20mm
