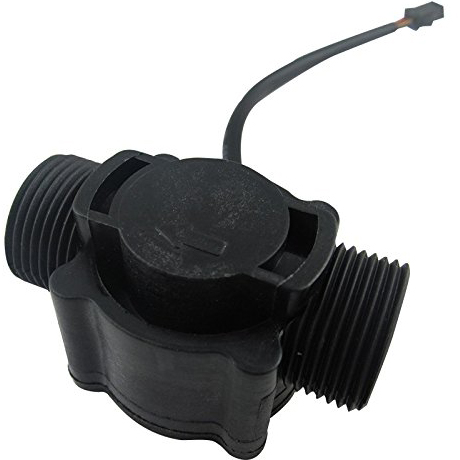

G3/4 1-60L/Min Water flow sensor DC 5-24V Hall Effect Water Flow Sensor Counter Meter FS300A

Product Features Flow range: 1-60L / min Allow compression: water pressure below 1.75 Mpa Operating voltage range: DC 5-18 V Output waveform: square wave, the output pulse signal. Sensor: Hall effect product description Waterproof, heat, pressure, cold. Easy to install. Frequency: F = 5.5 * Q (L / Min), Error: 2% Voltage: 3.5-24VDC, current can not exceed 10mA, 330 pulses / L, F = instantaneous flow rate unit (L / min) * time). Flow range: 1-60L / min Maximum current: 15mA (DC 5V) Operating voltage range: DC 5-24 V. Load capacity: ≤10mA (DC 5V) Working temperature: ≤ 80 ℃, working humidity: 35% 90% RH Allow compression: water pressure below 1.75 Mpa Insulation resistance:> 100M OHM Storage temperature: -25 ℃ ~ +80 ℃ Storage humidity: 25% ~ 95% RH Output waveform: square wave, the output pulse signal. In line with ROHS. Cable length: 15 cm
