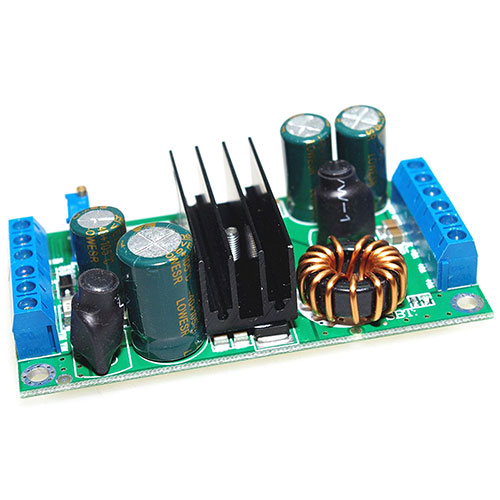

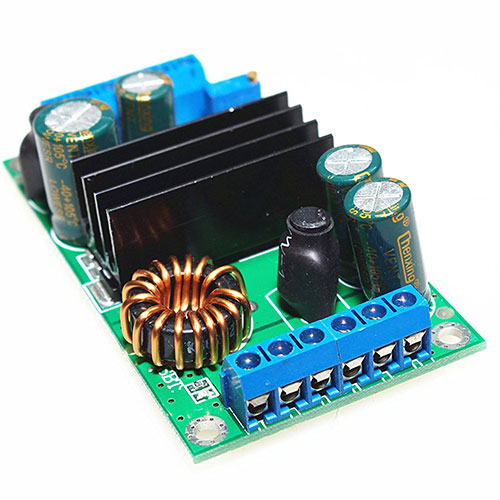

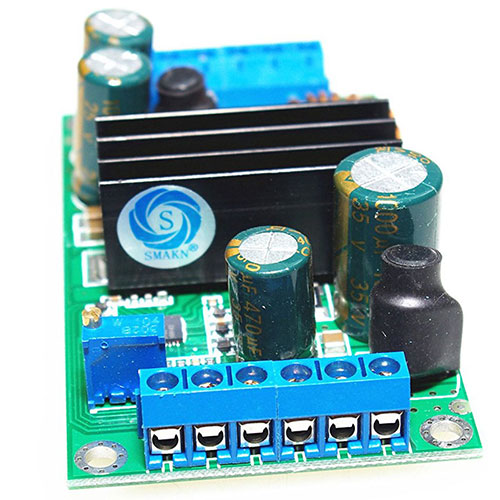

High Power Automatic lifting pressure module LTC3780 Car PC Power Supply

product description Wide input voltage range: 5 ~ 32V Output voltage: Adjustable between 2 ~ 24V, the output voltage can also choose fixed (2 ~ 24V choose), please indicate the purchase time. The default delivery is adjustable Continuous output current: 12A, maximum 14A (input 14V, output 12V). Using advanced synchronous rectification technology, conversion efficiency up to 98% Working frequency: 200KHz Output over current, short circuit protection, output short circuit is not afraid of end, the circuit will automatically protect Input 15A fuse, add more gold security measures Chip has overheating protection, over-temperature automatically stop working Enter the undervoltage protection, stop working when the input voltage is lower than 4.5V Input reverse polarity protection, input and output reverse will burn Soft-start function to ensure that the power process without overshoot voltage Enable direct control of the output voltage switch, ground directly to turn off the output voltage and the module enters sleep mode. Not connected (floating) Turn on the output. Input and output are used LC filter, and the use of high-capacity high-frequency Ceramic capacitors and low impedance electrolytic capacitors from Taiwan ensure very low input and output ripple. Input 14V, output 12V10A ripple ≤ 30mVp-p. Especially in automotive applications, it will not interfere with other equipment Full load temperature rise: 50 ℃, the delivery has been installed heat sink, to enhance heat dissipation Industrial operating temperature range: -45 ~ +85 ℃ Size: 85X48X25mm Connection: Terminal type product information Package dimensions 6 x 2.5 x 0.5 inches Item weight 0.32 ounces
