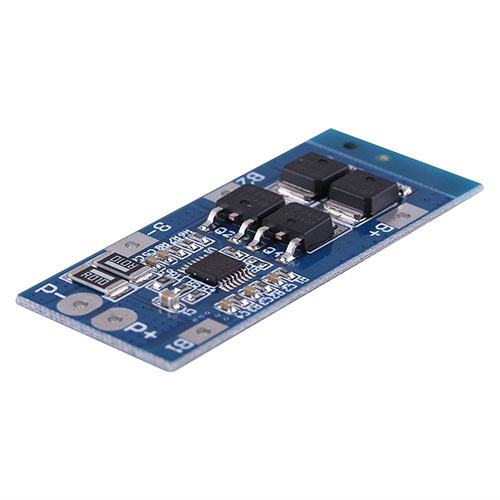

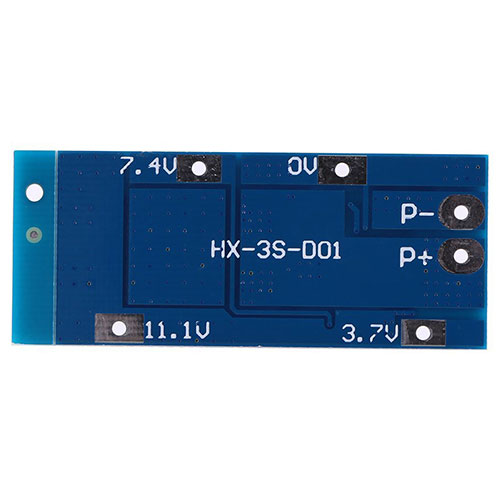

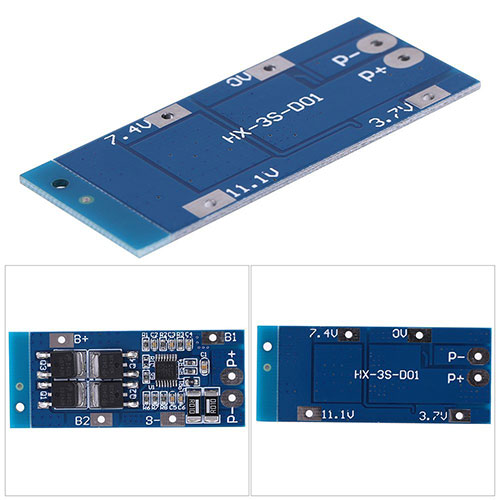

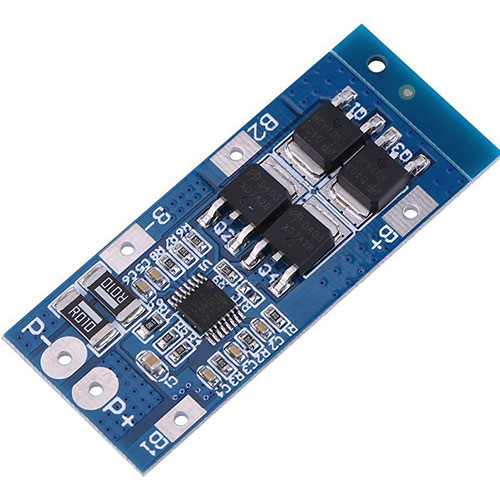

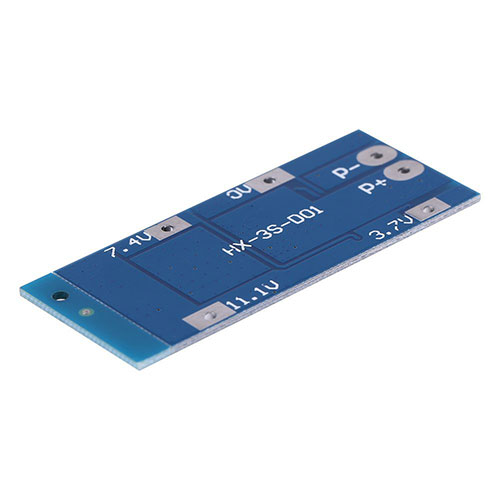

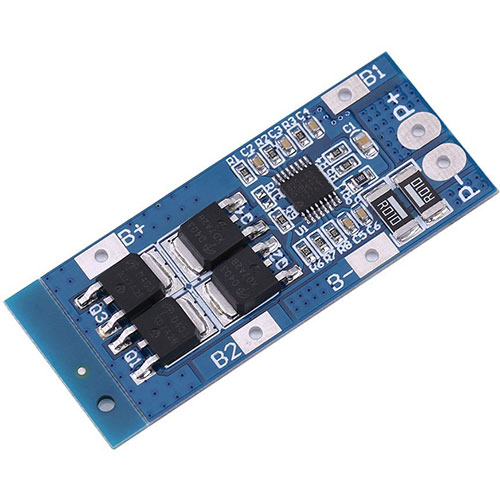

HX-3S-D01 3 Series 11.1V Lithium Battery Protection Board 10A ， 20A overcurrent limiting AOD403 + 8254AA

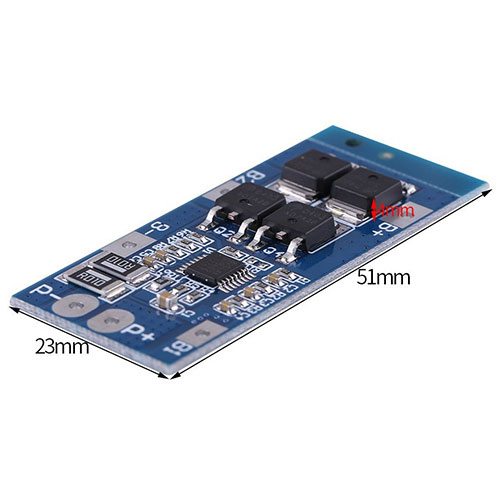

Product Features Charging voltage 12.6V to 13V, quiescent current is less than 50uA, low power consumption A variety of protection features, including overcharge protection, over discharge protection, short circuit protection and over current protection For 11.1V lithium battery pack Can be used to avoid explosion, fire and damage to your battery pack for safe use Helps to extend battery life product description This product is 12.6V to 13V charge voltage, quiescent current is less than 50uA PCB. Protection circuit board is the core of the battery pack, because it can prevent the battery pack from exploding, fire and damage. It also protects the battery pack from over-charging, over-discharging, over-current and short-circuiting. With this PCB, you can certainly extend battery life. Specifications: Size: 51 × 23 × 4mm / 2.01 × 0.91 × 0.16 inch Over-voltage range: 4.25-4.35v ± 0.05v Over discharge voltage range: 2.3-3.0v ± 0.05v Maximum operating current: 15A Maximum transient current: 15-20A Quiescent current: <50uA Resistance: <150mΩ Charging voltage: 12.6v - 13V Operating temperature: -40 ~ +50 ℃ Storage conditions: -40 ~ +80 ℃ Effective life:> 30000h Short-circuit protection: Yes, delayed self-recovery
