Wiring method:

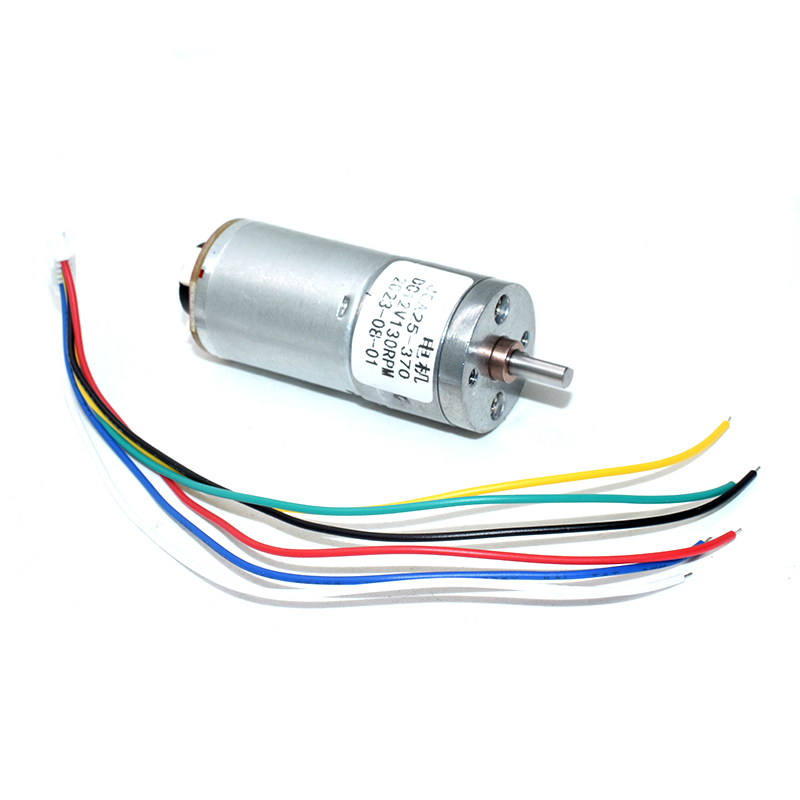

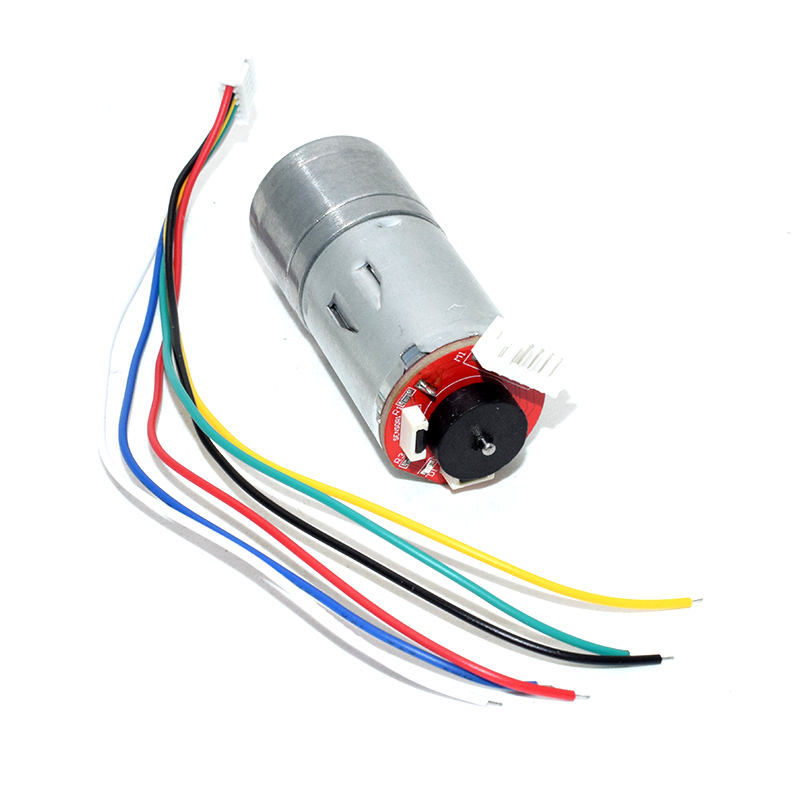

Red → motor power + (AC can control the positive and negative motor) Black → Coded Power - Negative (positive and negative level can not be connected to the wrong 3.3-5V) Yellow → signal feedback (motor rotation signal 11) Green → signal feedback (motor turn signal at 11 oclock) Blue → Coded power + positive (positive and negative levels can not be connected wrong 3.3-5V) White → motor power - (exchange can control motor positive and negative) [Diameter] 25mm Length varies according to the length of the parameter [Shaft] 12mm D 8mm long [Shaft Diameter] Diameter 4mm D Shaft
