JK11-12V 1S-15mins Delay Adjustable Infinite Loop Single-time Multi-function Relay Module Delay Circuit Module
Power connection:
The module is connected to the power supply according to the correct power supply voltage and polarity. The red wire of the power connection port is the positive pole. The black wire is the negative pole.
Access of trigger line:
Two white lines at the trigger end are connected - one switch, gently tap the lower switch to start the module, and then tap the lower switch
Stop working. The trigger switch can be a light touch switch, a microswitch, an optocoupler C-E terminal, a relay contact, etc.

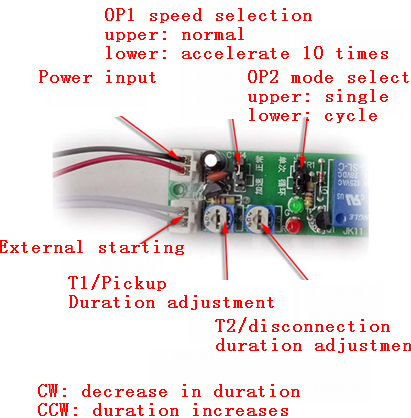

Setting of normal speed and fast mode:
OP1 jumper is used to select normal speed and fast mode, and normal speed is used for shipment by default.
Setting of cycle mode and single mode:
OP2 jumper is used to select cycle mode and single mode, and the default shipping mode is cycle mode.
Cycle mode: after starting, the relay will be switched on - off - switched on -....., and the relay will be cycled according to the set duration - direct;
Single trigger: after starting, the relay is connected, and after T1, the relay is disconnected. (After disconnection, the action ends and waits for another time
Trigger)
