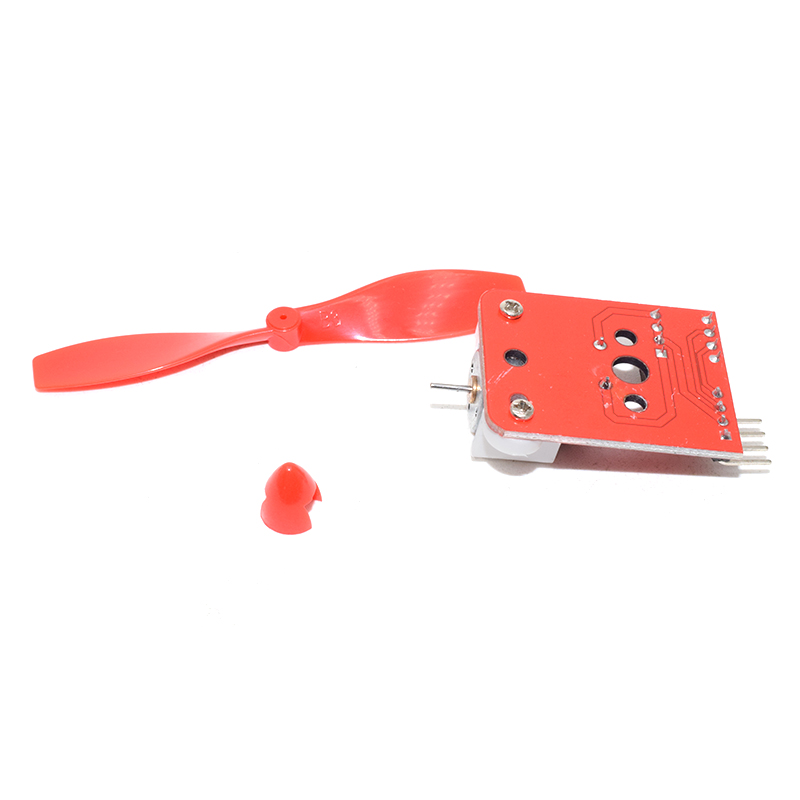

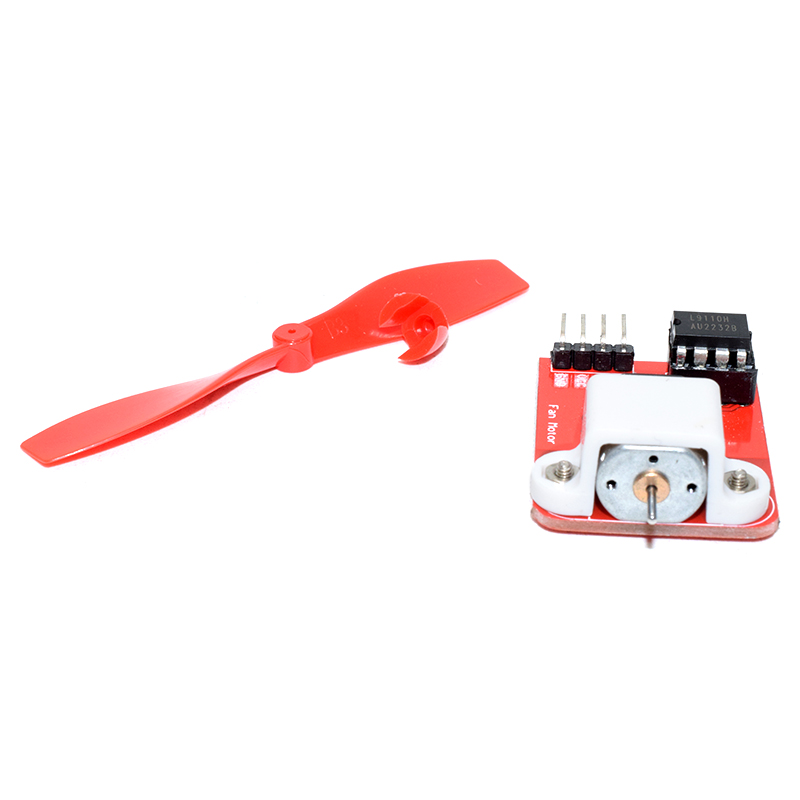

L9110 Fan Motor Module with Fan Propeller for Firefighting Robot

Features:
Product size: 50 * 26 * 15mm (excluding propeller)
Propeller Diameter: 75mm
Operating voltage: 5V
L9110 drivers can be controlled reversing with mounting holes compatible servo rudder propeller disc quality control and high efficiency. Production can easily blow out the flame lighters 20cm away can be used for fire fighting robots, robot design and development necessary

Function test module
Hardware Requirements
Arduino controller × 1
USB cable × 1
9110 Fan Module × 1
Module Arduino board connections:
VCC modules connected 5V, GND connection GND, INA received digital interface 9, INB connected digital interface 8.
