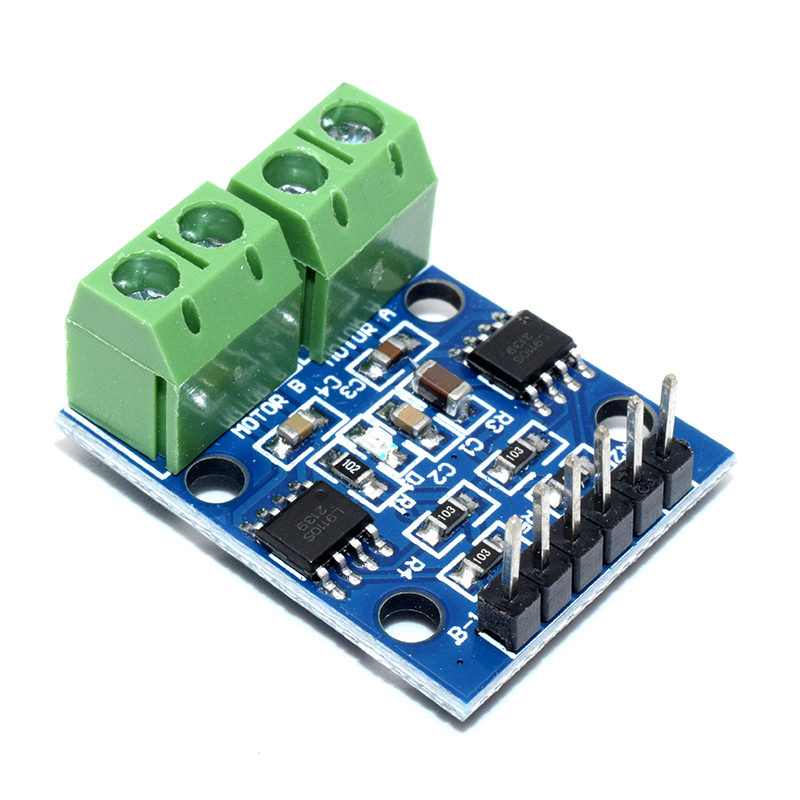

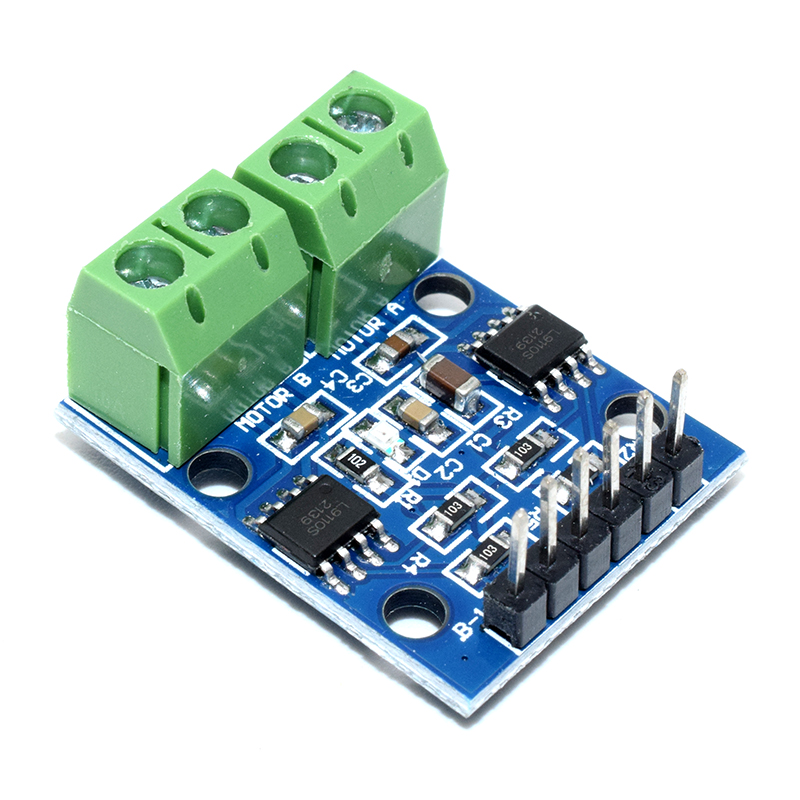

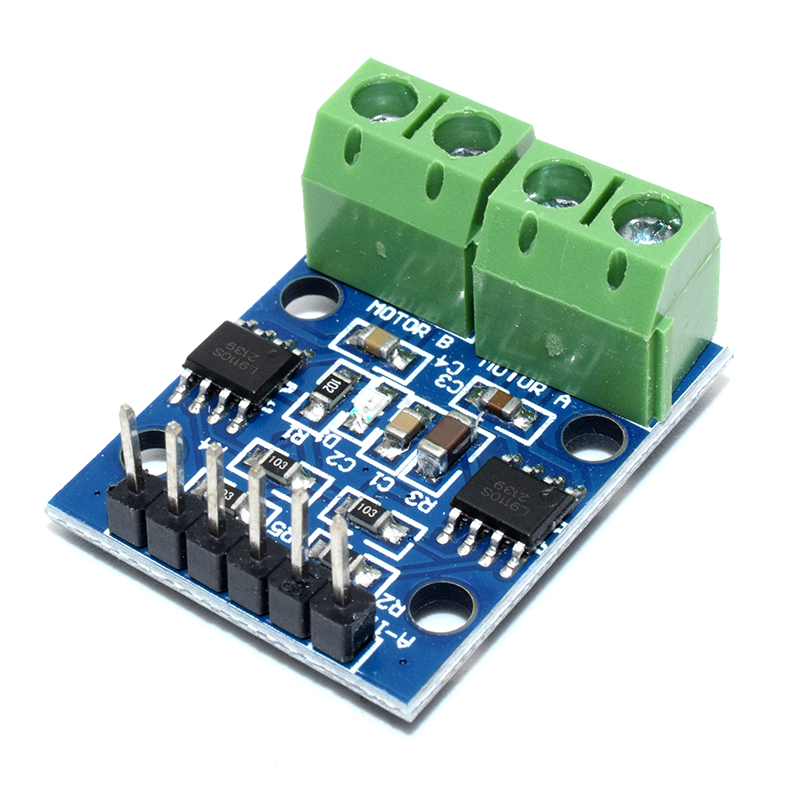

L9110S DC motor / stepper motor driver board, motor driver board, H bridge motor driver, Arduino

Features: 1. Low static current work; 2. Wide range of power supply: 2.5V to 12V. 3. Each channel has a continuous output current 800 ma ability; 4. The lower saturation voltage; 5. TTL/CMOS compatible output level, can be connected directly to the CPU 6. Output with clamping diodes, apply to the perceptual load; 7. Control and drive integration with IC; 8. Have the pin high voltage protection function; 9. Working temperature: 0 degree to 80 degree 10. Module can drive two DC motor or one 4-wire-2-phase stepper motors 11. Onboard two L9110S motor drive control chips
