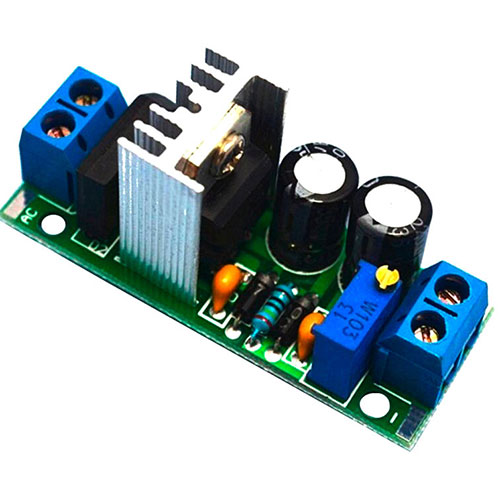

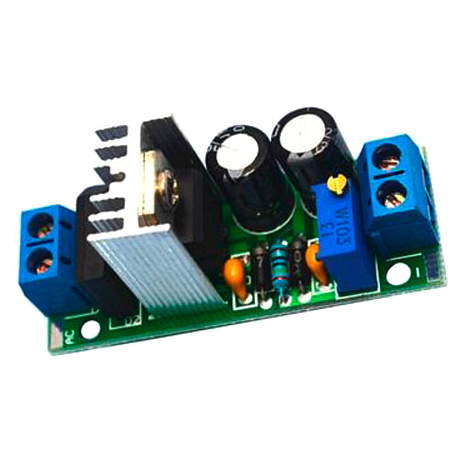

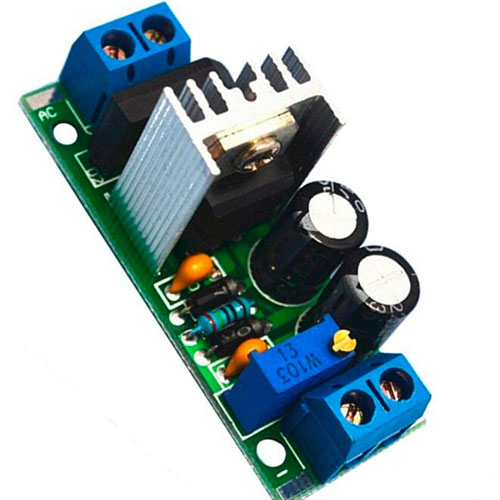

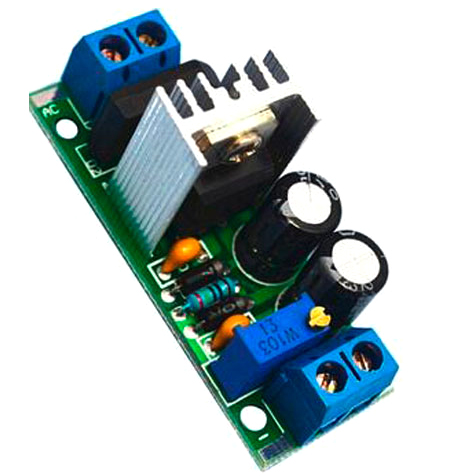

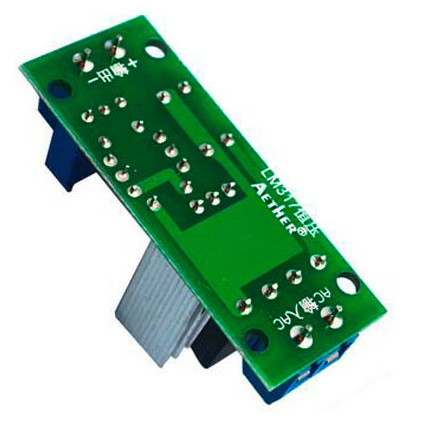

LM317 adjustable modules / adjustable power supply board

feature:
DIY LM317 adjustable module adjustable power supply board with rectifier AC / DC input LM317 module
LM317 adjustable module adjustable power supply board with rectifier AC / DC input DIY kit LM317
M317 Description:
1. Linear regulator LM317 regulator module, the input DC voltage adjustable output.

2.LM317 output voltage range of 1.2 V to 35 V, the maximum load current of 1.5 A.

3.LM317 built-in overload protection, safe area protection and other protection circuits. In general, the LM317 does not require an external capacitor. Using an output capacitor can change the transient response. It can also be used to regulate the power output terminated to a programming voltage and programmed.

When the module uses the input voltage and output voltage need to have a certain pressure drop generally require 2V or more.

Upgraded version with bridge rectifier, 3A1000V pressure, support for AC / DC dual input.
Module size: 47mm * 20mm
Input voltage (voltage): 35V (DC maximum 35V, AC maximum 20V)
Output voltage: 1.2V-33V adjustable
Load adjustment: 25 mv
Quiescent current: 1mA
Input and output pressure: 2V
Peak current, 1.5 A.
