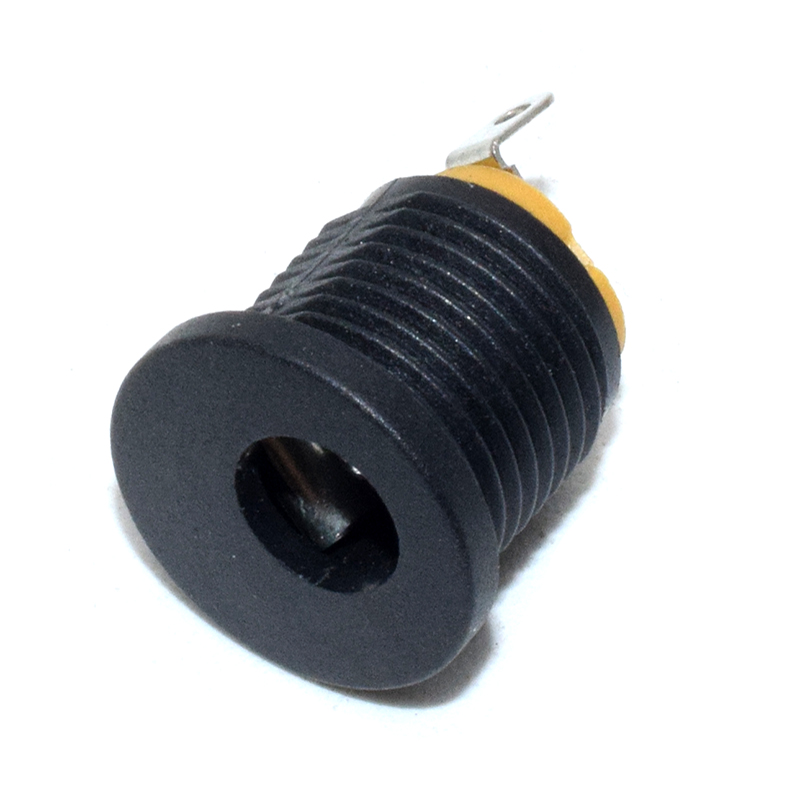

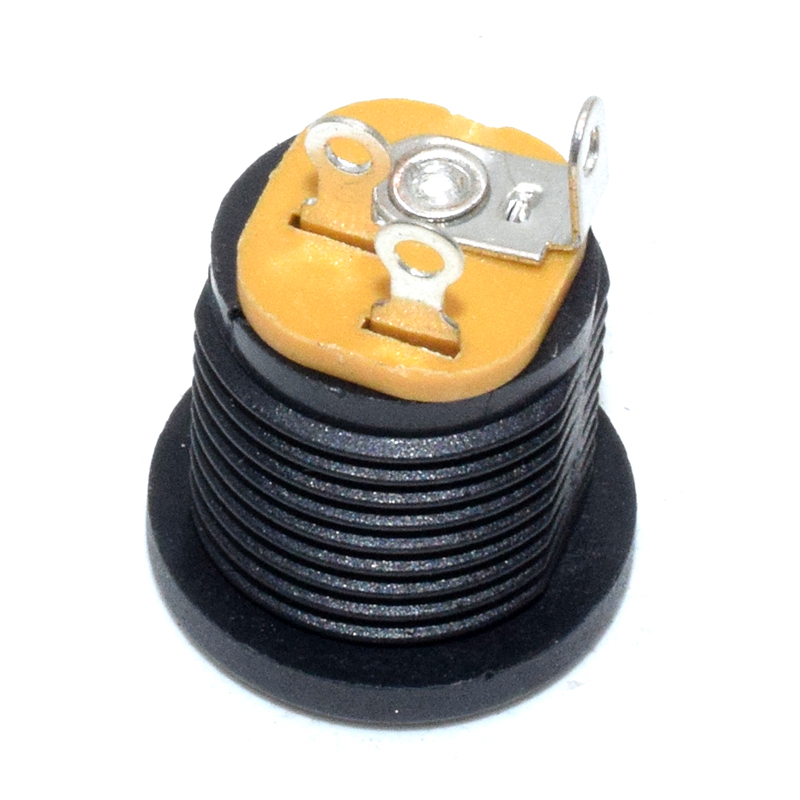

Metal DC-021, DC jack, DC power socket interface, 5.5-2.1MM DC-005
  • Metal DC-021, DC jack, DC power socket interface, 5.5-2.1MM DC-005
  • Metal DC-021, DC jack, DC power socket interface, 5.5-2.1MM DC-005
  • Metal DC-021, DC jack, DC power socket interface, 5.5-2.1MM DC-005

Metal DC-021, DC jack, DC power socket interface, 5.5-2.1MM DC-005

  • SKU: 6069
  • Shipping Weight: 2.5g
775:viewed
US$0.07
  (9224 Pieces available)
Add to Wishlist
Hot Products
Terminal 2.54-4P
PJ-320B 3.5mm Socket
3.5mm four-joint headphone repair connector 3.5 welding head 3.5
3.5MM Jacek With Terminal
  • Description
  • Customer Reviews
  • Payment & Shipping

Product description Temperature:-30C to 70C Rated Load:DC30V/0.5A Contact Resistance:<=0.03 ohm Insulation Resistance:>=100 Mohm Withstand Voltage:AC 500V(50Hz)/min Actuating Force:3-20N Suitable Plug Size: 2.1x5.5mm
