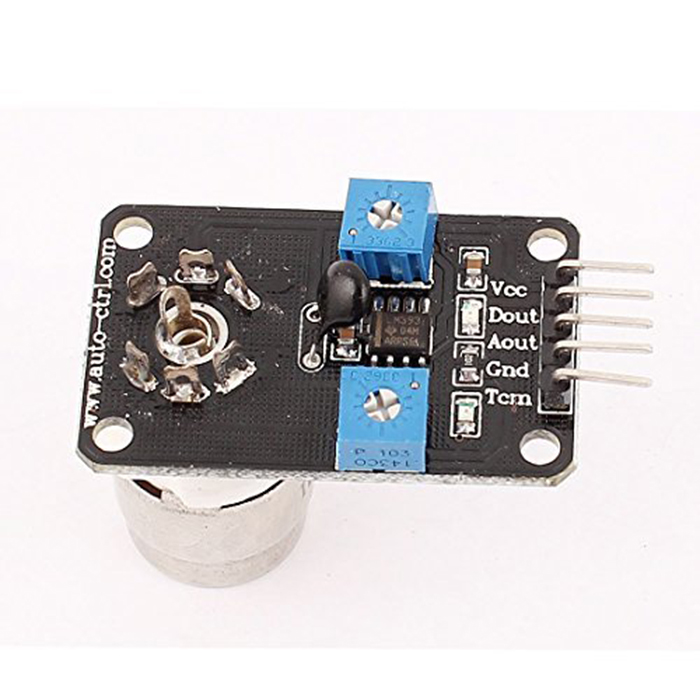

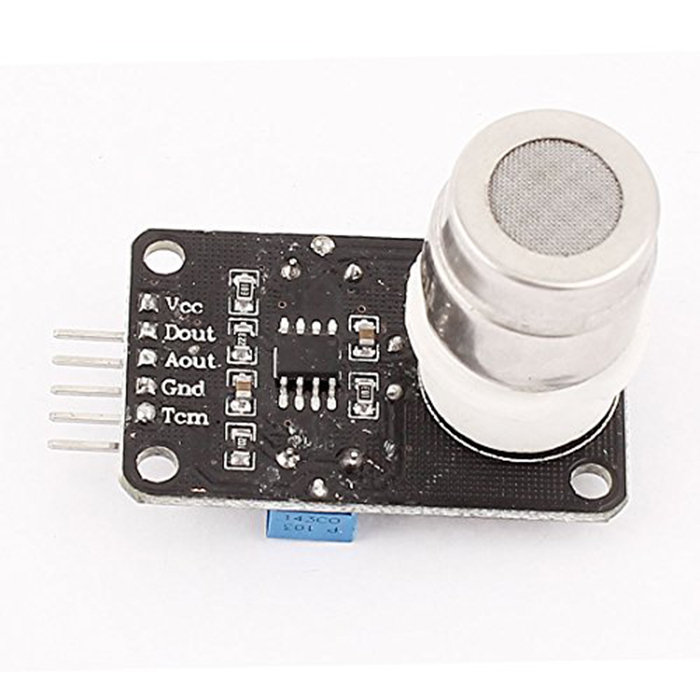

MG-811 CO2 sensor 5pins

product description

Working voltage: DC 6V

Detection range: 0-100 ppm

Output voltage: 0-2V

Working temperature: -10 ° C to + 50 ° C

PCB board size: 32 x 22 x 30mm

Signal output indication

Dual signal output: analog signal output and TTL level signal output.

The analog signal output range is 0-2V.

It has high sensitivity and high selectivity for carbon dioxide.

Used in home environments, underground warehouses, tunnels, and is ideal for carbon dioxide (CO2) concentration control equipment.


Net weight: 16 grams; Package content: 1 carbon dioxide sensor module

Chip: LM393; Detection density range: 0-10000ppm
