Mini NRF24L01 Wireless Module

Product Features
The module is protected in an antistatic bag and packaged in a clear, resealable plastic bag with an Addicore SMD nRF24L01 + card
There are many resources available online, such as tutorials, datasheets, and notes
Automatic confirmation and automatic retransmission
Applications: Remote control systems such as wireless peripherals, remote controlled vehicles and consumer electronics, wireless voice over IP (VoIP), wireless sensor networks, wireless networks, home and business automation
Multi-frequency: 125 frequency points to meet the requirements of multi-point communication and frequency hopping communications
product description

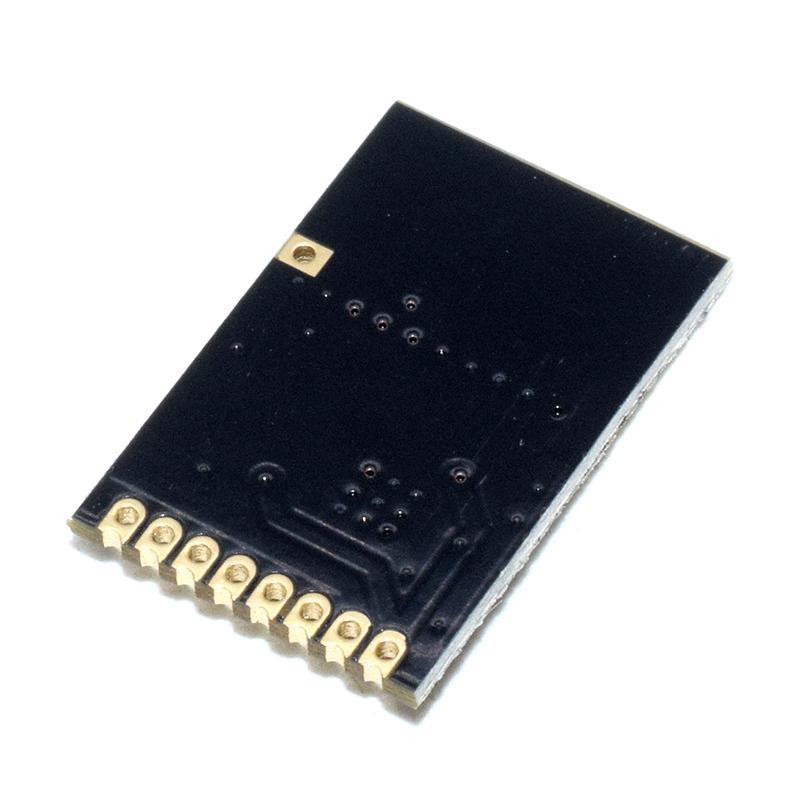

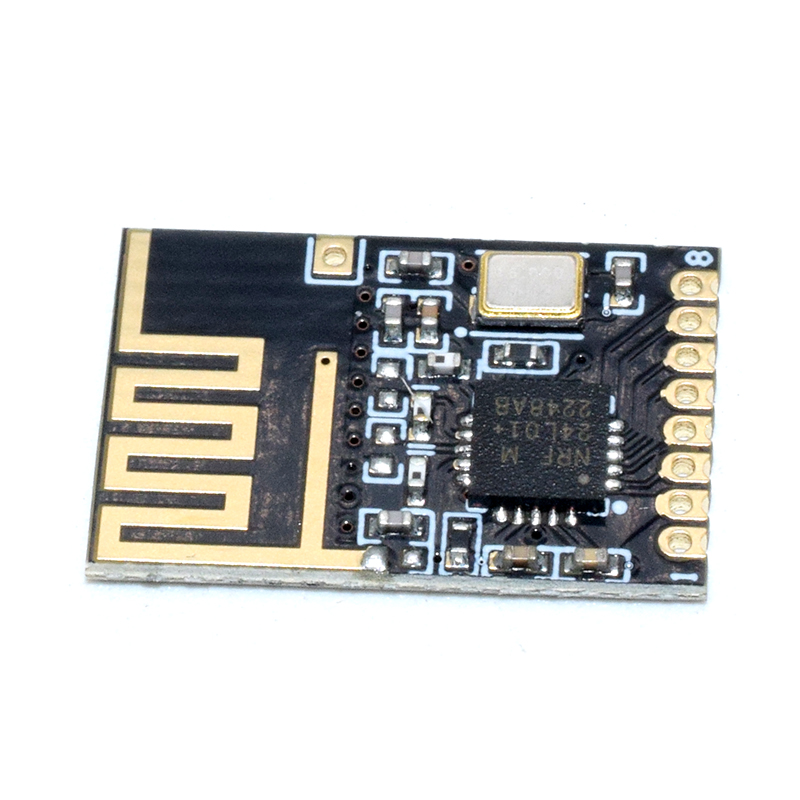

This is the SMD version of the nRF24L01 + module. It has a castle-shaped mounting hole (also known as a castle-shaped or castle-shaped structure) with 0.05 "spacing (1.27mm) pitch so it can be soldered to a PCB (board-to-board soldered installation).

product content:
? 2 - SMD nRF24L01 + module
? 1 - Anti-static bag
? 1 - Addicore SMD nRF24l01 + information card
Specifications:
? The Addicore nRF24L01 + is a 2.4GHz ISM band transceiver
? On-board support components and 2.4GHz antenna, no additional hardware required
? Under ideal conditions, communication distances up to 262 feet (80 meters)
? The host microcontroller can be configured for nRF24L01 + via SPI. Configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power and data rate (data rate: 250kbps, 1Mbps and 2Mbps)
? On-chip voltage regulator can accept 1.9 to 3.6V voltage. When using nRF24L01 + in an Arduino, power is supplied to the nRF24L01 + using the 3.3V output pin on the Arduino board
? 5V tolerant inputs allow the SPI pins to be connected directly to the Arduino
? Up to 11.3mA transmit power, 2Mbps receive power, 13.5mA receive power, 900nA power down and 26uA standby
? Gaussian Frequency Shift Keying (GFSK) modulation and Fast Automatic Gain Control (AGC)
? Interrupt request (IRQ) (eg Arduino), wake-up from sleep mode when the module receives a data transfer
Automatic confirmation and automatic retransmission
? Module spacing: 1.27mm (0.05 ")
? Dimensions: 18mm (0.7 ")) L x 12.5 mm (0.5") W x
1.9 mm (0.07 ") high ? Weight: 0.56 grams (0.02 ounces)
