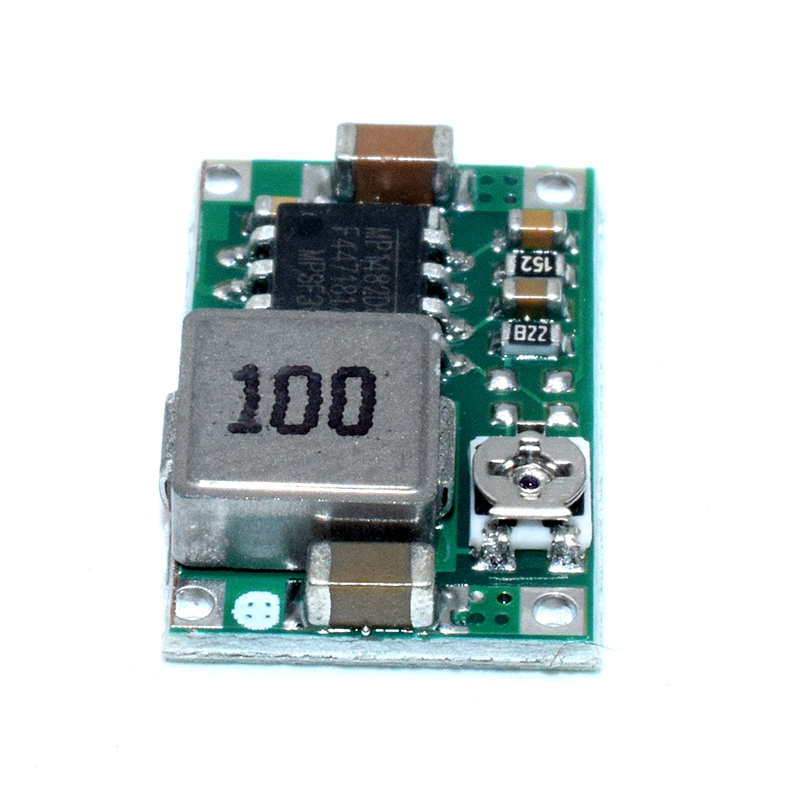

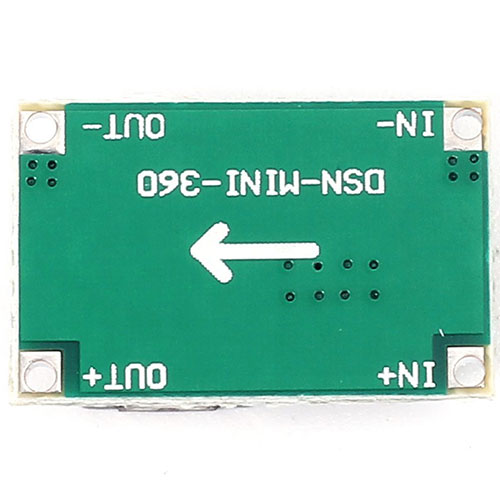

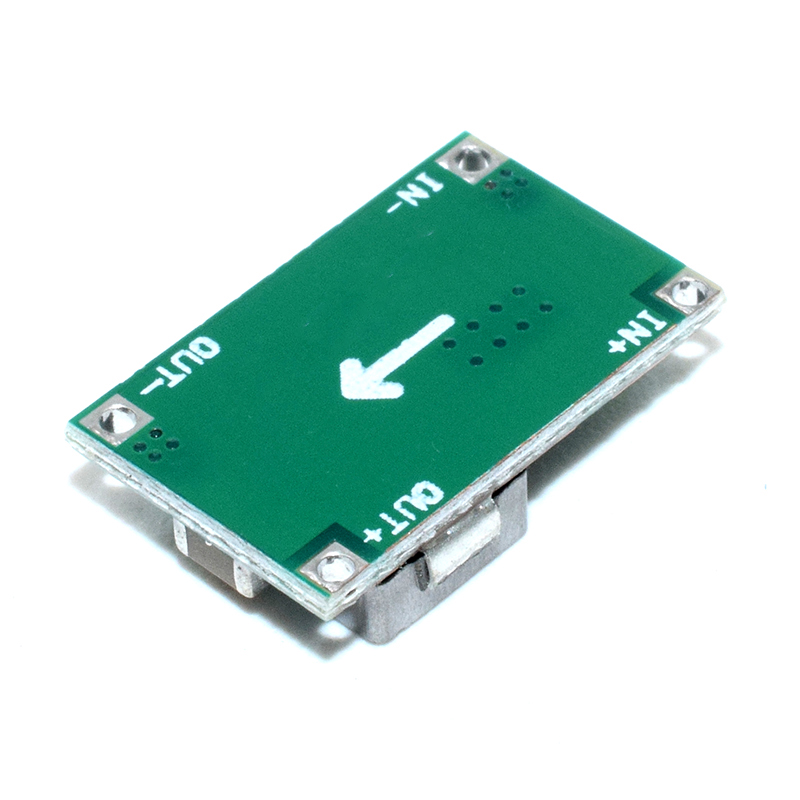

MP2307DN Mini-360 Buck DC-DC Converter Step Down Module 4.75-23V to 1-17V product description Features: 2. Module Properties: Non-isolated buck 3. Rectification: synchronous rectification 4. Input voltage: 4.75V-23V 5. Output voltage: 1.0V-17V 6. Output current: reduce the value of 3A, long 1.8A 7. Conversion efficiency: 96% (maximum) 8. Switching frequency: 340KHz 9. Output ripple: 30mV (no load) Load Regulation: ± 0.5% 11. Voltage regulation rate: ± 2.5% 12. Operating temperature: -40 ℃ to +85? 13. Dimensions: 17 * 11 * 3.8 (L * W * H) (mm) 14. Features: The use of integrated power inductor and synchronous rectifier control chip, smaller, more efficient.
