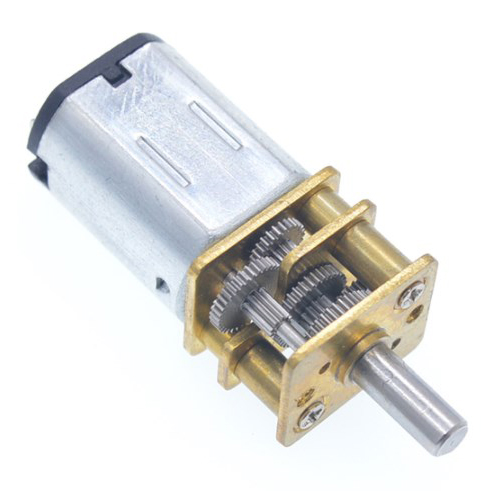

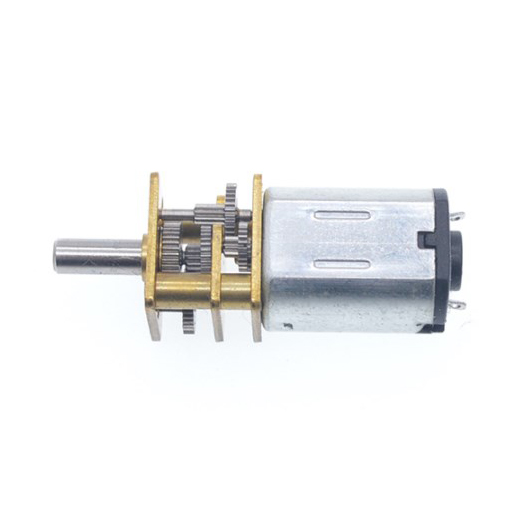

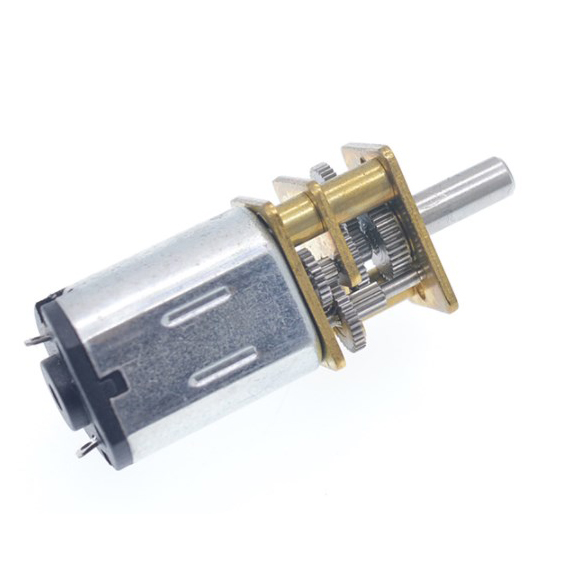

N20 gear motor for smart car 6V 200rpm
-
标准使用条件 Standard operating condition
|
NO.
序号
|
Item
项目
|
|
|
1.1
|
Rated voltage
额定电压
|
Motor teminal voltage ：6VDC
马达端子电压:6VDC
|
|
1.2
|
Rotation direction
旋转方向
|
CW（When viewed from output side with +ve voltage applied to +ve terminal）
顺时针方向旋转（轴突视之，电压正极接端子正极）
|
|
1.3
|
Voltage range for use
工作电压范围
|
DC3V~12V
|
|
1.4
|
Operating conditions
使用环境
|
-20℃~60℃ ordinary humidity常规湿度
15%~90%RH (no condensation of moisture/不凝露)
|
|
1.5
|
Storage conditions
贮存环境
|
-20℃~70℃ ordinary humidity常规湿度
15%~75%RH (no condensation of moisture/不凝露)
|
|
1.6
|
Appearance
外观
|
Surface without oxidation scratch damage, etc
表面无氧化、损伤、变形等
|
2. 电机性能 Electrical characteristics
|
NO.
序号
|
Item
项目
|
Measuring condition
测试条件
|
Specification
规格
|
|
2.1
|
No-Load current
空载电流
|
At Rated voltage and no load
额定电压及无负荷下测试
|
≤50mA
|
|
2.2
|
No-Load speed
空载转速
|
200pm.±10 %
|
|
2.3
|
Rated Load
额定负荷
|
At Rated voltage and rated load
额定电压及标准负荷下测试
|
{C}{C} {C}
|
|
2.4
|
Rated current
额定电流
|
|
|
2.5
|
Rated speed
额定转速
|
|
|
2.6
|
Stall Torque
堵转力矩
|
Test under rated voltage locked rotor
额定电压堵转下测试
|
1.35KG.CM
|
|
2.7
|
Stall Current
堵转电流
|
Test under rated voltage locked rotor
额定电压堵转下测试
|
≤800MA
|
|
2.8
|
Starting Voltage
始动电压
|
Connect the voltage into the ends
将电压直接接在马达端子之间
|
2VDC
|
|
2.9
|
Insulation resistance
绝缘电阻
|
At DC 100V, measured between housing case and terminal.
在 100V 直流电压下，电机引线与外壳间测量
|
≥ 1MΩ
|
