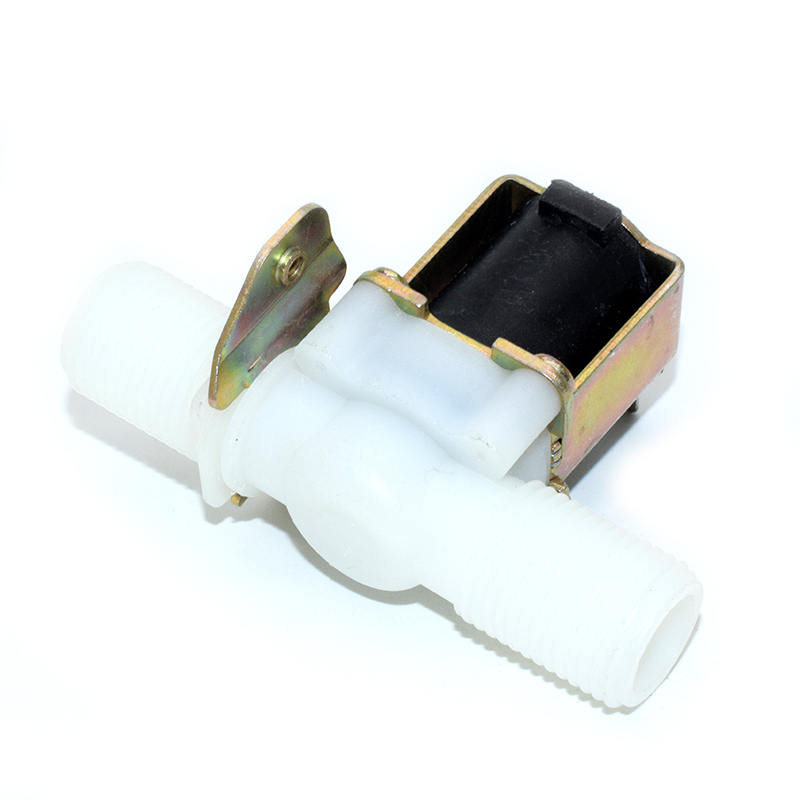

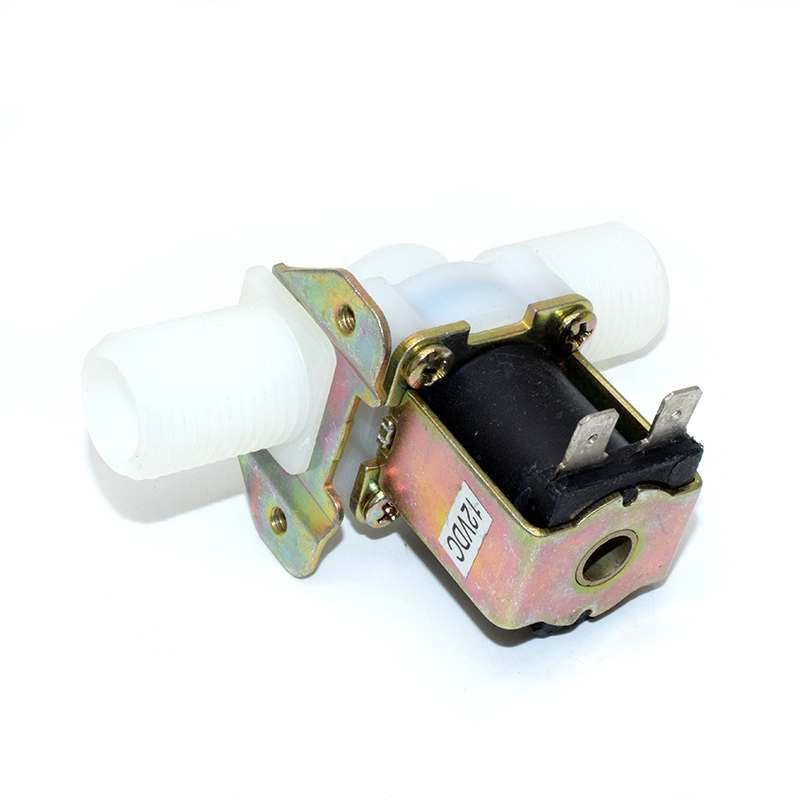

Normally Close DC12V Inlet valve Water Level G1/2 DN12
Water inlet valve: the water pressure from the tap water pipe is 0.2~0.8map, also known as the pilot solenoid valve, which is controlled by small holes.
Drain valve: refers to the pressure of water discharged from the water tank, and the water pressure is less than or equal to 400mm water column. If it is greater than this pressure, the water may not be boiled. This valve is also called a direct open valve. Please decide which water pressure should be suitable for you before choosing. Voltage: DC12V, AC220V, DC24V
(4 points horizontal inlet valve)
Working pressure: 0.1-0.8MPa
Interface: water inlet 4-point external thread, water outlet 4-point external thread
Installation method: horizontal installation
Main material: plastic
Connection form: thread
Type: pilot operated solenoid valve
Nominal diameter: g1/2 ″ (mm)
Applicable temperature: 0~70 (℃)
Product model: aqt15sp
Normally closed solenoid valve
Pressure range: 0.02~0.8 (MPA)
It is suitable for all types of water dispensers, automatic washing machines, induction sanitary ware, shower rooms, computer sauna steam rooms, electric water heaters and other electrically controlled water and steam equipment. This solenoid valve product has passed CQC national safety certification and CE certification; Comply with the European Directive on the abandonment of electronic and electrical equipment (WEEE Directive) and the directive on the restriction of the use of certain hazardous substances in electronic and electrical equipment (RoHS directive).
Common terms: normally open, normally closed, water inlet, water discharge
Normally open solenoid valve: closed when energized and open when not energized
Normally closed solenoid valve: open when energized and close when not energized
Water inlet valve: the water pressure from the tap water pipe is 0.2~0.8map, also known as the pilot solenoid valve, which is controlled by small holes.
Drain valve: refers to the pressure of water discharged from the water tank, and the water pressure is less than or equal to 400mm water column. If it is greater than this pressure, the water may not be boiled. This valve is also called a direct open valve.

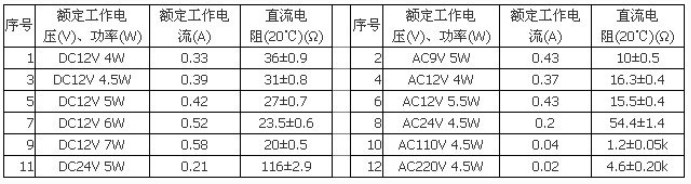

The optional parameters of normally open and normally closed solenoid valves are:
Voltage: DC6V; DC12V； DC24V； AC220V ； AC12V ； AC24V
Switch status: normally open solenoid valve, normally closed solenoid valve. There is no normally open valve for ac.
Water outlet direction: parallel direct water outlet (straight water outlet), vertical water outlet (turn 90 degrees water outlet).
Interfaces: water inlet and outlet interface 4 points (external thread 20mm); 4 branch transformer 12mm socket pipe;
Inlet and outlet 12mm casing; 2 pressure dividing pipe (need to be equipped with crimping cap); 6 points (25mm) outer wire.
Working water temperature: 70 ℃, 100 ℃ (drain valve). High pressure of inlet valve and low pressure of drain valve
