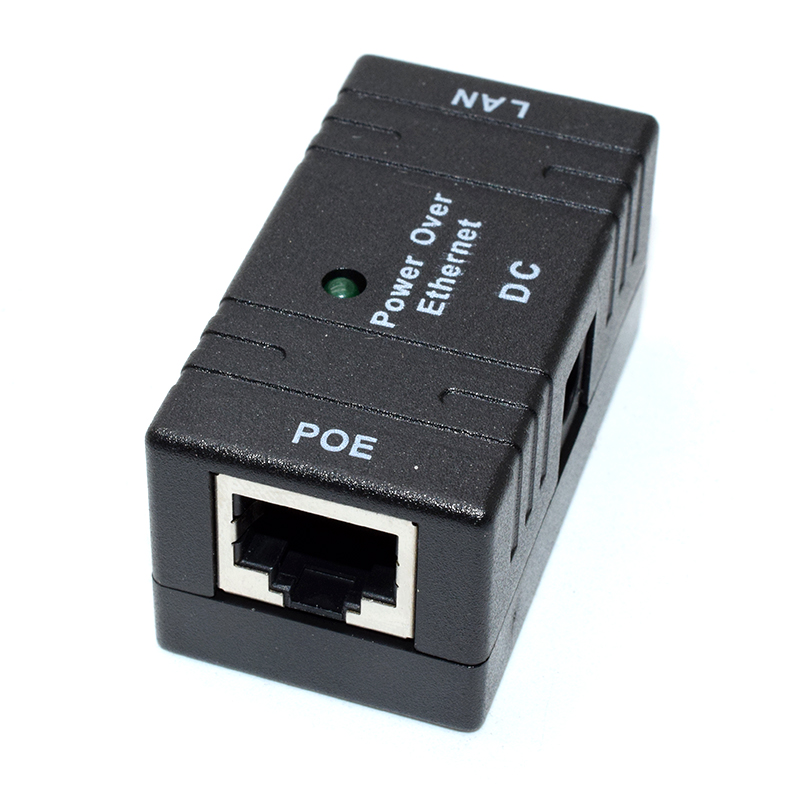

POE splitter combiner

product description
1. POE splitter combiner data is transmitted over Cat5 (1/2; 3/6) pins and is operated using POE power (4/5; 7/8) pin transfer techniques.
2. Adopt simple wall, simple connection, easy to set up the power for better solution, provide simple setting method, and can save unnecessary wiring cost for complicated environment.
3.DC positive external negative electrode 5.5 × 2.1mm, voltage DC 5 ~ 48V
Maximum current 2000ma; POE power combiner also known as road (not including the power part); Number of ports: 2
POE = Power (45 + 78 -) + Data (1236)
LAN = Data (1236)
DC = power adapter (using a 5V power adapter, Ethernet cable power not exceeding 10 meters, 9V, 12V, 15 power adapters; online power supply not exceeding 30 meters, 24V power adapter; line power distance can not exceed 80 meters, 48V adapter Power; power cord can reach 100 meters away.
4. Shielded RJ45 connector

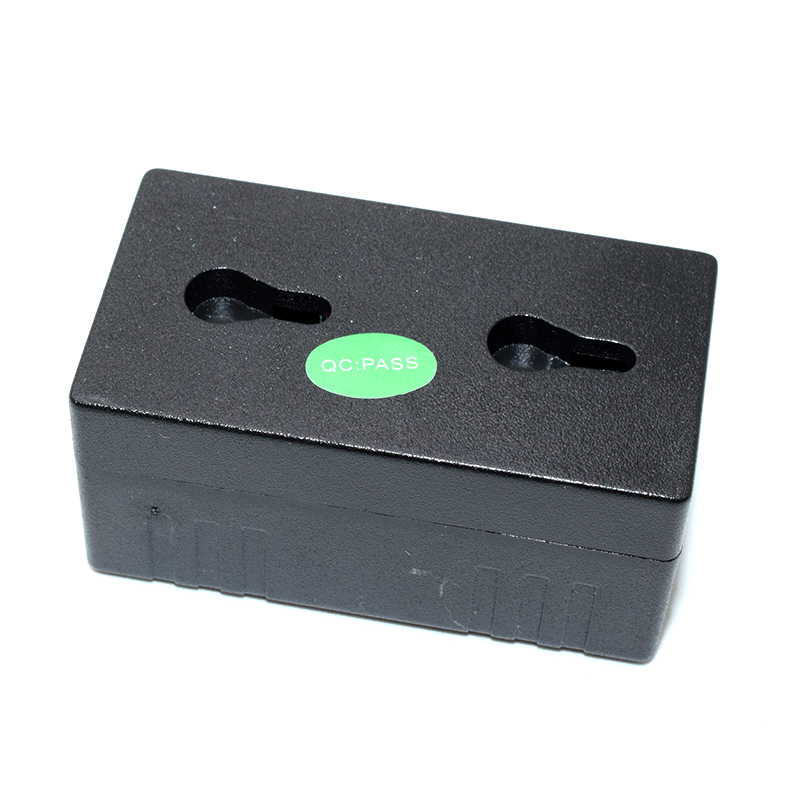

5. Can be used in the wall self-tapping screws, ears can also be free to set the double-sided adhesive on the wall, easy to install
specification:
Material: fire ABS + PCB board
Colour: Black
Applications: Internet telephony, web video head, AP, bridge, POE network switches, network cable and power supply.
Applicable products: digital, network
Input voltage range: DC5-48v
Output voltage: 5-48V
Ethernet cable connector: RJ-45
Data: PIN 1/2 3/6
Power: PIN 4/5 + 7/8
Data input: connect PC / HUB / switch
Size: 5 x 2.2 x 2.4 cm / 1.97 x 0.87 x 0.95 "
Weight: 66 grams
