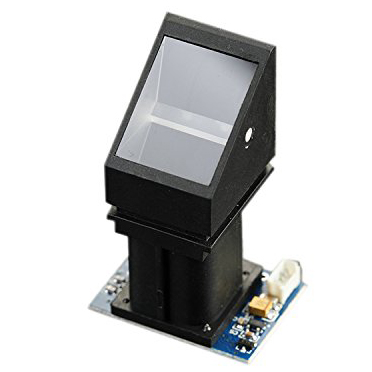

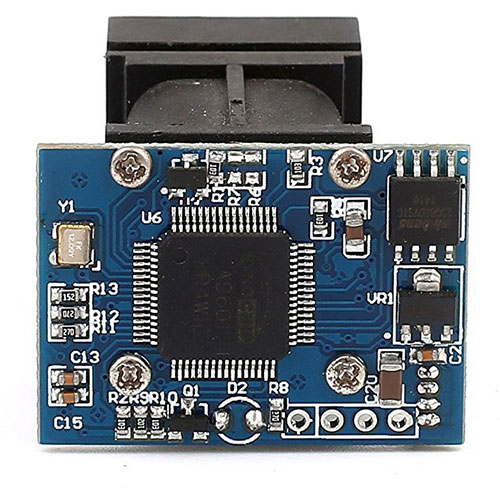

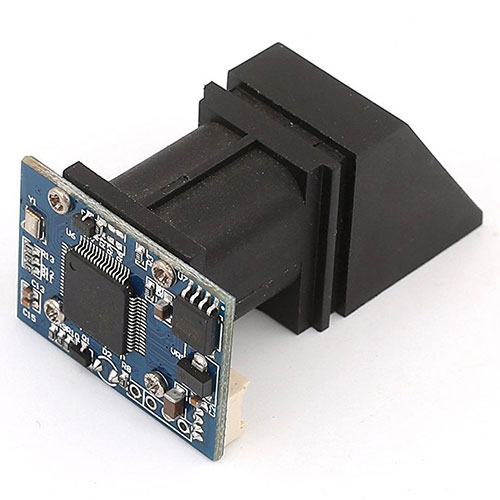

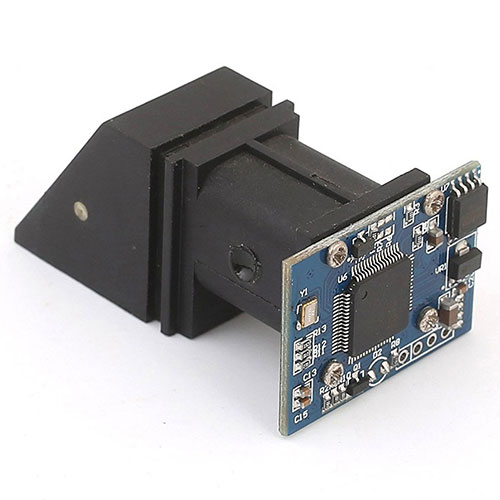

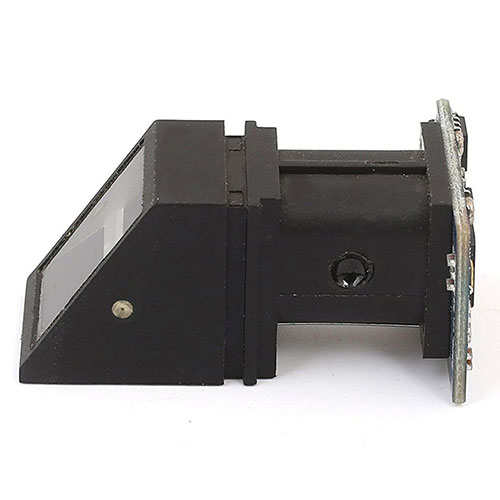

R305 Fingerprint Reader Module

product description
1. Integrated image acquisition and algorithm chip, integration
2. Fingerprint reader can be developed twice, can be embedded in a variety of end products
3. Users can be secondary development, can be embedded into a variety of end products, such as: access attendance, safe, car locks, etc.
4. Low power consumption, low cost, small size, excellent performance
5. Professional optoelectronic technology, accurate module manufacturing process
6. Good image processing capability to successfully capture images up to 500 dpi resolution
Data capture, print, hash, and search 7.Connect any microcontroller or system that has TTL serial numbers and send packets

:specification
Fingerprint sensor type: Optical
Sensor life: 1 million times
Static indicator: 15KV
Backlight: bright red
Interface: USB1.1 / UART (TTL logic level)
RS232 communication baud rate: 4800BPS ~ 115200BPS can be replaced
Size: 55 * 32 * 21.5mm
Image acquisition surface: 15 × 18 (mm)
Verification speed: 0.3 seconds
Scan speed: 0.5 seconds
Character file size: 256 bytes
Template size: 512 bytes
Storage capacity: 980
Security Level: 5 (1,2,3,4,5 (highest))
FAR: <0.001%
FRR: <0.1%
Resolution: 500DPI
Voltage: 4.2-6.0 VDC
Working current: Typical ≤ 90mA, peak 150mA
Matching method: 1: N
Working environment temperature: -20 ~ 45 ℃

product information
Product size 2.2 × 0.8 × 1.3 inches
Product weight 2.4 ounces
