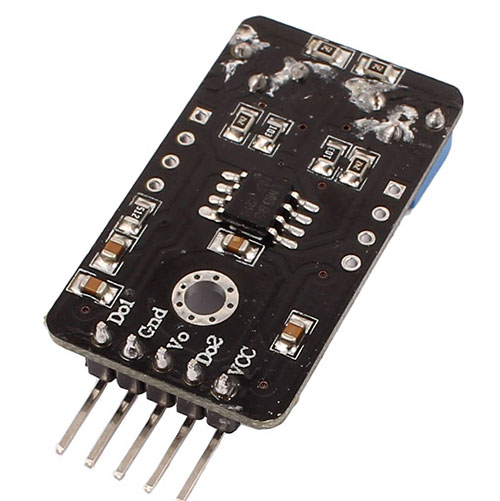

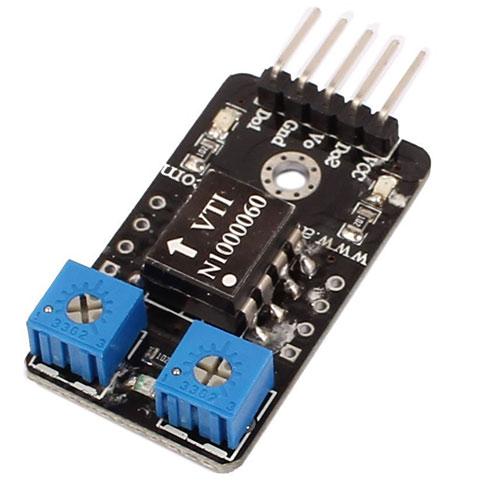

Single-axis tilt sensor module, SCA60C tilt sensor module

Product features
Size:20mm X 8mm X 35mm
Main chip: LM393, tilt sensor probe
Working voltage: DC5V

Product features:
1, the angle signal analog voltage output [0-180 degree corresponds to 0.5-4.5V] can be single chip AD acquisition;
2, two-way tilt signal alarm output;
3, the output valid signal low level indicator light;
4, when the output alarm signal left leaning green light, the right tilt tilt right output alarm signal yellow light;
5, the angle of the alarm range 0-90 degrees 90-180 degrees, the whole range adjustable, adjust the accuracy of 1 degrees.
6, with the installation hole to facilitate the installation of fixed;
7, the circuit board tilt signal for the TTL high and low level, can be directly connected to the microcontroller IO port.
Application: intelligent body balance testing, teaching demonstration, product development, etc.
