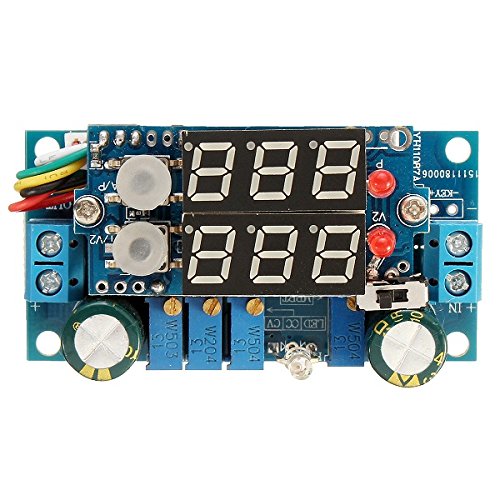

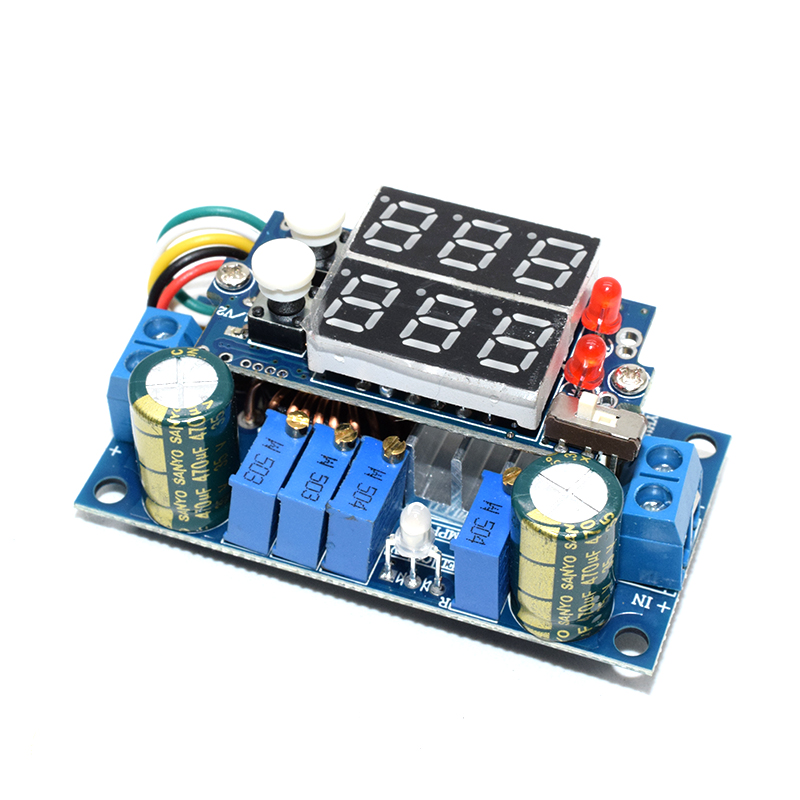

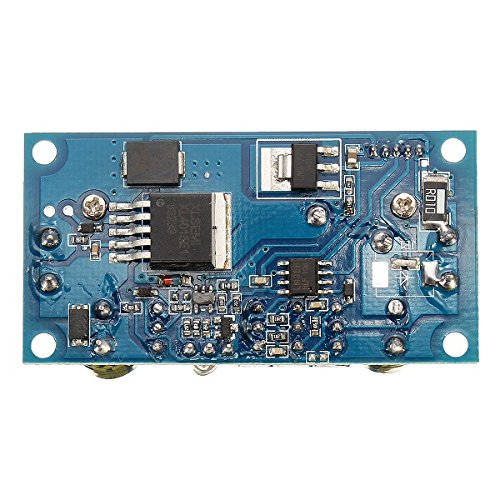

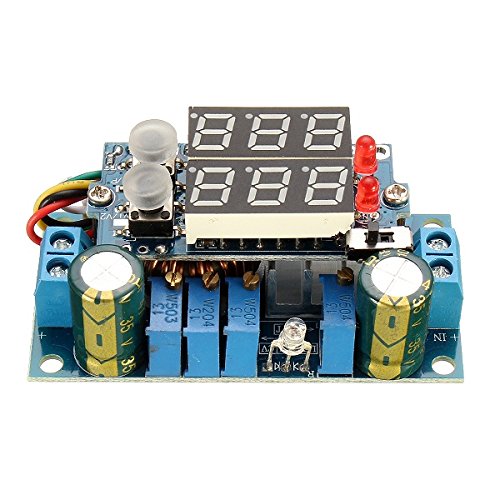

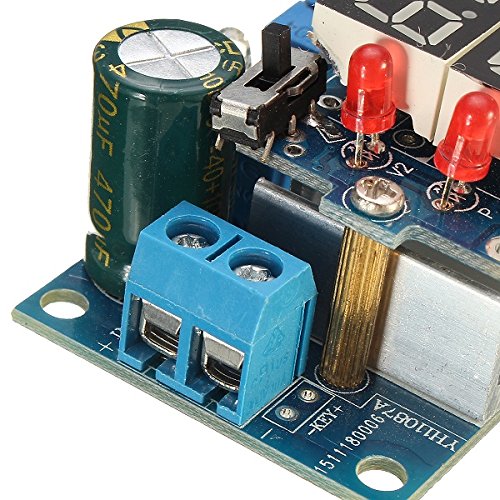

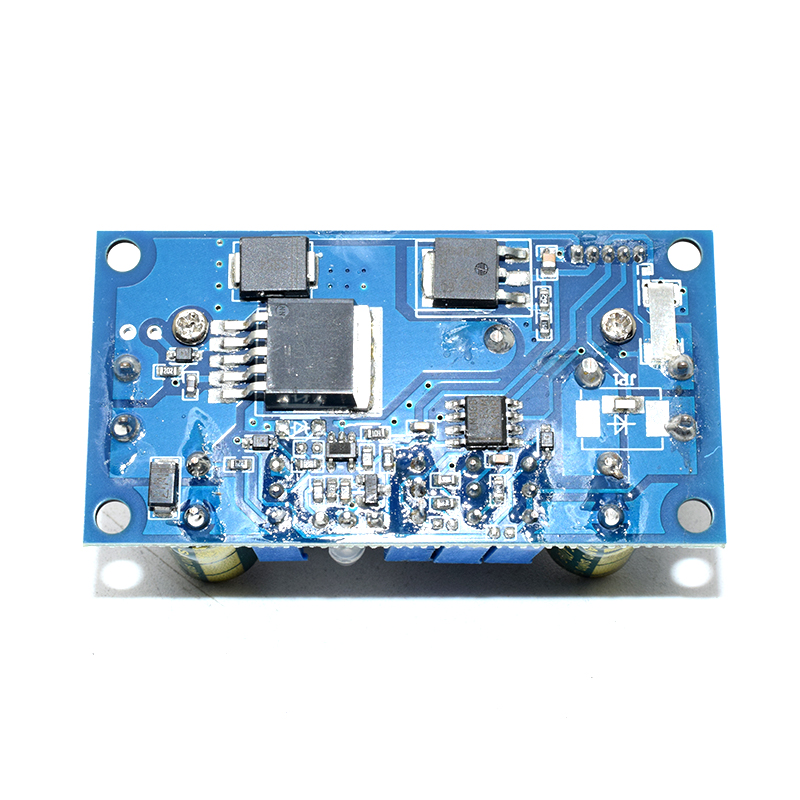

Solar Panel Controller 5A DC-DC Step-down CC/CV Charging Module

product description
5A MPPT solar panel controller DC-DC buck CC / CV charging module display LED
5A step-down constant voltage constant current MPPT
Module Properties: Non-Isolated Buck Module (BUCK)

Input voltage: 6 ~ 36 V.

Output voltage: 1.25 ~ 32 V continuously adjustable (default output 5V)

MPPT voltage setting range: 6 ~ 36V

Output current range: 0.05 ~ 5A (default output current is 3A)

Turn signal output range: 0.01 ~ 5A (default turn signal current 0.3A)

The current range will have some differences because the part parameters are wrong.

Operating temperature: -40 ~ +85 degrees

Working frequency: 180KHz

Conversion efficiency: up to 95% (efficiency, input and output voltage, current, pressure)

Short circuit protection: yes

Over-temperature protection: Yes (automatic shutdown output after over-temperature)

Input reverse polarity protection: None (if necessary, please add diode string)

Output anti-reverse protection: no output must be connected to the battery plus blocking diode, otherwise it will burn the module.

Installation: 4 3mm screws

Connection: IN is input, OUT is output

Multi-function dual display: input voltage, output voltage, output current, output power.

Charging light: full of electricity when the red, bright green. Turn signal is the output current detection.

Module Size: 60 x 31 x 22 mm (without instrument)



application:

It can support high-power LED.

2. Can supply electronic equipment.

3. For a variety of battery charging, you can observe the charge status.

4. As a car power, it can power your cell phone or digital products.

5.DIY voltage regulator, with constant current function, short circuit protection, to protect the load.

6. Charger for a variety of batteries, with MPPT function, the charging current can be doubled. Has a constant current and prevent the battery from overcharging, effectively protecting the battery.
