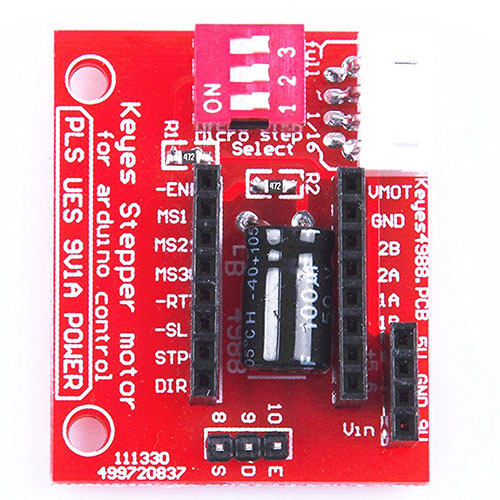

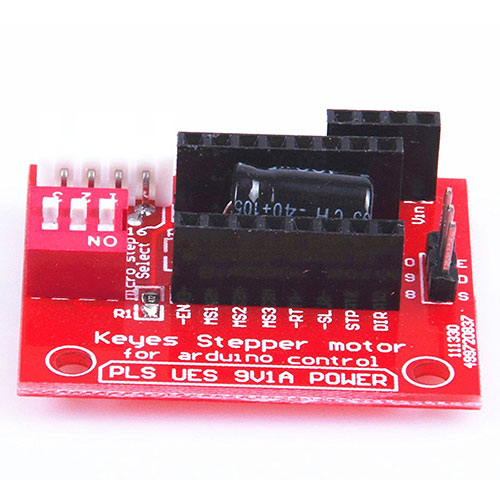

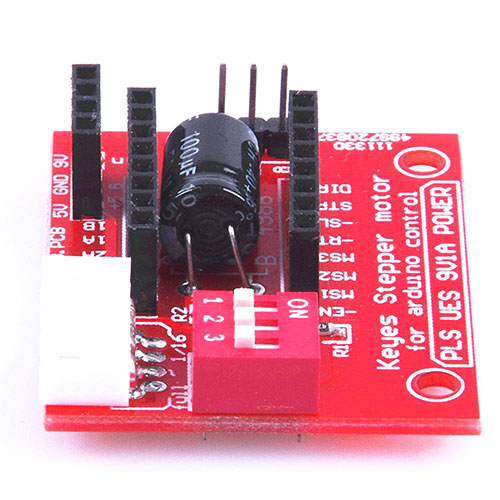

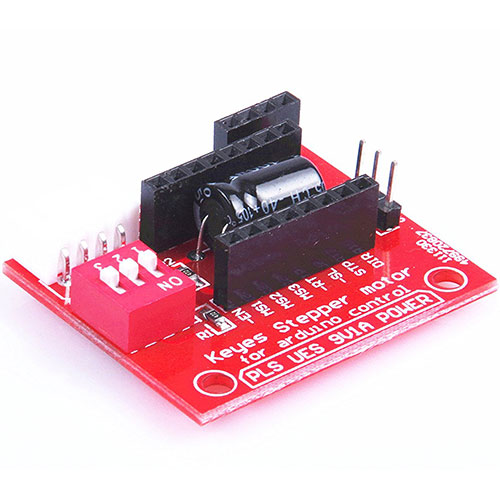

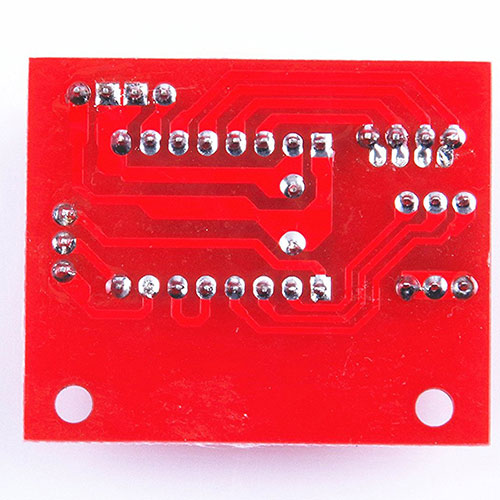

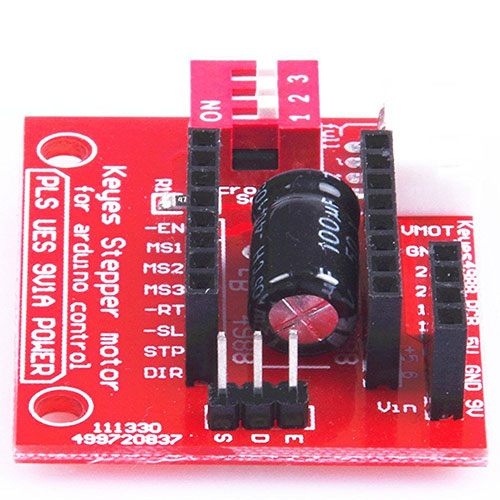

Product description You can use the A4988/DRV8825, insert the attention direction, otherwise it will burn the drive. Jumper hit ON DP indicating the position of 16 segments (4988) or 32 segments (8825). Jm is connected with the motor. Jv connection 5V and 12V-24V power supply. Jc ESDG are respectively connected with the EnableStepDirGnd driving signal output. Color:Red. Size:42*35*12mm. Weight:9g. Special reminder: Note installation direction, otherwise it may even drive the motherboard burned. Package included: 1* Stepper motor control board expansion board(A4988 DRV8825 are not included ). Product information Package Dimensions 4.3 x 3 x 0.4 inches Item Weight 0.48 ounces
