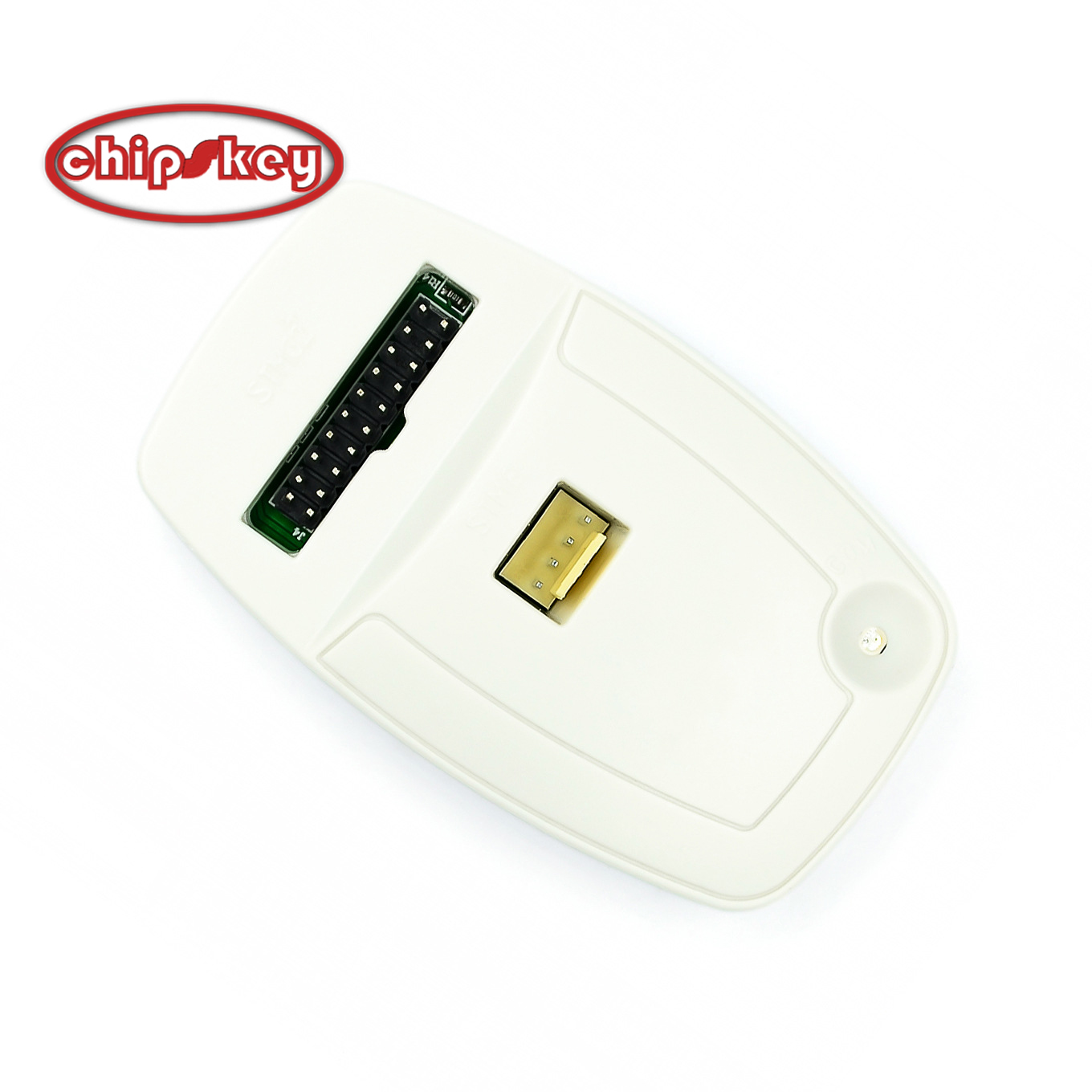

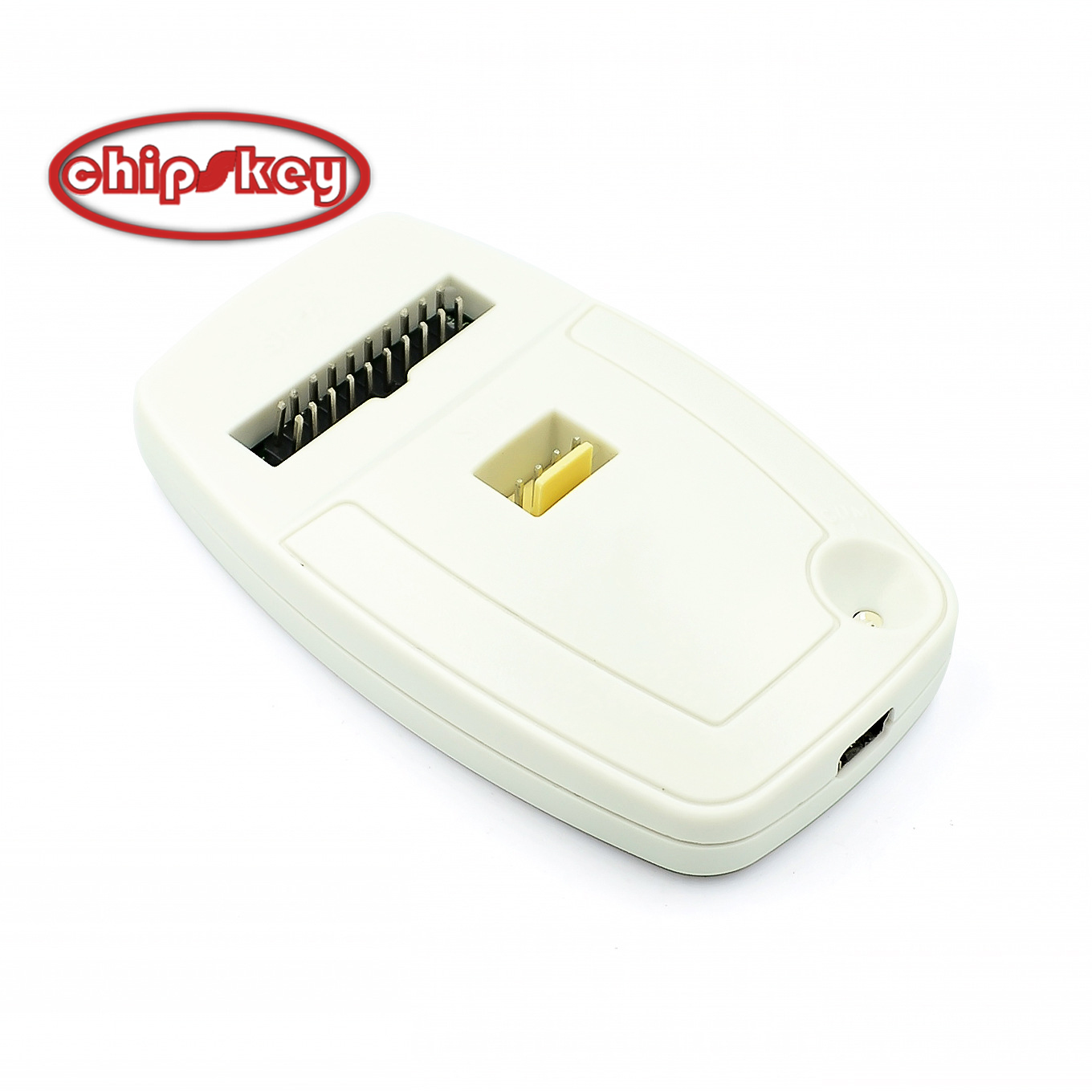

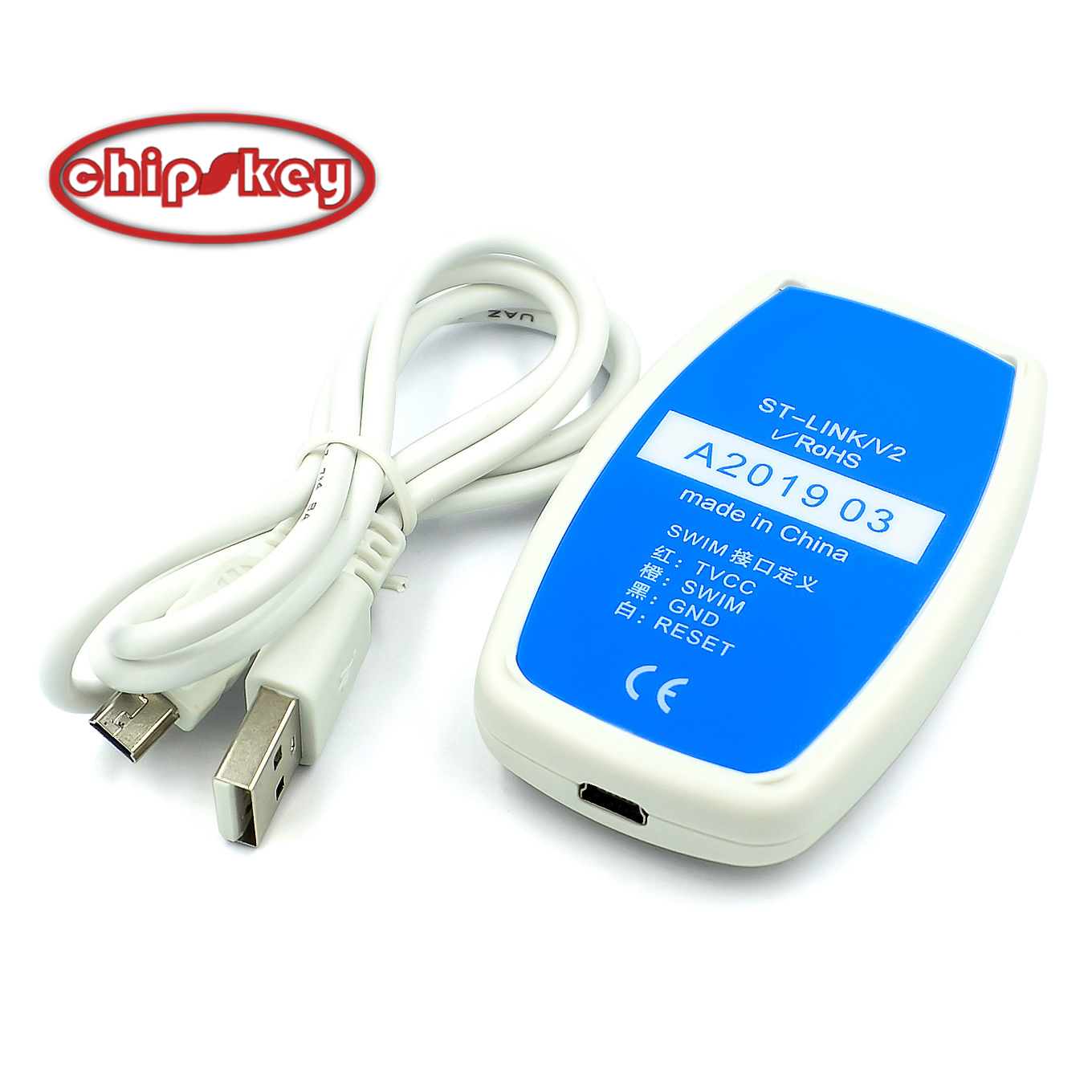

ST-LINK/V2(CN Version) ST MCU Microcontroller STM8 STM32 JTAG SWD SWIM In-circuit Debugger Programmer Emulator

product description ST-LINK / V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The Single Wire Interface Module (SWIM) and JTAG / Serial Wire Debug (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on the application board. STM8 applications use the USB full-speed interface to communicate with STMicroelectronics ST Visual Develop (STVD) or ST Visual Program (STVP) software. STM32 applications use the USB full-speed interface to communicate with the Atollic, IAR, Keil, or TASKING integrated development environment. Features 5V power supply via USB connector USB 2.0 full speed compatible interface USB Standard A to Small B cable SWIM-specific features * SWIM interface supports 1.65 V to 5.5 V application voltage * Support SWIM low speed and high speed mode * SWIM programming rate: 9.7 Kbytes / s at low speed, 12.8 Kbytes / s at high speed * SWIM cables are used to connect applications that use ERNI standard vertical or horizontal connectors * SWIM cable, connect to application through pin or 2.54 mm pitch connector - JTAG features * 1.65 V to 3.6 V The JTAG interface supports application voltage and 5 V tolerant inputs * JTAG cable for connecting a standard JTAG 20-pin pitch 2.54 mm connector Support Direct Firmware Update Function (DFU) Status LED flashes while communicating with the PC Operating temperature 0 to 50 ° C When connecting ST-LINK / V2 to a computer via the USB interface, a USB driver needs to be installed and should be installed properly. product information Product size 5.9 × 5.6 × 1.5 inches Product weight 6.4 ounces
