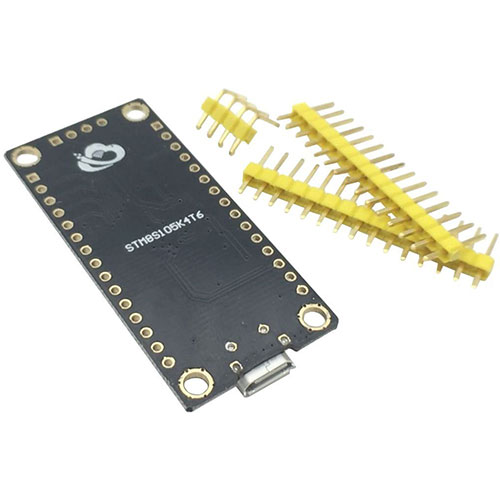

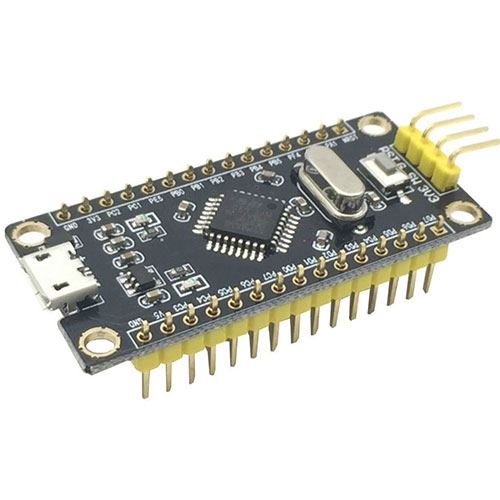

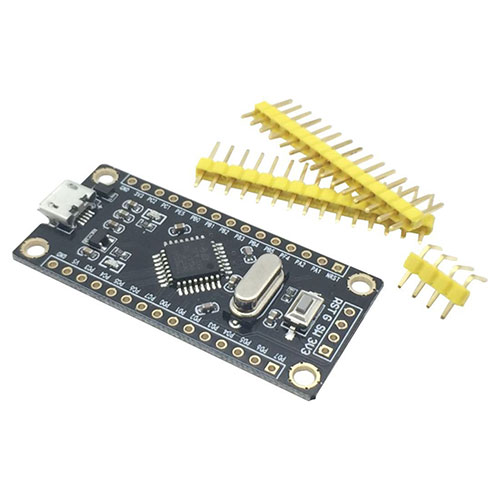

STM8S STM8S105K4T6 Development Board Module Core board MCU learning board

product description STM8S Development Board STM8S105K4T6 Core Board Microcontroller Learning Board Small System Board Gold Edition Nested interrupt controller with 32 interrupts 6 external interrupt vectors, up to 37 external interrupts Timer Two 16-bit general-purpose timers with 2 + 3 CAPCOM channels (IC, OC or PWM) Advanced Control Timer: 16-bit CAPCOM channel, 3 complementary outputs, dead-zone insertion and flexible synchronization 8-bit prescaler 8-bit basic timer Automatic wake-up timer 2 watchdog timer: window watchdog and independent house dog Communication Interface UART with synchronous clock output, smart card, infrared IrDA, LIN interface SPI interface up to 8Mbit / s I 2 C Interface Up to 400Kbit / s Analog-to-Digital Converter Analog-to-Digital Converter (ADC) 10-Bit, +/- 1LSB ADC Provides Up to 10 Channels, Scan Mode and Analog Watchdog Functionality I / O port 48-pin package up to 38 I / O chips, including 16 high sink current output, Very powerful I / O design, the reverse current has a very strong capacity Development support Single Wire Interface Module (SWIM) and Debug Module (DM) for online programming and non-intrusive debugging Pin is not soldered Package Contents: 1 STM8S105K4T6 core board Note: Light photography and different displays may cause items in the picture to differ in color from the real thing. Measurement tolerance is +/- 1-3cm.
