TB6612FNG Stepper Motor Driver

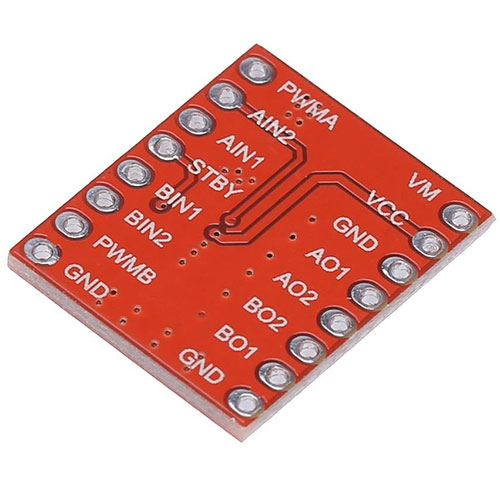

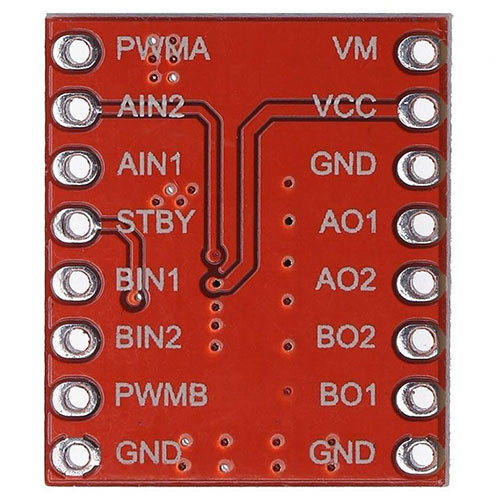

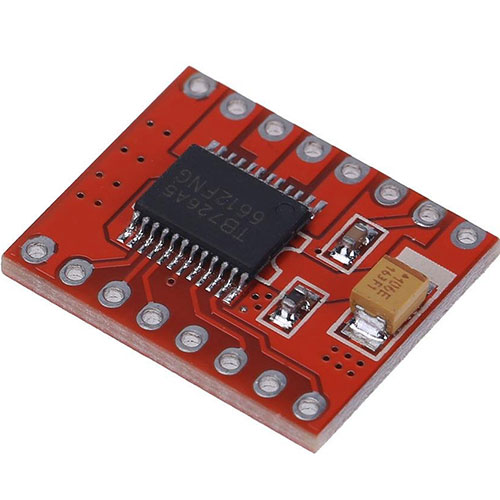

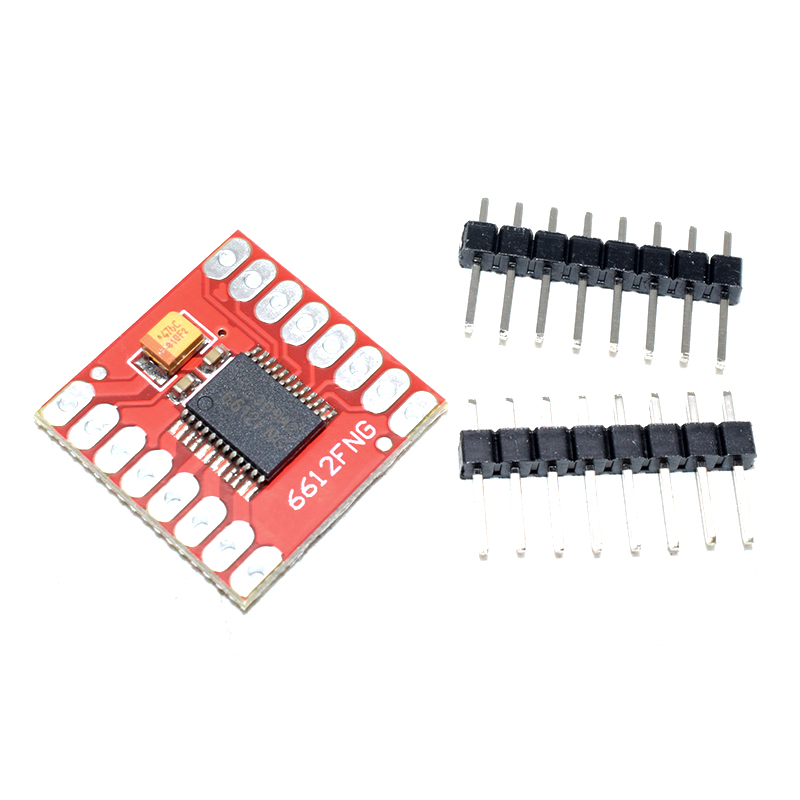

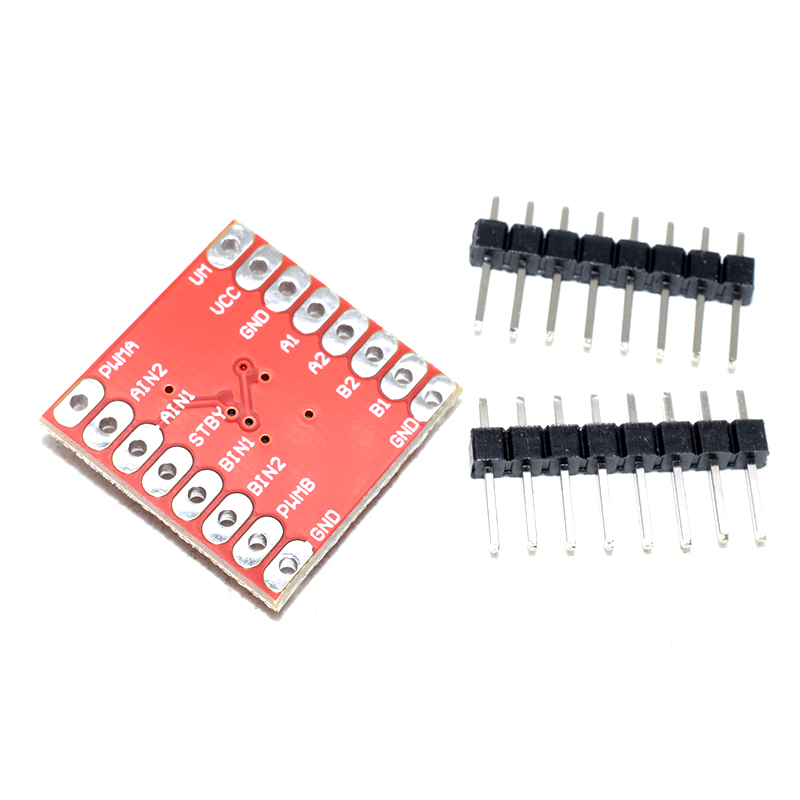

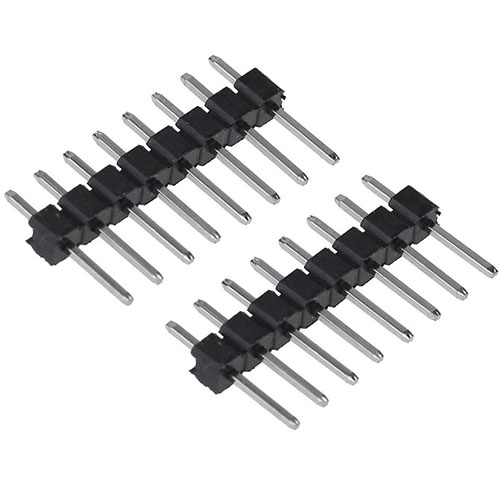

product description Features: Circuit Both power cords contain decoupling capacitors. All pins of the TB6612FNG are split into two 0.1-inch pitch connectors. These pins are arranged on one side with input pins on the other side. Standby control to save electricity. CW / CCW / short brake / stop motor control mode. Built-in thermal shutdown circuit and low voltage detection circuit. Filter capacitors on both supply lines specification: Supply voltage: VCC = 2.7-5.5V for VM = 15V max Output current: OUT = 1.2A (average) / 3.2A (peak) Size: about 2 X 2 cm / 0.79 X 0.79 in
