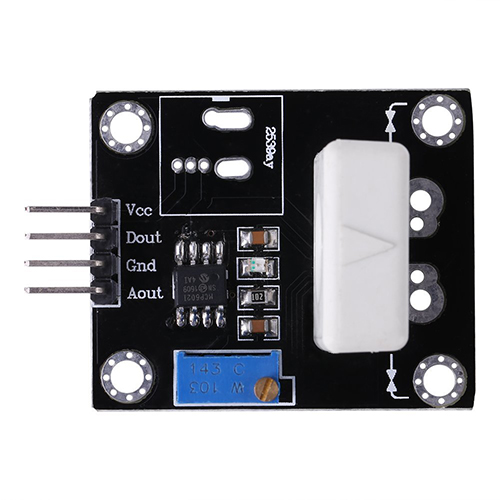

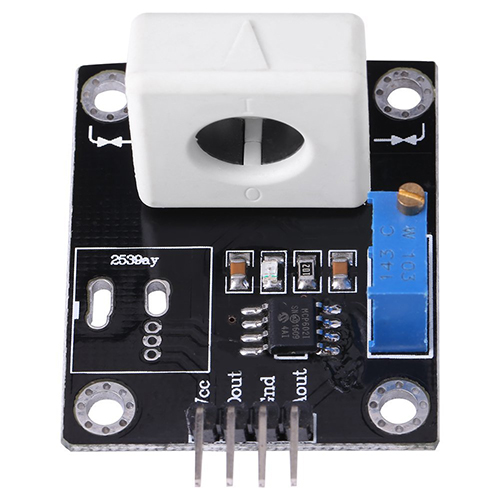

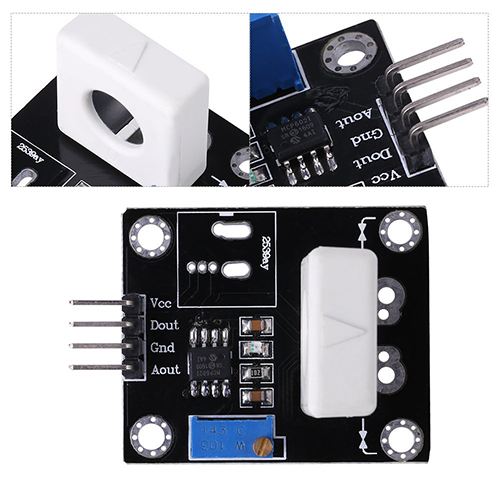

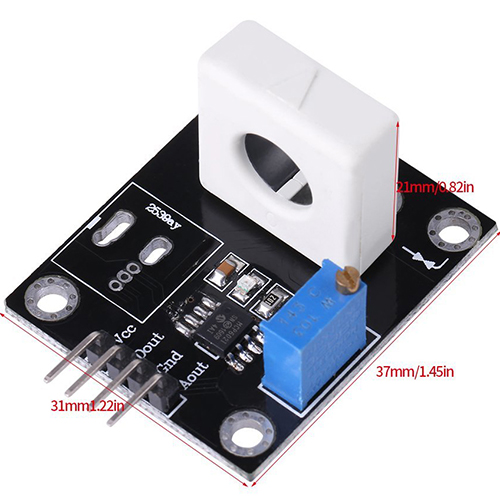

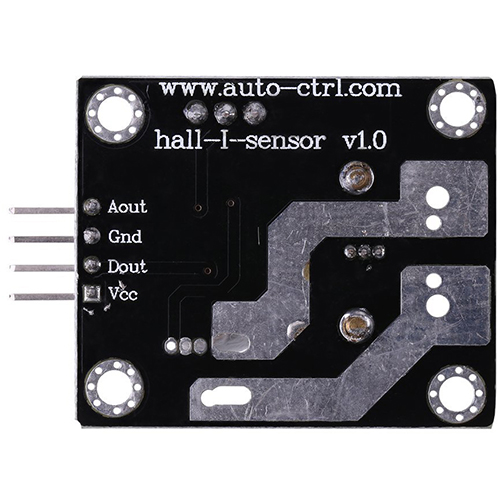

WCS1800 All Current Sensor Over-current Protection Module Detection

Product features This Hall current sensor with working voltage: DC 5V; Range of current detection DC±35A / AC 25A Practical current dectection with resolution of current detection 60mV/A Main chip: LM393 operational amplifier, WCS1800 Critical point of flow signal set is adjustable, setting resolution 0.5A Designed with signal output indicator light, output over current signal indication and mounting holes for convenient installation Product description Short Circuit Detector/Overcurrent Protection,Hall Current Sensor 70A Aegis Module Features: Main chip: LM393 operational amplifier, WCS1800 Working voltage: DC 5V; Range of current detection DC±35A / AC 25A Designed with signal output indicator light, output over current signal indication. Over current signal set threshold value is adjustable, set resolution 1.5A. Designed with mounting holes for convenient installation. Sampling current convert analog signal output, can connect to ADC, TTL level signal output and IO port of SCM. Widely used for smart car motor over-current detection, stall protecting current detection, short circuit protecting detection, teaching experiment, etc, convenience for secondary development. Specifications: Working Voltage: DC 5V Current Detection Range: DC±35A; Current Detection Resolution: 66mV/A Size: 37*31*21mm/1.45*1.22*0.82" Package Includes: 1 x Sensor Module Product details Item Weight: 0.32 ounces
