White Display/Electric vehicle electricity meter/Lithium battery lead-acid battery Chaowei GM/Automobile electricity display module

Product introduction:



1. The electricity quantity has reverse connection protection. The meter does not burn when it is connected reversely. There are only two lines. The connection is simple and convenient. The electricity quantity is PVC coated, and the upper surface is waterproof.



2. When the red positive and black negative leads are powered on, the percentage of power will be displayed. The remaining power will be displayed visually and correctly. Press the switch key to display the real-time battery voltage.



3. Applicable battery type: lead-acid battery 12V 24V 36V 48V 60V 72V 84V battery water battery, lithium battery: 2 series to 24 series. 3.7V lithium battery, ternary lithium battery, lithium polymer battery, etc.



4. The above specifications of the built-in keys can be modified by yourself (Note: the setting key only works when the power is on) If you have any questions, you can consult the customer service at any time.



5. The electricity meter is widely applicable to: electric battery cars, electric vehicles, various battery packs, UPS/EPS, emergency power supply, portable power supply, backup power supply, medical equipment, sweepers, balance cars, DC foggers, spray and various equipment with batteries.



Product parameters:



Working voltage: DC8-100V



Working current: less than 5MA



Display mode: LCD backlight



Opening size: 43 * 11.3mm (refer to the following figure for the size of glass surface)



Power size: 64 * 25mm (refer to detailed dimension drawing)

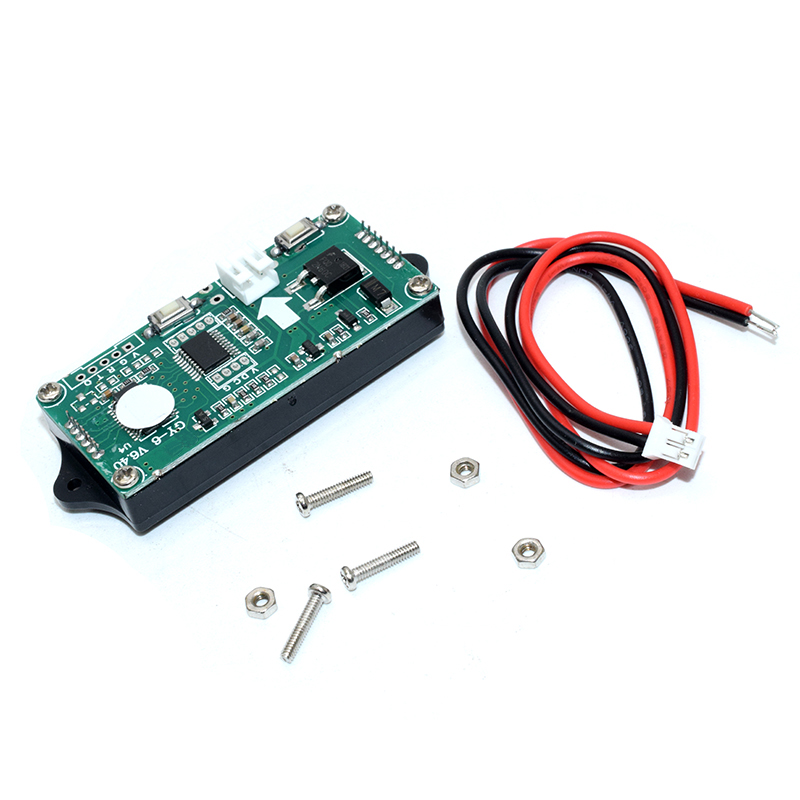

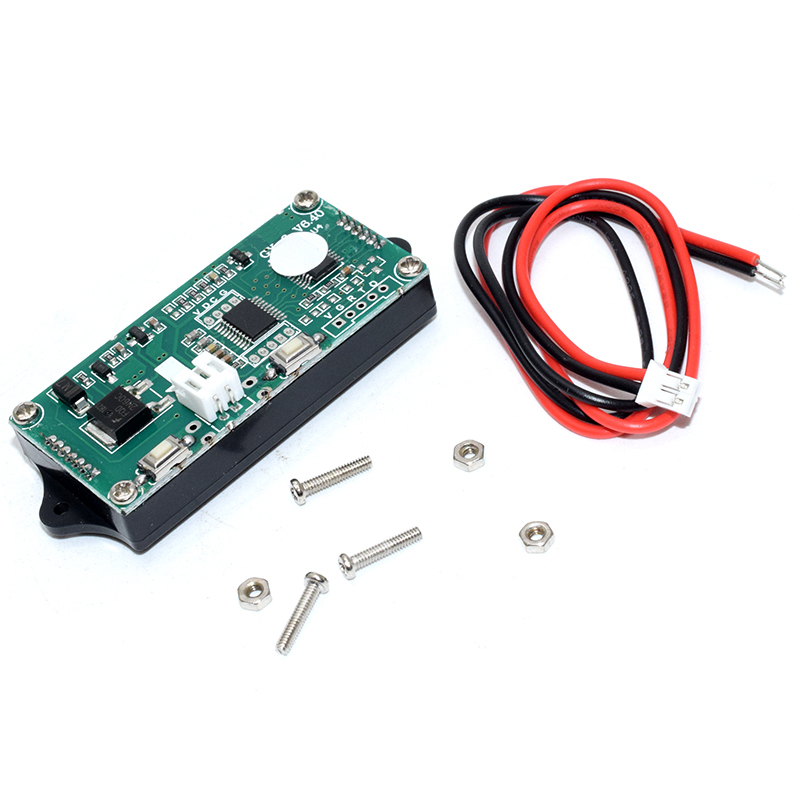

Installation method: open a rectangular hole and two fixing screw holes on the equipment to be installed, place the display inside the equipment panel, install it from the inside to the front of the equipment panel, only expose the display area of the display, and then fix it with screws from the front of the equipment panel. (equipped with 2 screws and 2 nuts)
