XH-W1209 Plastic Case (Only Case)

Product Features
DC 12V mini digital thermostat supports cold, thermal control and temperature measurement (-58? -24?), Work only consumes 65mA
Equipped with 3 red LED display modules, touch buttons and screw terminals make it easy for users to set up and control modules 4 LED display modules, touch buttons and screw terminals make it easy to set up and control Module comes with 4 digital LED display modules , Touch buttons and screw terminals allow users to easily set up and control the module

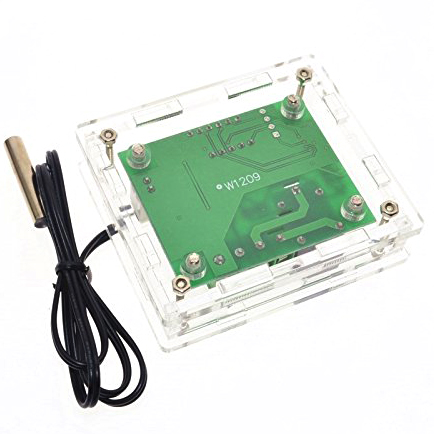

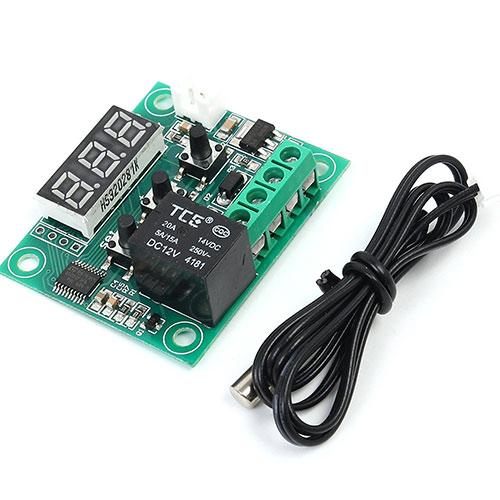

Equipped with acrlyci case and 2-meter long waterproof NTC temperature sensor probe
Operating voltage; DC 12V, module size: 48X40mm / 1.89X1.57 inches (L * W)
product description

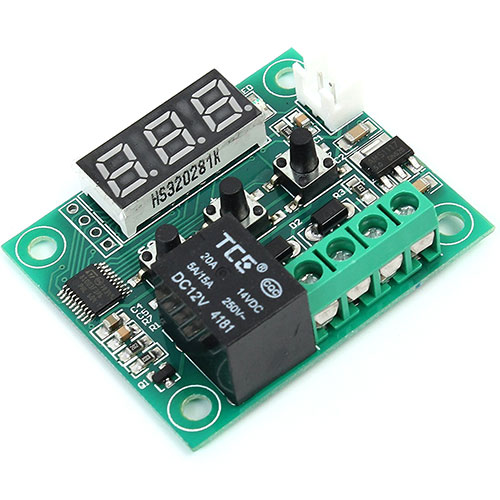

This mini DC 12V digital thermostat supports both cold / hot temperature control and temperature measurement (-58 ° F to 230 ° F) with only 65mA of operation. The temperature controller comes with a 3-position red LED display module, touch buttons and screw terminals, allowing users to easily set up and control modules with power memory. On-board DC 12V single-channel relay control power on / off the ideal choice of DIY temperature control system.

Product Specifications:
Working voltage: DC12V
Working current: <65mA
Static CURENT (relay does not work): <35 mA
Temperature measurement range: -30 ℃ -120 ℃ / -22 ℉ -248 ℉
Operating temperature: -50 ℃ -110 ℃ / - 58 ℉ -230 ℉
Measurement accuracy: 0.1
Clearance accuracy: 0.1?
Exchangeable loads: AC 250V DC 30V 10A (without port), AC 125V DC 28V 10A (NC port)
Sensor probe length: 2m / 78.74 inches
Module Size: 48X40mm / 1.89X1.57 inches (L * W * H)
Refresh rate: 0.1 s
