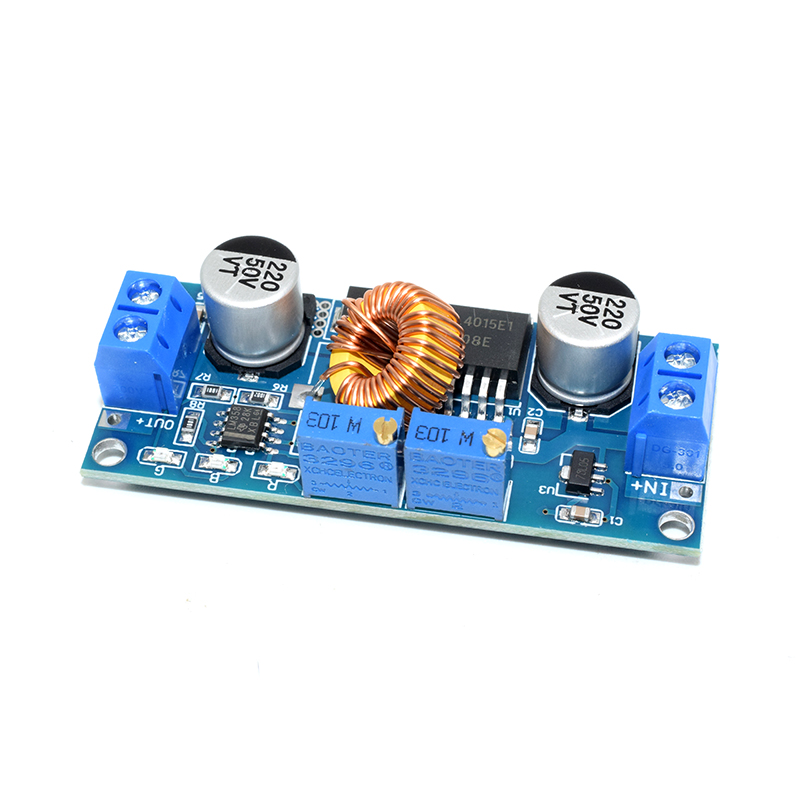

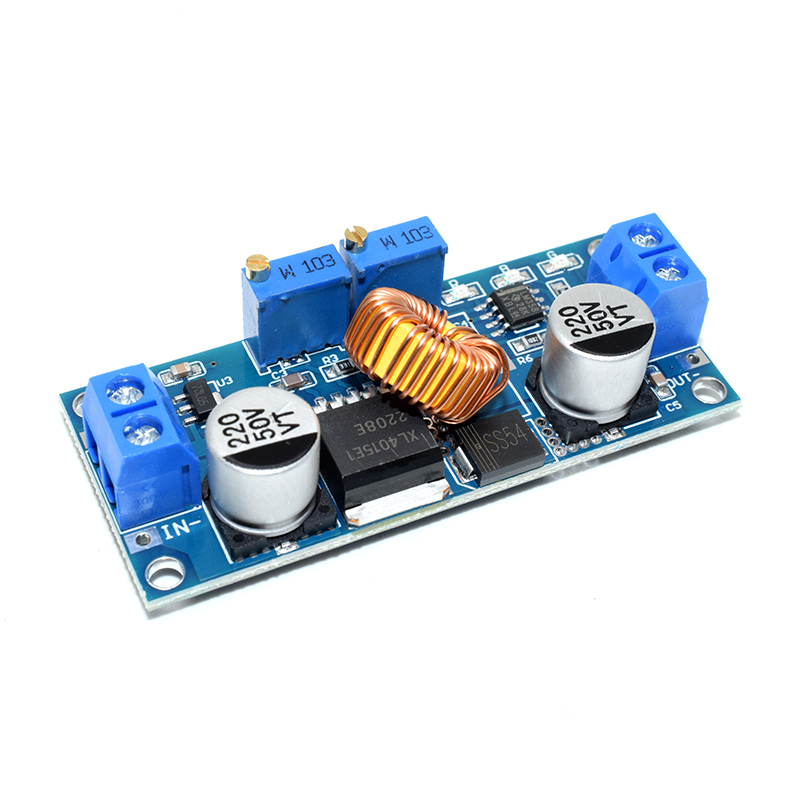

Module Features: 5A Power, High Efficiency, Low Power LED and Radiator Ripple! ? Module performance and features: Module performance: Non-isolated buck module (BUCK) Input voltage: 4-38V (input voltage try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output current: 0-5A, it is recommended to use in 4.5A. Output power: 75W recommended, more than 50W Please add heat sink. Operating temperature: -40 to +85 degrees Working frequency: 180KHz Conversion efficiency: up to 96% (efficiency and input and output voltage, current, pressure-related) Load Regulation: S (I) ≤0.8% Voltage regulation rate S) ≤0.8% Power Indicator: Yes Short circuit protection: yes (limit current 8A) Over-temperature protection: (automatically cut off the output after overheating) Input Reverse Protection: None (If necessary, input the battery string into the high current diode) Installation: 2 3mm screws Connection: Soldering, V-IN is input, V -OUT is output Module Size: 54mm X23mm X18mm (L * W * H)
