Product features
Working voltage DC 12V, with reverse polarity protection
Operating Current: Standby 11-13 MA, 1 relay
Eight modes of operation: Non-locking (Momentary ), self-locking (Toggle), inter-locking(Latch), 5/20/60/120/250-second delay
The default control command is 1/2/3/4
Product description
Specifications:

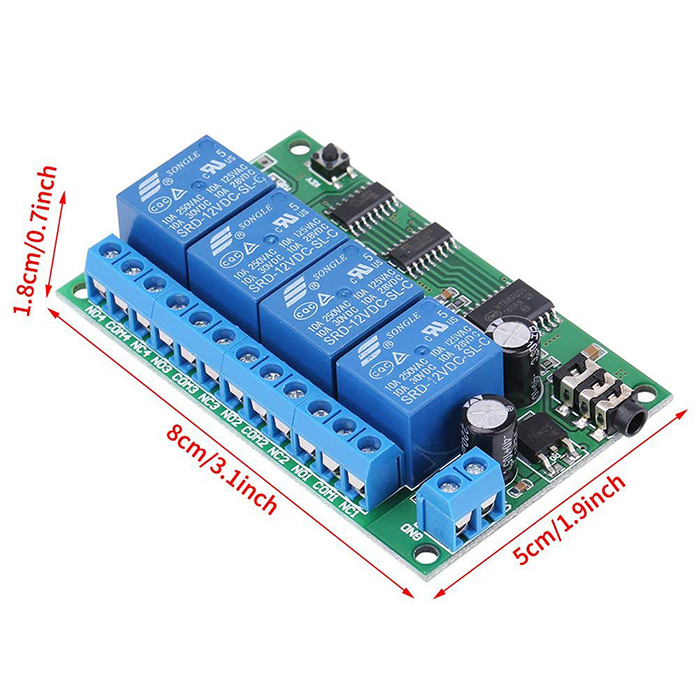

Size: as the picture
Weight: 72g
Maximum load: 10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC
